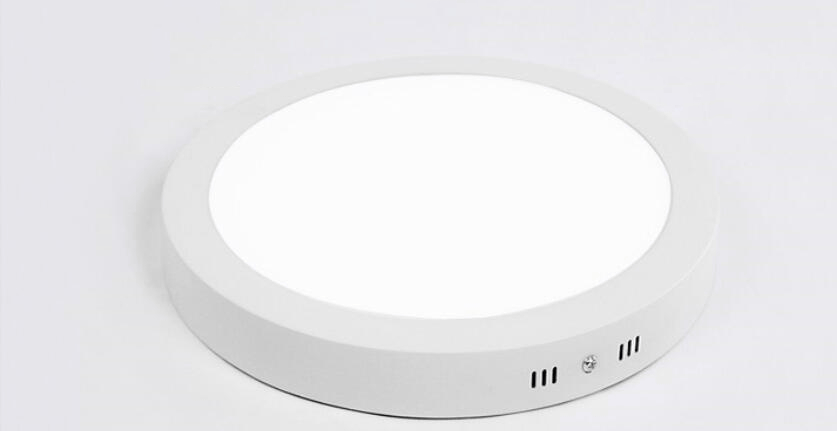

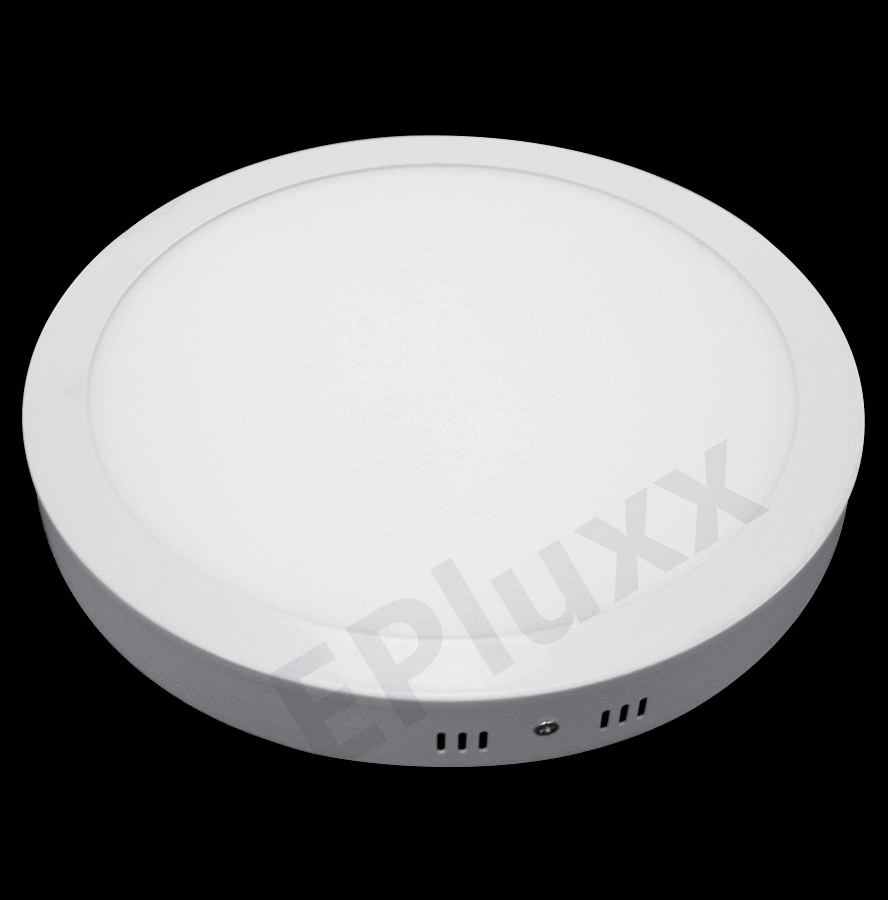

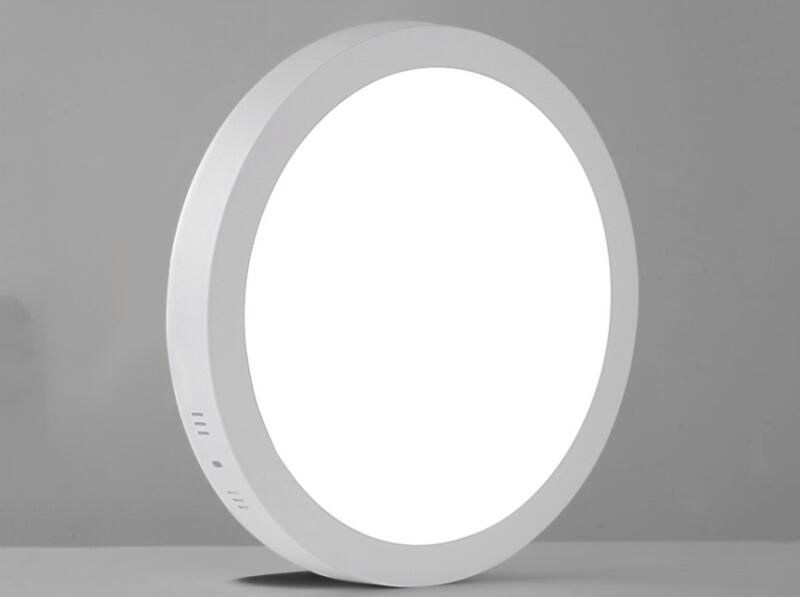

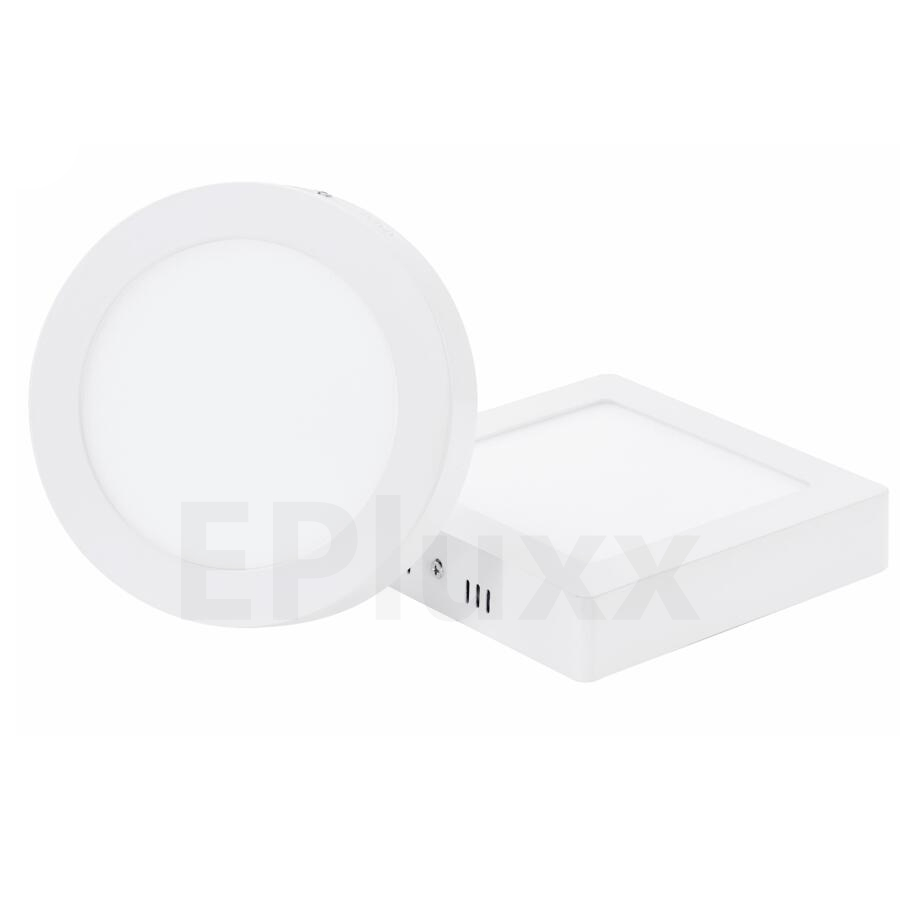

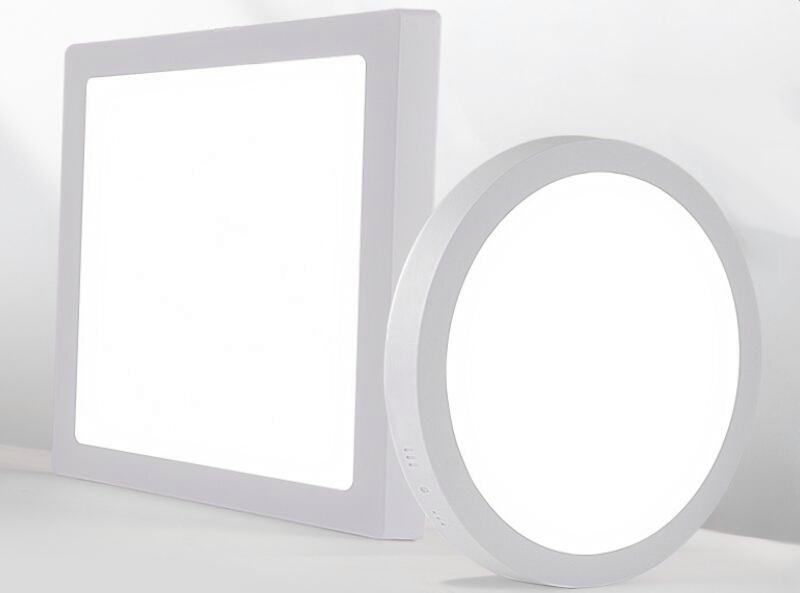

Surface Mounted LED Panel

 Tips: Click to enlarge the picture

Specification

ItemDS-CL-6W-R39DS-CL-12W-R39DS-CL-18W-R39DS-CL-24W-R39
Power6W12W18W24W
Luminous Flux510lm1100lm1650lm2150lm
DimensionD120*40mmD170*40mmD225*40mmD300*40mm
LED BrandEpistar 2835 LEDEpistar 2835 LEDEpistar 2835 LEDEpistar 2835 LED
LED QTY30pcs SMD60pcs SMD90pcs SMD120pcs SMD
IP RatingIP44IP44IP44IP44
Beam Angle120°120°120°120°
Input VoltageAC100-240VAC100-240VAC100-240VAC100-240V
EdgingWhiteWhiteWhiteWhite
Frequency50/60Hz50/60Hz50/60Hz50/60Hz
Light Transmittance90%90%90%90%
CRI>80Ra>80Ra>80Ra>80Ra
Color Temperature2800-6500K optional2800-6500K optional2800-6500K optional2800-6500K optional
PF>0.9>0.9>0.9>0.9
MaterialAluminum+PMMA CoverAluminum+PMMA CoverAluminum+PMMA CoverAluminum+PMMA Cover
Lifespan50,000hours50,000hours50,000hours50,000hours
Working Temperature-40℃-+40℃-40℃-+40℃-40℃-+40℃-40℃-+40℃
CertificateCE, RoHSCE, RoHSCE, RoHSCE, RoHS


______ _____________________________________________________________________________

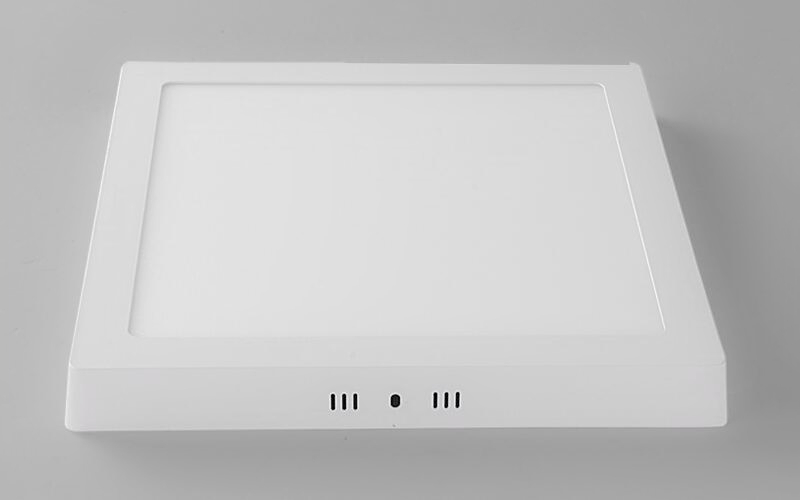

ItemDS-CL-6W-S39DS-CL-12W-S39DS-CL-18W-S39DS-CL-24W-S39
Power6W12W18W24W
Luminous Flux510lm1100lm1650lm2150lm
Dimension120*120*40mm170*170*40mm225*225*40mm300*300*40mm
LED BrandEpistar 2835 LEDEpistar 2835 LEDEpistar 2835 LEDEpistar 2835 LED
LED QTY30pcs SMD60pcs SMD90pcs SMD120pcs SMD
IP RatingIP44IP44IP44IP44
Beam Angle120°120°120°120°
Input VoltageAC100-240VAC100-240VAC100-240VAC100-240V
EdgingWhiteWhiteWhiteWhite
Frequency50/60Hz50/60Hz50/60Hz50/60Hz
Light Transmittance90%90%90%90%
CRI>80Ra>80Ra>80Ra>80Ra
Color Temperature2800-6500K optional2800-6500K optional2800-6500K optional2800-6500K optional
PF>0.9>0.9>0.9>0.9
MaterialAluminum+PMMA CoverAluminum+PMMA CoverAluminum+PMMA CoverAluminum+PMMA Cover
Lifespan50,000hours50,000hours50,000hours50,000hours
Working Temperature-40℃-+40℃-40℃-+40℃-40℃-+40℃-40℃-+40℃
CertificateCE, RoHSCE, RoHSCE, RoHSCE, RoHS

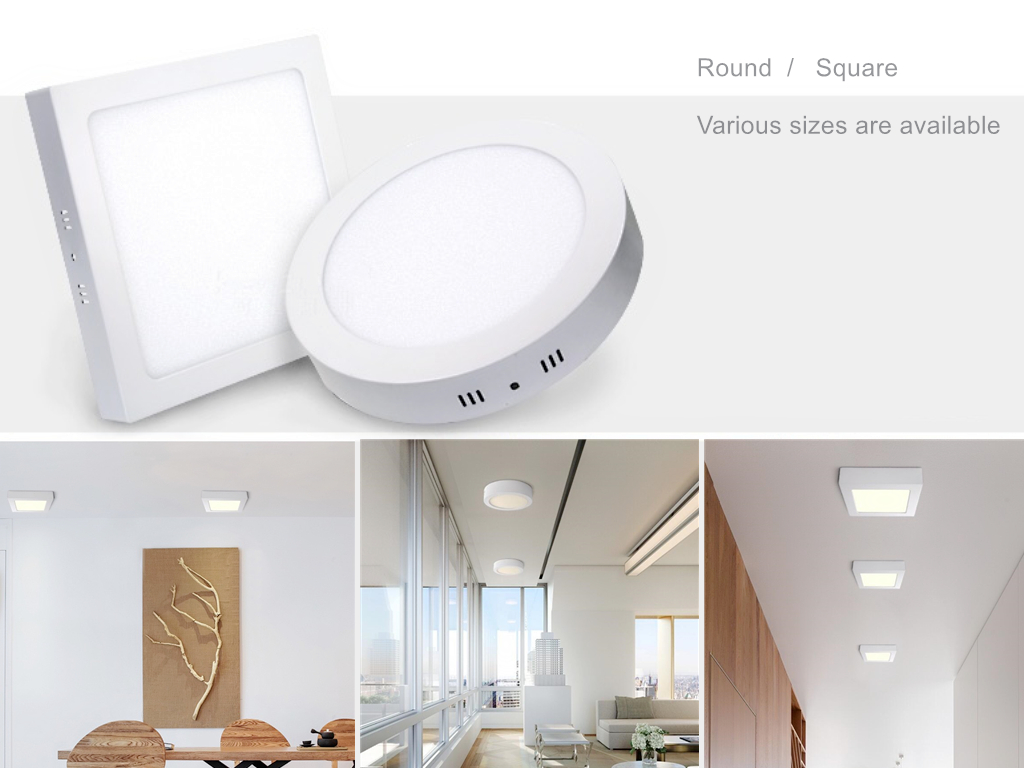

                       Surface mounting LED panel light
No need to cut a hole in the ceiling
Easy installation

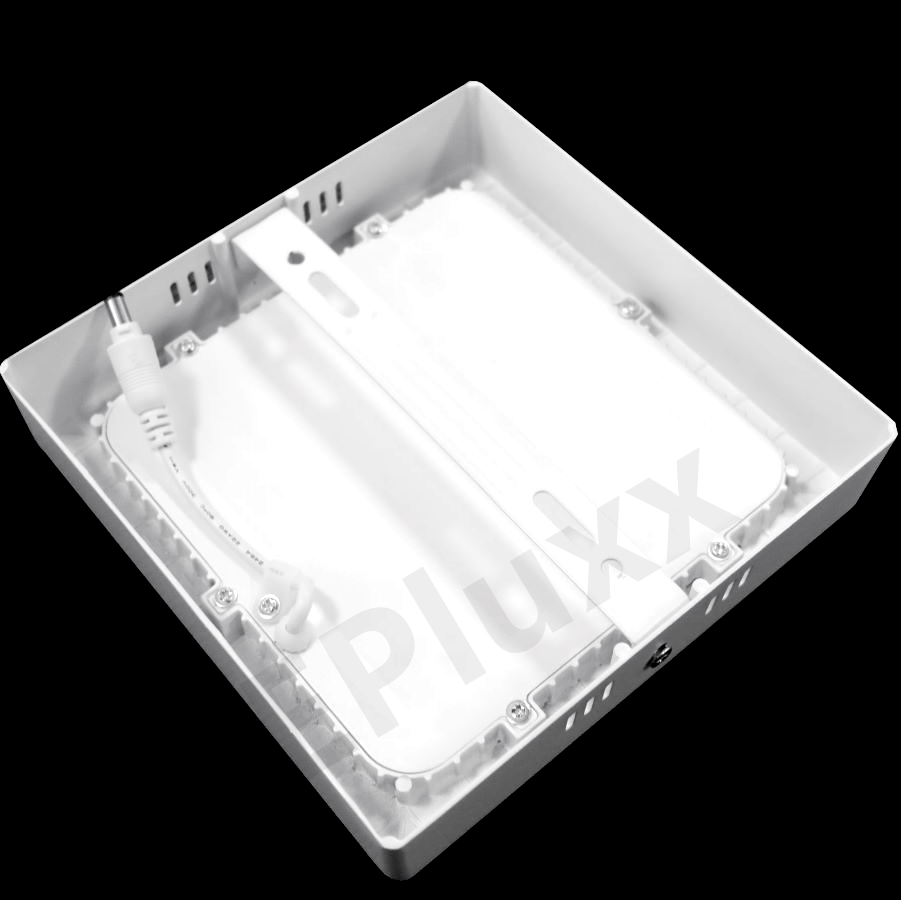

                              Aluminum Lamp Body
High quality aluminum lamp body
Solid   Not easy to deform
Anticorrosion and antirust
Not easy to scratch

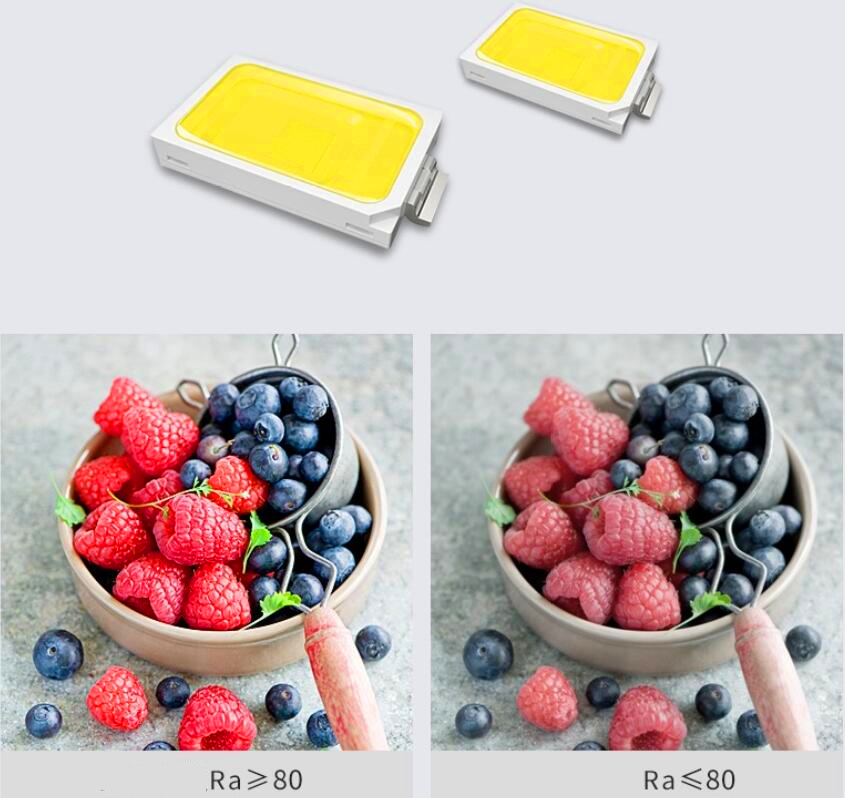

                                          High Color Rendering Index
CRI>80Ra
Restore the real world
Effectively protect eyesight



                                                                                PMMA Cover

High quality acrylic cover
High transmittance
High temperature resistance
The light is soft and not dazzling

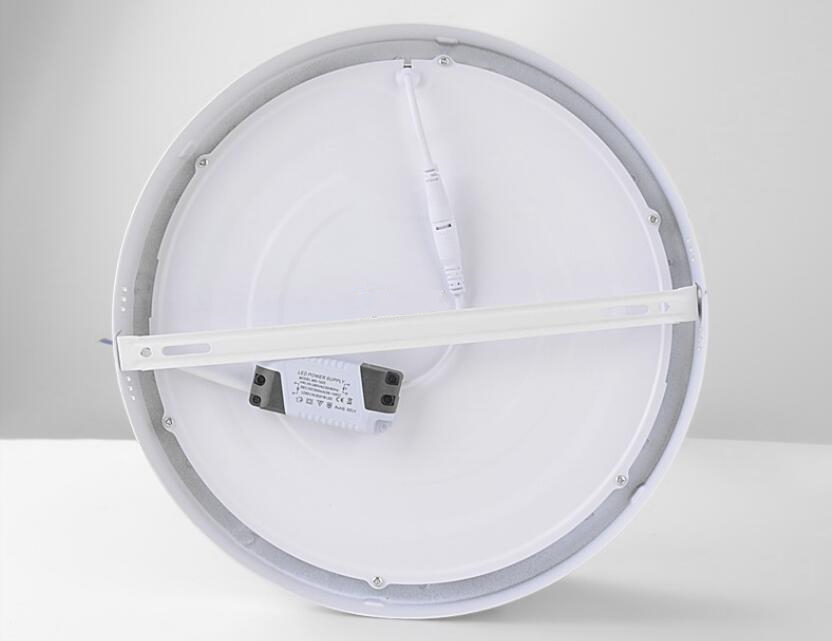

                                                                   CE Approved LED Driver

Adopt imported intelligent constant current IC control circuit,
Instant start without delay
With overload and undervoltage protection
The quality is stable and reliable
Other brands power supply are available

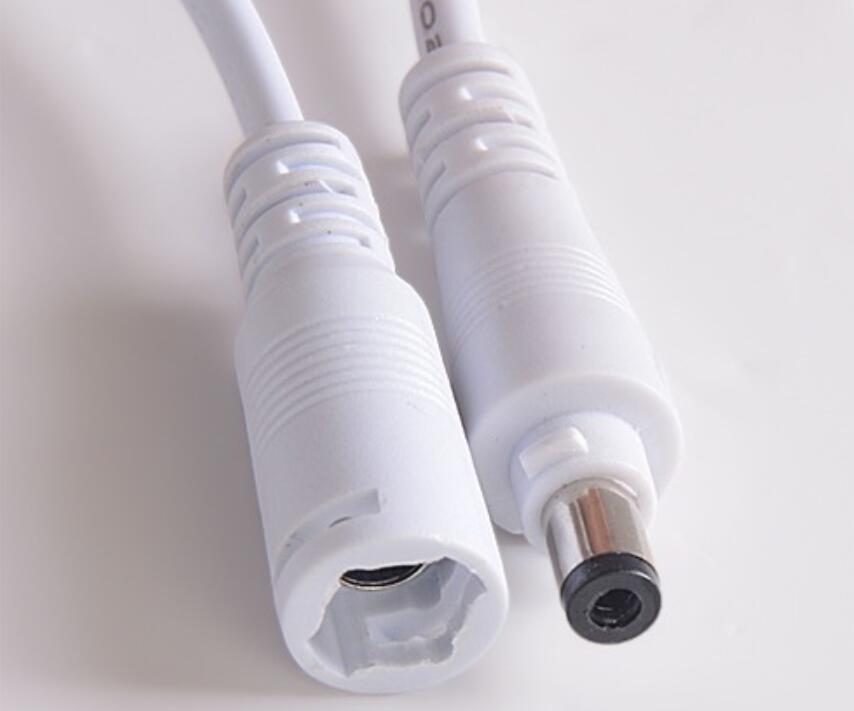

                           DC Connector
Safe and durable

Anti loosening




                                Dimmable
Various dimming methods are available
Triac dimm, 0-10V dimm, Dali...





Features

1, Use the high quality Epistar 2835 LED, energy Saving. Saving 60%-80% electricity cost to traditional Panels.
2, High quality aluminum material, professional thermal management good heat sink to help lamp keep cool and long lifespan.
3, High efficiency and power factor constant current LED driver, PF>0.9, work stable, lifespan is up to 50,000 hours.
4, Eco-friendly, NO UV or IR radiation, no radiation, no flicker, no interference, lead or mercury, or other hazardous substances.

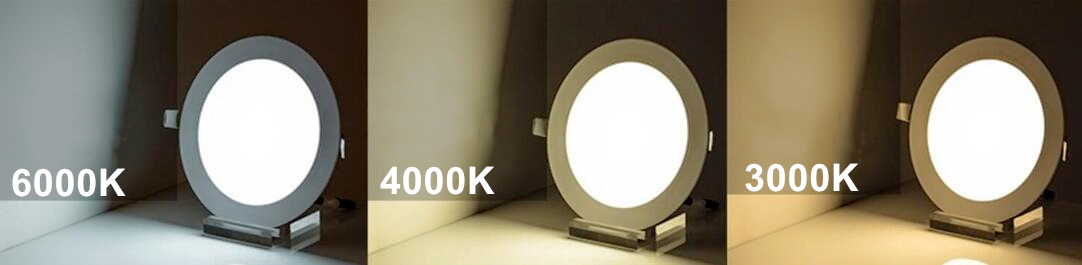

5, Many different color temperature for customer to choose.
6, Exquisite small appearance. Easy to install with mounting brackets.
7, CE and RoHS approved, 3years warranty.

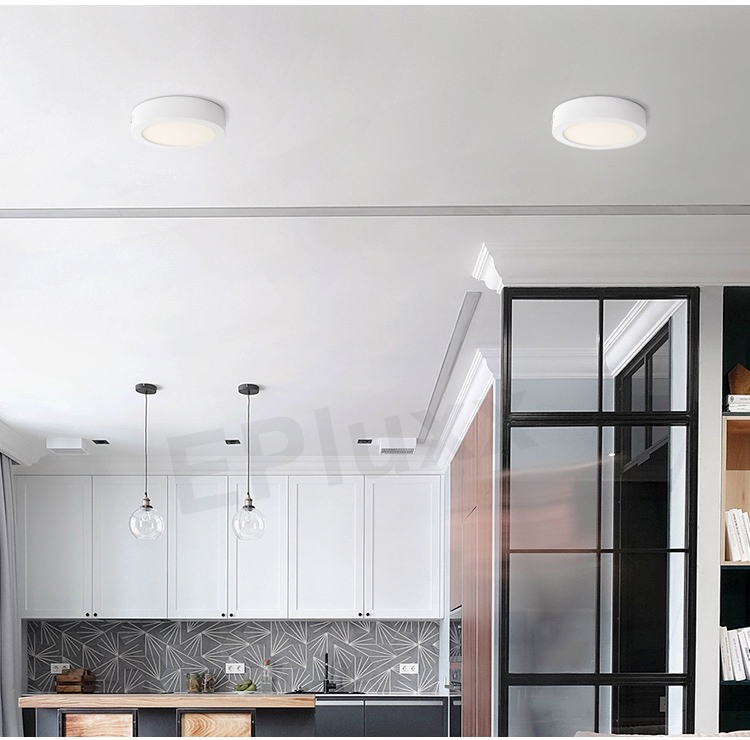

Application

Hotels
Hospitals
Commercial complexes
Meeting rooms
Exhibition halls
Factories and offices
Residential/Institution buildings
Schools
Salon, Bar, Taproom, and widely used in the romantic place.

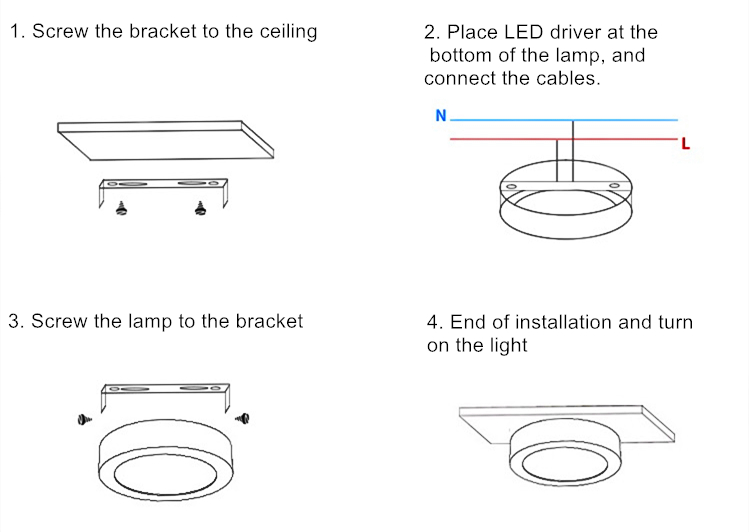

Installation
