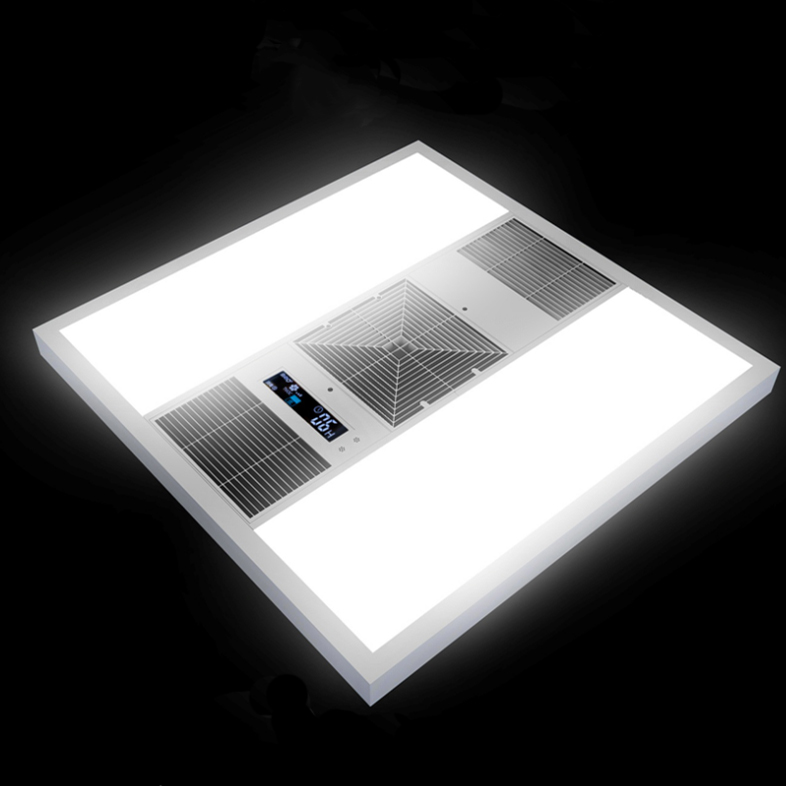

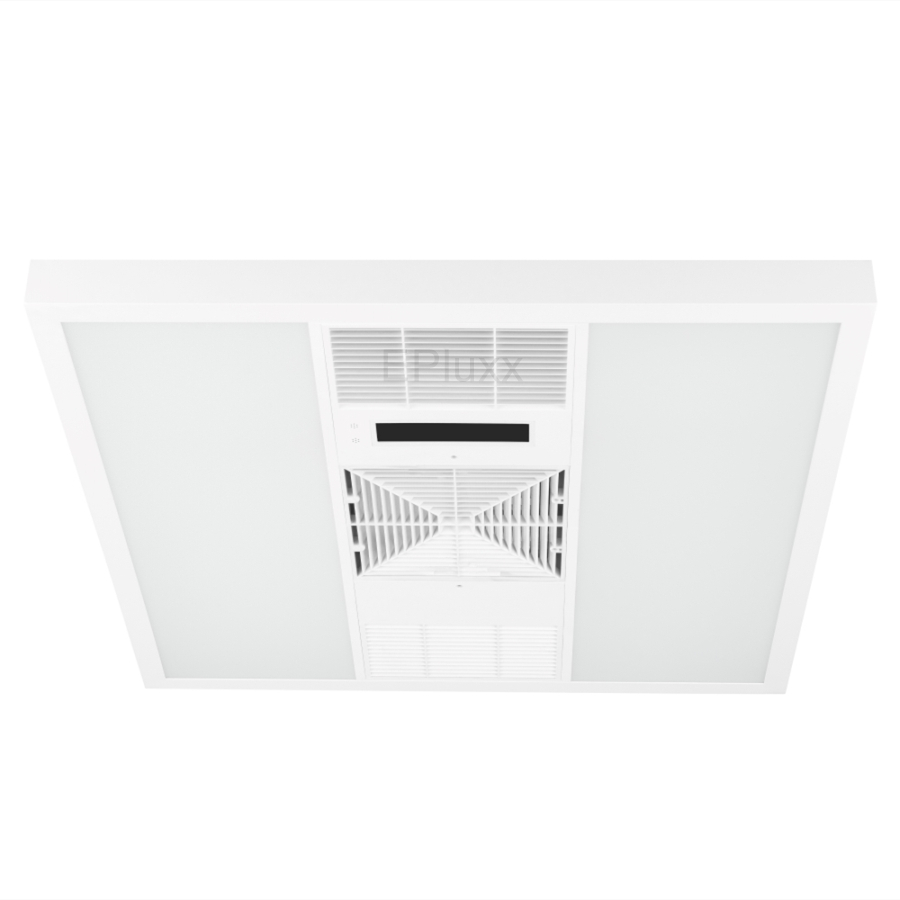

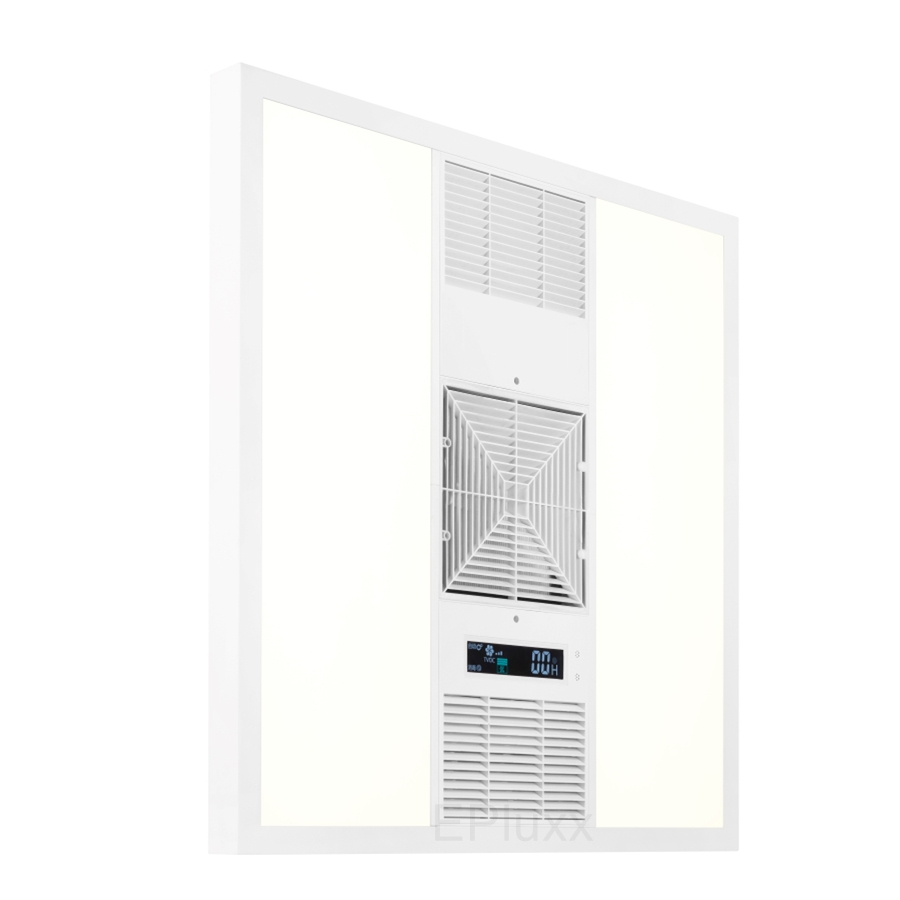

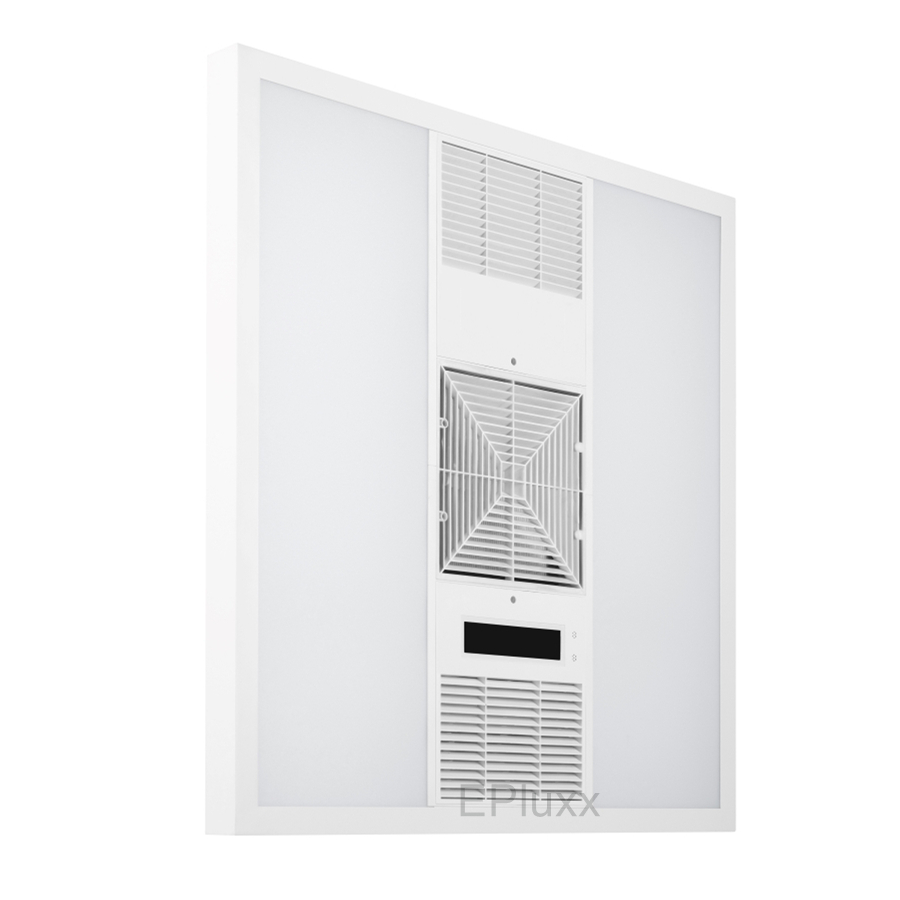

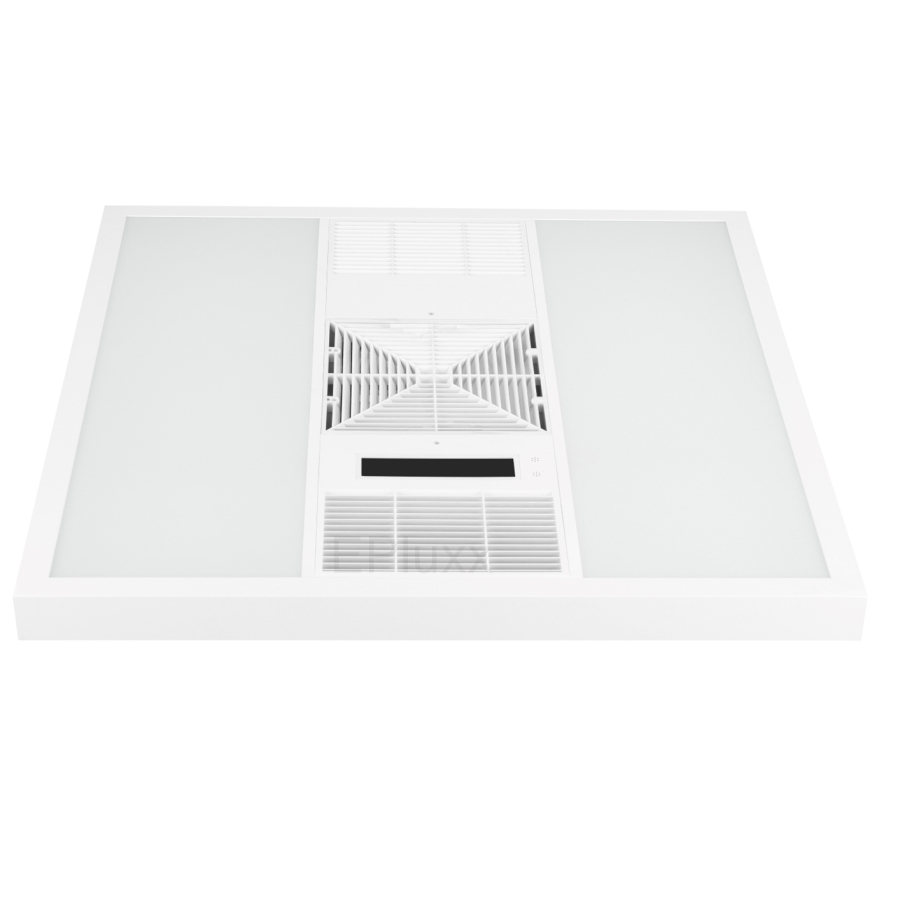

Intelligent Sterilization LED Panel

 Tips: Click to enlarge the picture

                                  DS-CL-0606-SPL

Specification


Total Power: 60W
UVA Source 8pcs*1.5W  365-370nm
UVA Single Radiation Flux                     0.8W
PhotocatalystTiO2 Ceramic
Lighting Power: 36W
Luminous Flux: 3000Lm
Centrifugal Fan12W  (Third gear adjustment)
CADR90m³/h
Frame Color: White Aluminum frame
Input Voltage:  AC100-240V
Frequency:50/60Hz

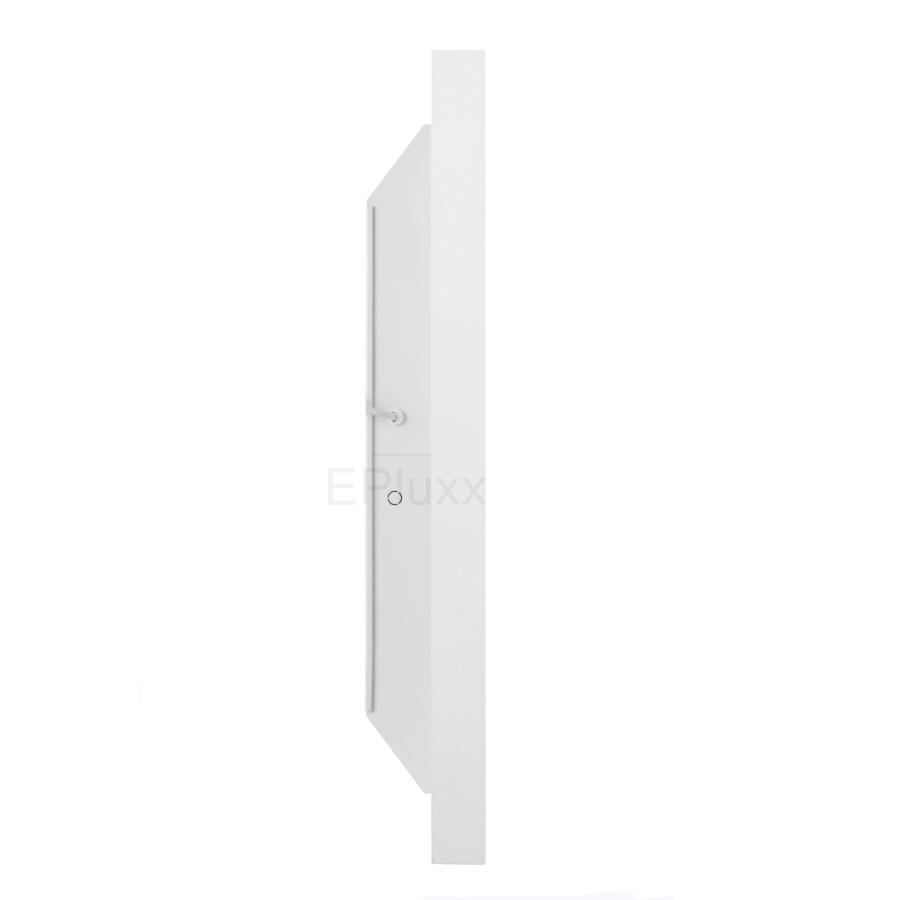

Dimmension: 595*595*96mm                        (Customizable 620*620  600*600 603*603)
Color Temperature: 3000K-6000K adjustable                 (3 gear brightness adjustable)
Working Temperature:    -20~50°C
Filter Screen HEPA 13
Power Factor:>0.9  Flicker Free
CRI: >80Ra
Installation Mode:Embedded, Suspended
Control ModeInfrared remote control
Lifespan>50,000 hours
Warranty: 3 years
LGP Material: PMMA
Certificates: CE RoHS SGS


Test Reports:

Sterilization TypeRemoval Rate
SARS, Corona Virus99.99%
H1N199.99%
Candida albicans 90.90%
Escherichia coli 99.91%
Staphylococcus aureus99.90%
Pseudomonas aeruginosa99.99%
Formaldehyde 99.99%
TVOC99.99%


Features

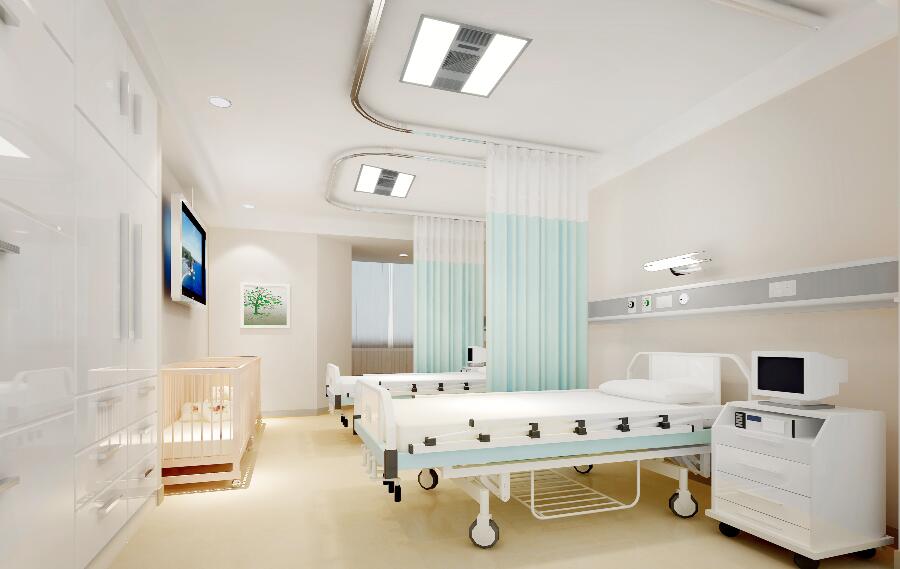

1, It is designed according to the standard of hospital lamps and meets the safety requirements of lamps.
2. Effectively remove viruses, bacteria, PM2.5 and other harmful substances in the air.
3, Using titanium dioxide photocatalyst technology, it can remove bacteria and virus for a long time, can continue in a manned environment and is harmless to human body
4, The filter layer of the air inlet stimulates the activity of the photocatalyst through the irradiation of an appropriate dose of ultraviolet LED, so as to kill and decompose the virus.

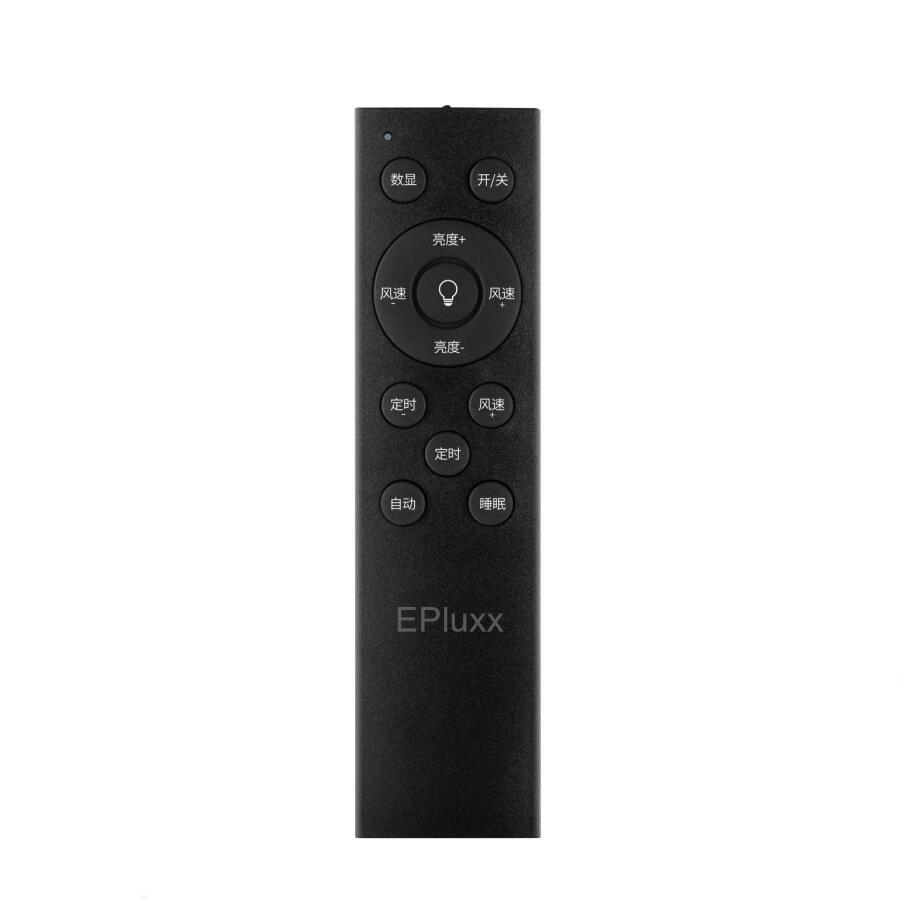

5, Infrared remote control is adopted, which is convenient and fast

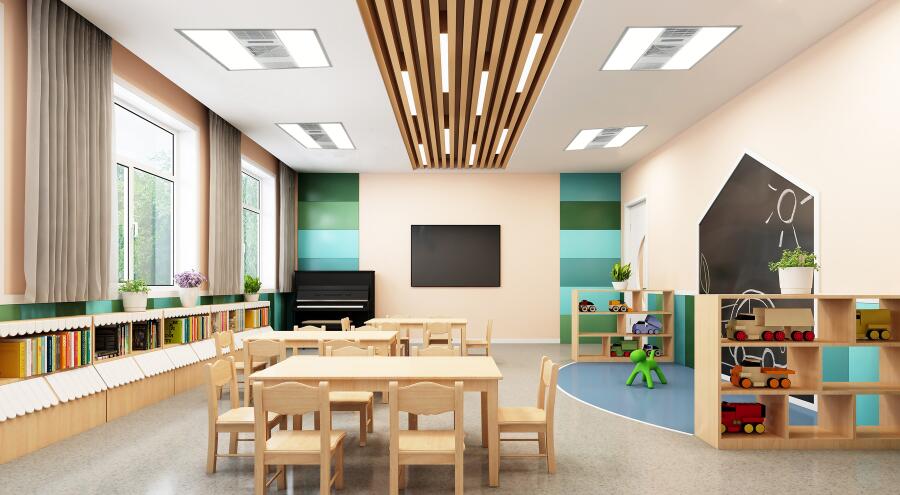

6, Applicable to various places





Function

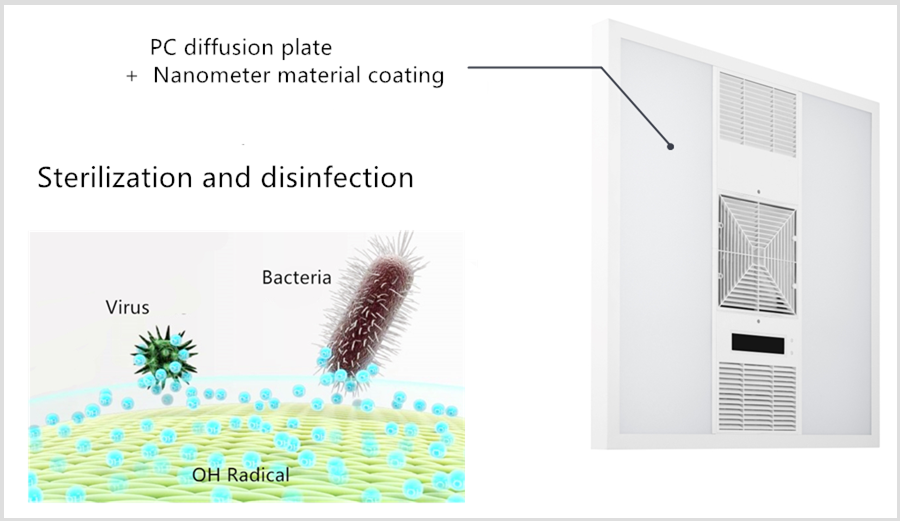

1,  New nano silver+TiO2 materials sprayed on PC cover

24hours effectively decompose and eliminate harmful gases、virus and bacteria

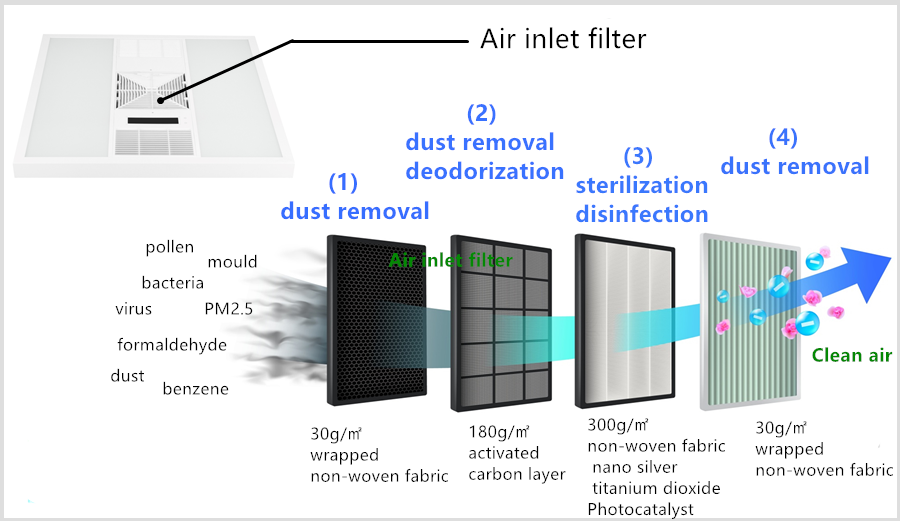

2,  HEPA 13 air inlet filter


4-layer filtration: 99.99% removal rate

dust removal
deodorization
sterilization and disinfection
( H1N1 Influenza,Coronavirus, E. coli, Staphylococcus aureus...)
Toxic gas removal  ( Formaldehyde, Benzene,TVOC, Ammonia...)





3,  Centrifugal fan

Air circulation per hour ≈ 165m³
Work management space ≈ 35㎡

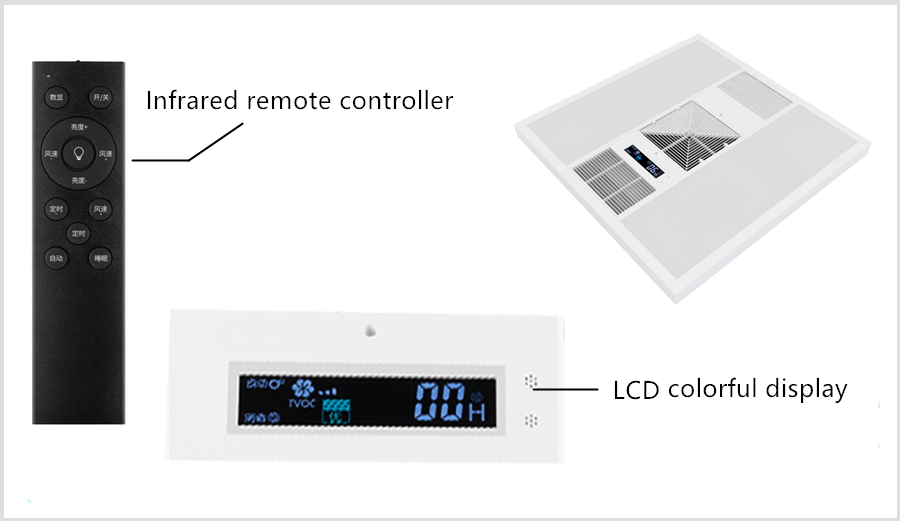

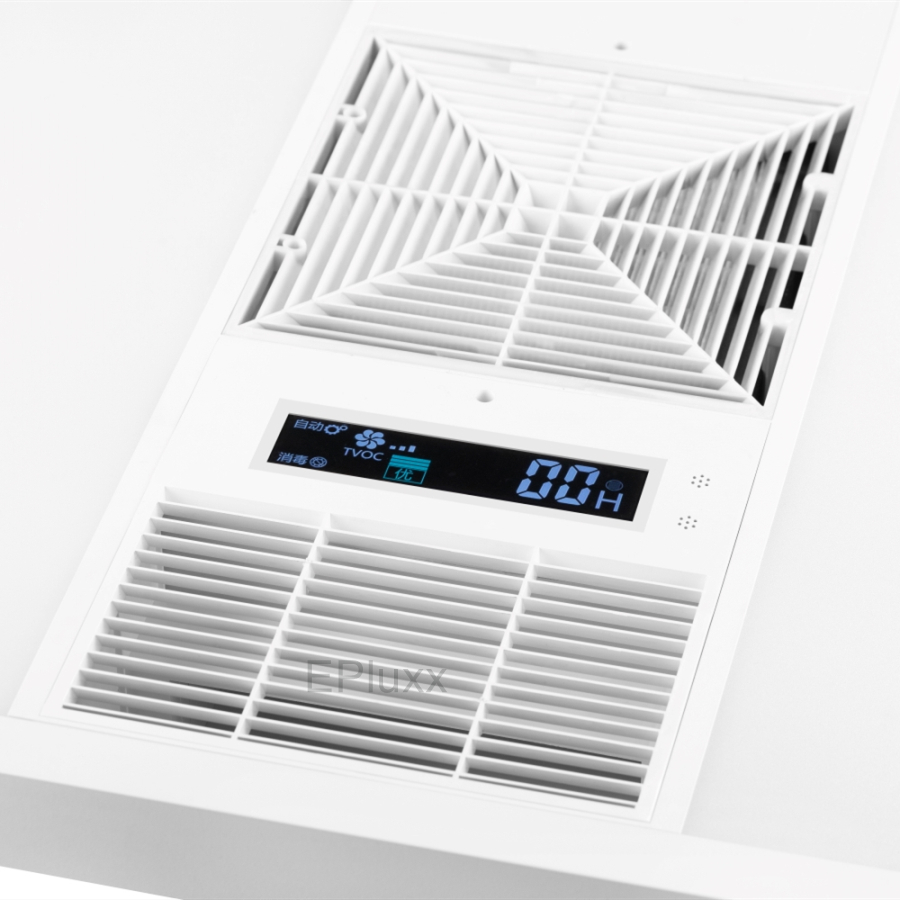

4, LCD colorful display control

(1) Control mode:


Through the infrared remote control, control the switch, mode,  brightness, wind speed, timing and other functions


(2) Two operating modes:



Automatic mode: the centrifugal fan automatically controls the operation according to the air quality.

Manual mode: the infrared remote controller controls the lighting, disinfection and sterilization of lamps.



(3) Timing function
1-12 hours arbitrary setting


(4) LED lighting:
three gear brightness adjustment, color temperature 4000K






Air purification principle

Preliminary filtration: non-woven fabric + activated carbon+HEPA 13
Filter harmful substances, PM2.5 and pollen...

Secondary treatment: UVA LED light
The UV light activates the photocatalyst on the ceramic substrate to realize the disinfection and sterilization function.

Final treatment: photocatalyst disinfection
The photocatalyst fully activated by ultraviolet rays contacts with harmful substances in the air, and finally degrades and eliminates harmful substances.
