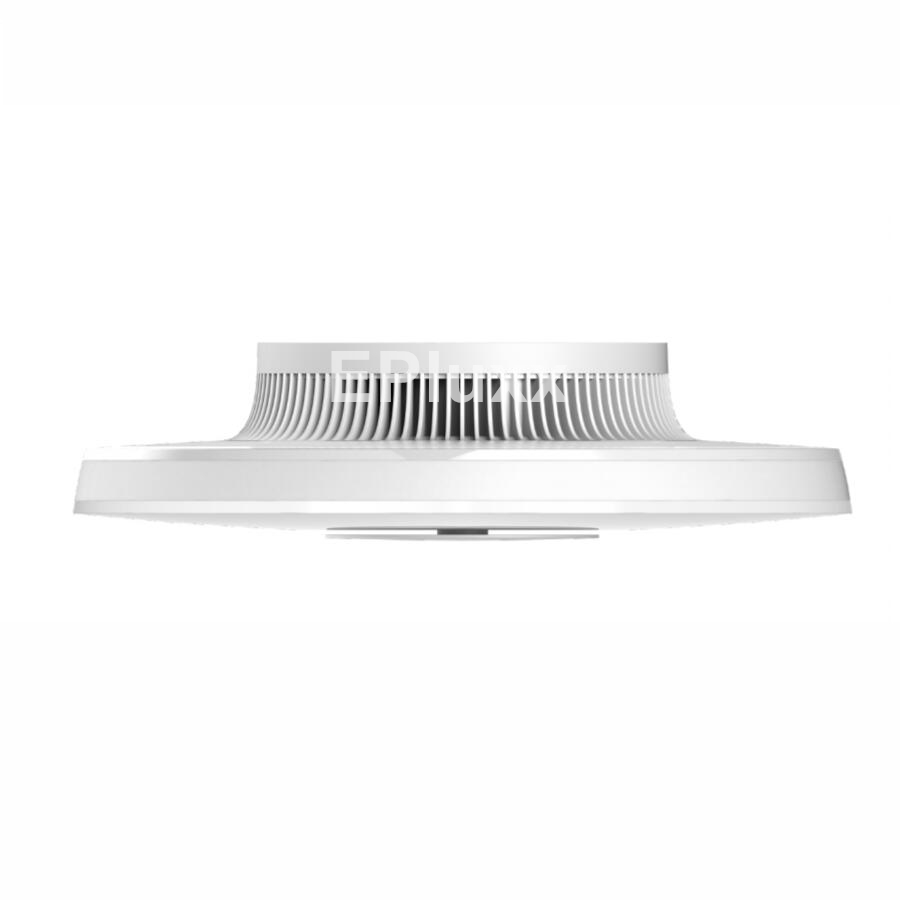

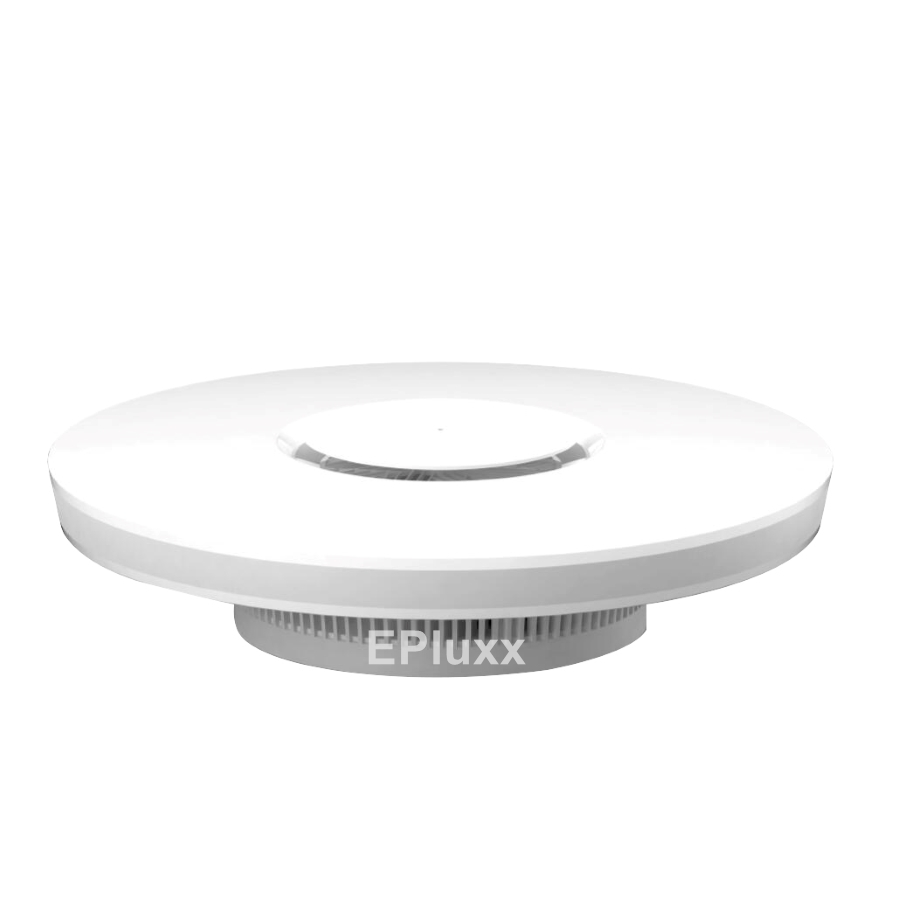

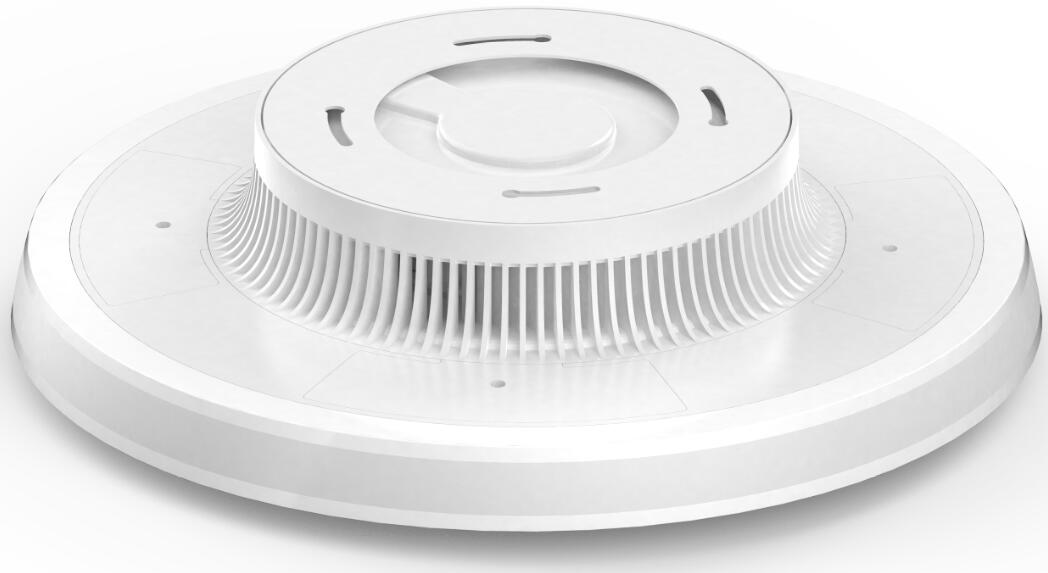

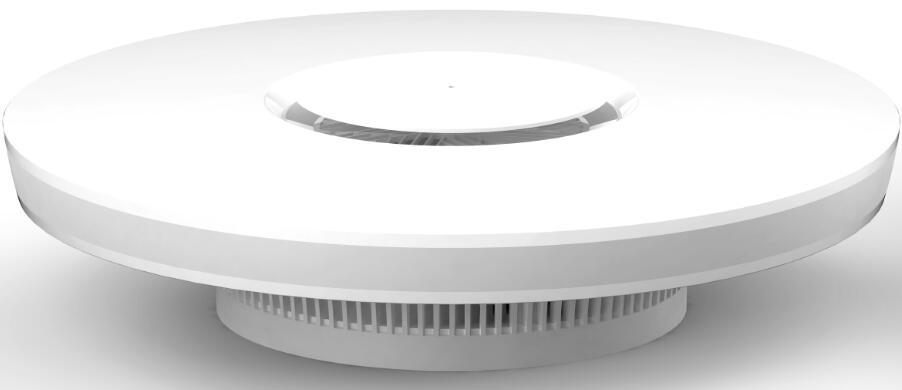

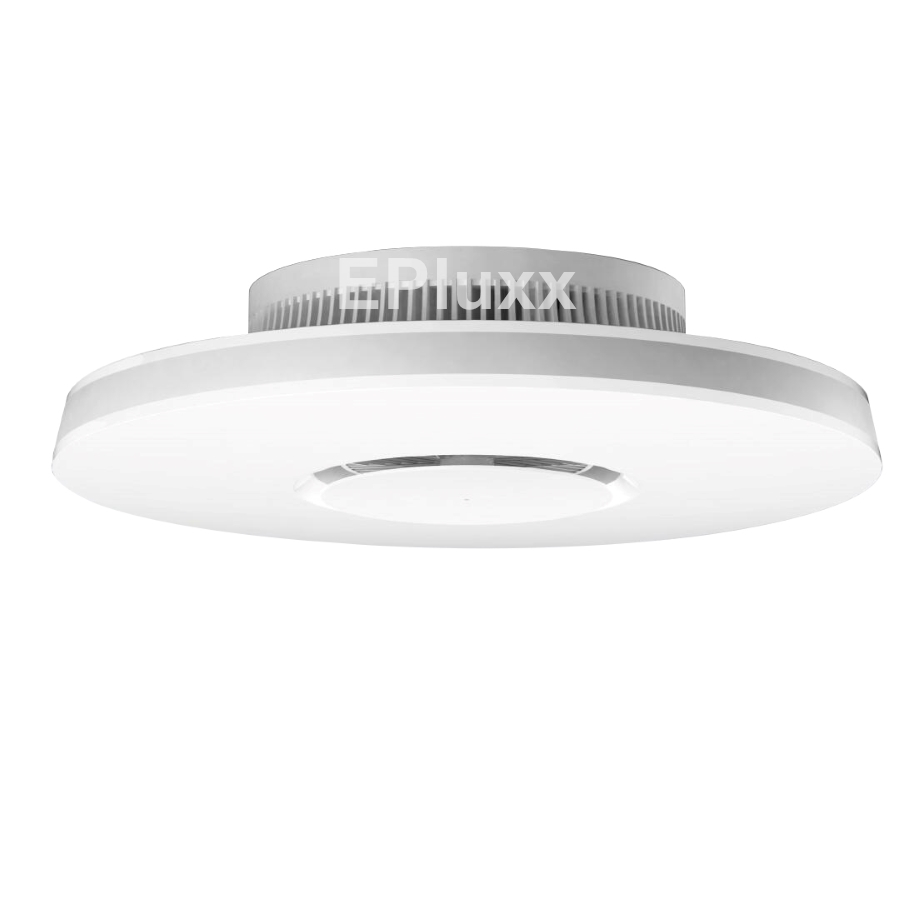

DS-CL-456-MPL-R
(Titanium dioxide + nano silver + filter screen + purple light + centrifugal fan）
1. Sterilization and disinfection
2. Remove formaldehyde, PM2.5 and odor
3. Main lighting
4. Night light
Specification
| Total Power | 68W |
| Luminous Flux: | 3600lm |
| Dimension: | D456*116mm |
| Main LED Light Color Temperature | 2700K 4000K 6500K |
| Purification Capacity | Max 150m³ / Hrs |
| Filter Replacement | Yes |
| Filter Level | H13 （Hepa 13） |
| UGR | <22 |
| Power Factor | >0.9 Flicker free |
| CRI | >80Ra |
| Frame Color | White |
| Input Voltage | AC220V |
| Frequency | 50/60Hz |
| Lifespan | 25,000Hrs |
| Packing | 1pc/ctn |
| Certificates | GB7000.1/IEC60598/IEC61000/IEC61547/ IEC62471/EN62493/EN55015;UL1598C/FCC |
| Module | Rated Power | Output Power | Control Method |
| Main LED Lighting | 36W | 1.8-36W | Stepless color temperature and brightness dimming |
| Small Night Light | 8W | 0.5-8W | Warm light stepless dimming Gradually open and close |
| Violet Light | 6W | 6W | ON / OFF |
| Fan | 24W | 3-12W | Segmented Control 20% 40% 60% |
SARS, Corona Virus removal rate >99.99%

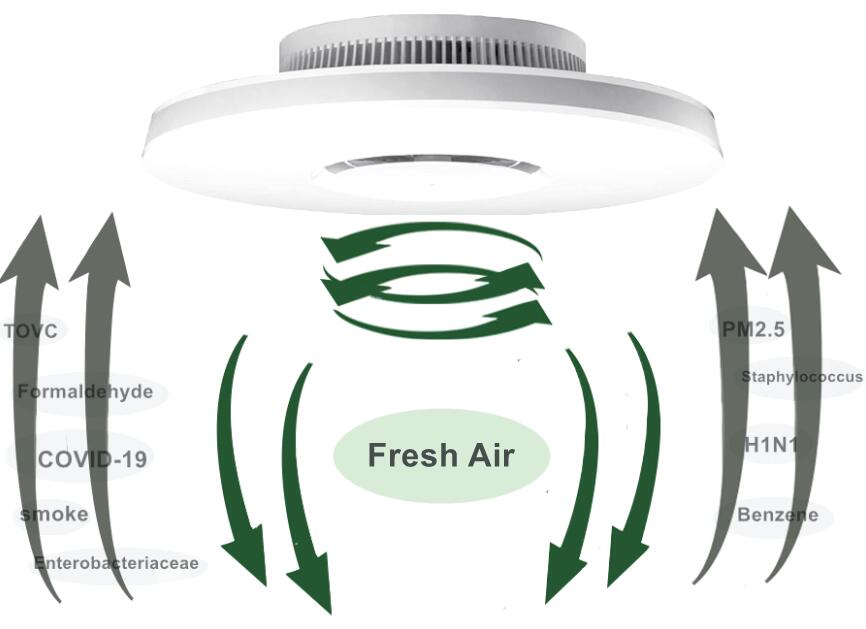

| Function | Principle | Effect |
| Air purification | Titanium oxide + Nano silver + filter + violet light | 1, Effective filtration of particles: Formaldehyde, PM2.5, Benzene, TOVC, smoke, musty... 2, 99.99% remove H1N1, COVID-19 virus, Staphylococcus, Enterobacteriaceae... |
| Main Lighting | High efficiency LED lamp | Non-polar adjustment of light and color |
| Small night light | Warm LED | Back light, soft light |
| Air circulation | Fan | Multi speed regulation,accelerating indoor air circulation |

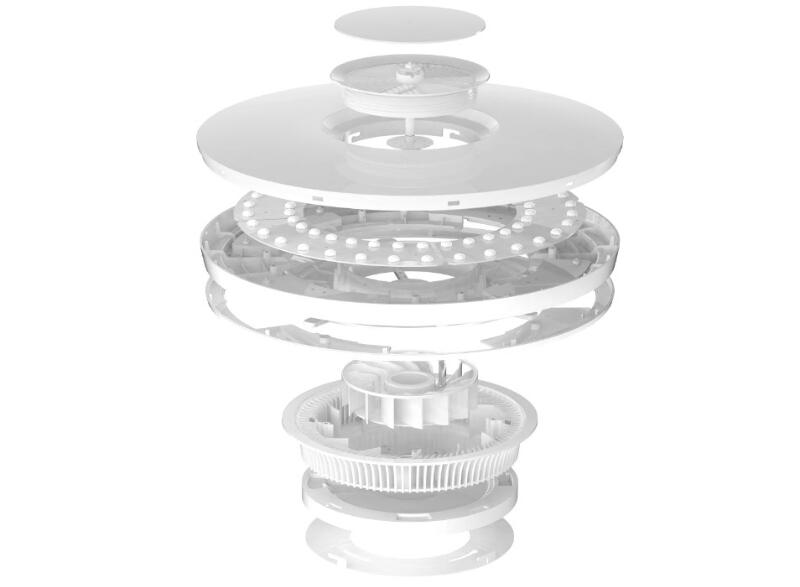

3 kinds of superefficient sterilization and air purification systems
1. Titanium Oxide + Nano Silver
2. Filter Screen + Titanium Oxide
+Nano Silver + Centrifugal Fan
Filter screen: spray titanium oxide and nano silver on the filter screen
Effectively filter aerosol and other particles (formaldehyde, PM2.5, hand smoke, peculiar smell and moldy smell);
Kill H1NI1 influenza virus, COVID-19, Staphylococcus, Escherichia coli and other harmful microorganisms;
Centrifugal fan can effectively promote air flow
3. Violet light + Titanium Oxide
+Centrifugal Fan
when the main lighting is turned off, the combination of purple light + titanium oxide can achieve the air purification effect, through the principle of photocatalyst.
24Hrs air purification
Centrifugal Fan 3-gear speed Regulation
Nighttime: 20% Breeze sleep mode
Super quiet, fresh air, keep a good sleep
Daytime: 40% Moderate wind mode
Effectively improve the effect of air purification
Leaving time: 60% Storm mode
Circulating and purifying indoor air at high speed
