Specification
| Item | DS-0606-36 | DS-0606-48 | DS-0606-54 | DS-6262-40 |
| Power | 36W | 48W | 54W | 40W |
| Lighting Efficency | 100-135lm/w | 100-135lm/w | 100-135lm/w | 100-135lm/w |
| Luminous Flux | 3600-4860lm | 4800-6400lm | 5400-7200lm | 4000-5400lm |
| Dimension | 595*595*8.5mm | 595*595*8.5mm | 595*595*8.5mm | 620*620*8.5mm |
| Installation Tye | Suspending / Embedded / Surface mounted / Buckle | Suspending / Embedded / Surface mounted / Buckle | Suspending / Embedded / Surface mounted / Buckle | Suspending / Embedded / Surface mounted / Buckle |
| LED Chip | Epistar 2835 LED | Epistar 2835 LED | Epistar 2835 LED | Epistar 2835 LED |
| LED QTY | 204pcs SMD | 228pcs SMD | 264pcs SMD | 204pcs SMD |
| Driver | AGT TUV approved driver | AGT TUV approved driver | AGT TUV approved driver | AGT TUV approved driver |
| IP Rating | IP44 | IP44 | IP44 | IP44 |
| Dimmable | DALI, 0-10V, Triac dim, DMX | DALI, 0-10V, Triac dim, DMX | DALI, 0-10V, Triac dim, DMX | DALI, 0-10V, Triac dim, DMX |
| Beam Angle | 120° | 120° | 120° | 120° |
| Input Voltage | AC100-240V | AC100-240V | AC100-240V | AC100-240V |
| Edging | White / Silver | White / Silver | White / Silver | White / Silver |
| Frequency | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Light Transmittance | 90% | 90% | 90% | 90% |
| CRI | 80Ra / 90Ra | 80Ra / 90Ra | 80Ra / 90Ra | 80Ra / 90Ra |
| Anti-Glare | UGR<19 UGR<22 | UGR<19 UGR<22 | UGR<19 UGR<22 | UGR<19 UGR<22 |
| Color Temperature | 2800-6500K optional | 2800-6500K optional | 2800-6500K optional | 2800-6500K optional |
| PF | >0.95 | >0.95 | >0.95 | >0.95 |
| Material | Aluminum+ PMMA | Aluminum+ PMMA | Aluminum+ PMMA | Aluminum+ PMMA |
| Lifespan | 50,000hours | 50,000hours | 50,000hours | 50,000hours |
| Working Temperature | -40℃-+40℃ | -40℃-+40℃ | -40℃-+40℃ | -40℃-+40℃ |
| Certificate | CE, RoHS | CE, RoHS | CE, RoHS | CE, RoHS |
| Warranty | 5 years | 5 years | 5 years | 5 years |

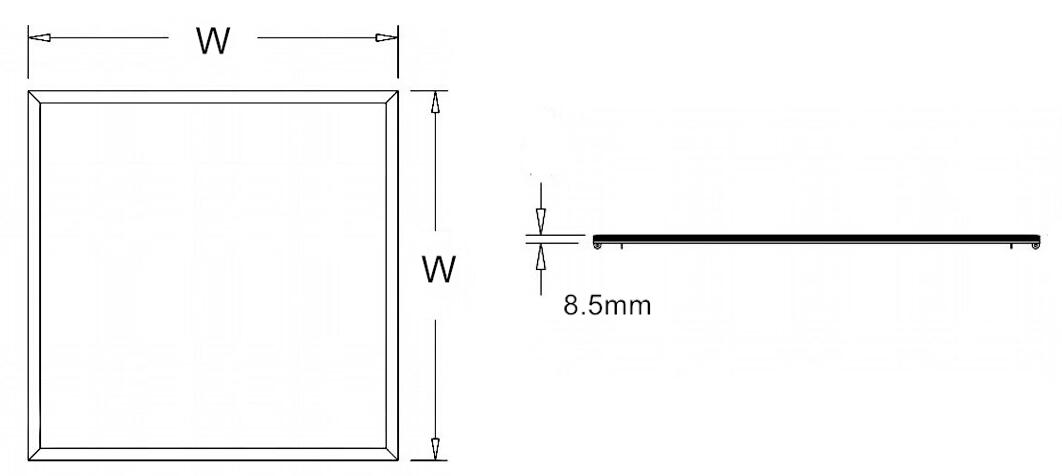

Dimension
| Item | Width | Width | Height |
| DS-0606-36 | 595mm | 595mm | 8.5mm |
| DS-0606-48 | 595mm | 595mm | 8.5mm |
| DS-0606-54 | 595mm | 595mm | 8.5mm |
| DS-6262-40 | 620mm | 620mm | 8.5mm |

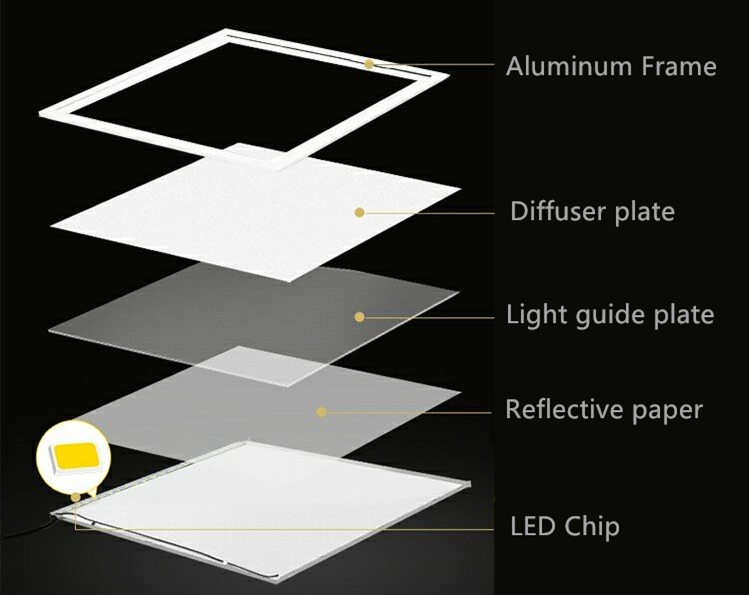

Structure
Features
EPluxx has been committed to the research of high luminous efficiency LED panel light.
EPluxx's super bright 135lm/w LED Panel light saves 60%-80% electricity cost to traditional Panels.
It uses Epistar LED chip, LM-80, TM21, low light decay, to make sure the long lifespan.
High quality TUV certified flicker free LED driver, PF>0.95 stability and safety.
Multiple brands LED driver can be selected. Such as Lifud, Boke, Philips, Osram, Tridonic ...
The Panel light is made of high quality all aluminum frame and PMMA light guide plate.
The Surface of our led panel light is smooth without scratch.
Side light source, led light pass through the light guide plate with high transmittance to form a very uniform and comfortable light.

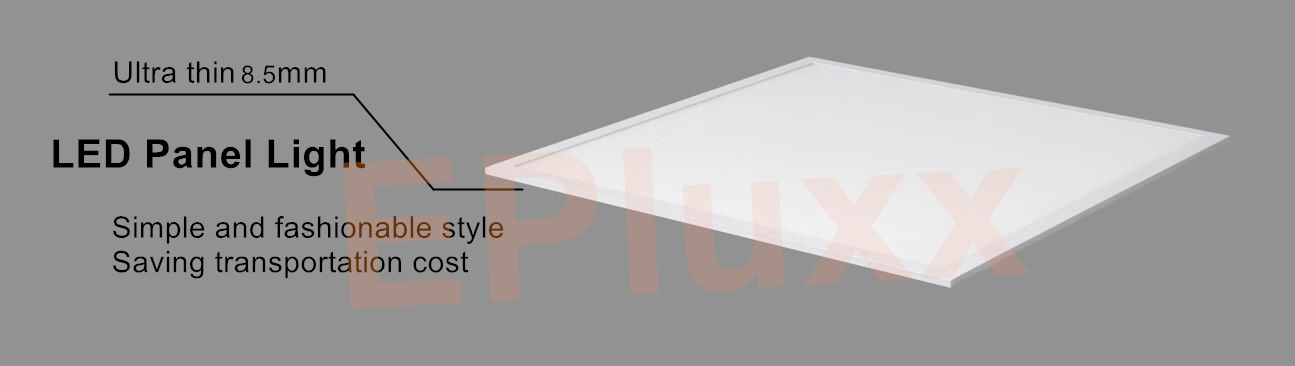

Ultra-thin 8.5 lamp body can better reduce the tansportation cost, easy to installation with mounting brackets or steel string.
No noise, No UV or IR radiation. Save and eco-friendly.

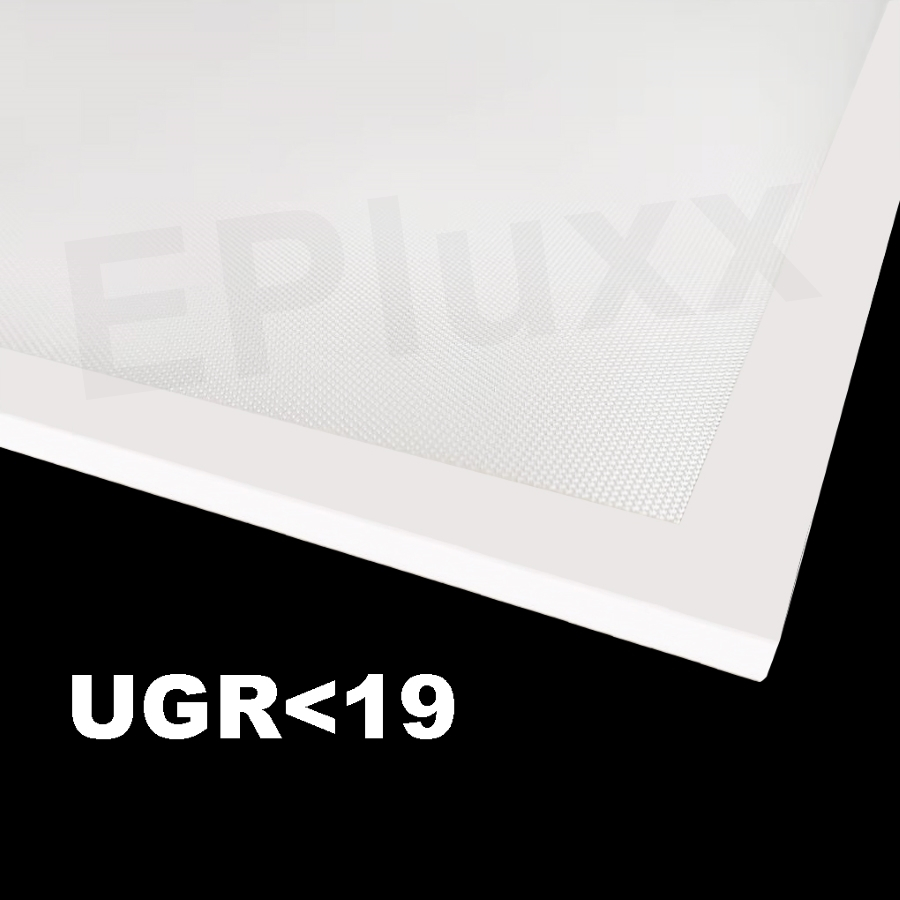

UGR<19 led panel light can be produced，better protection of eyesight.
IP65 waterproof LED panel light can be produced according to customer requirement.
Multiple dimming modes are optional: triac dimmable , 0-10V dimmable, DMX dimmable, Dali dimmable
Long lifespan, 5 years warranty.
Application
Hotels, Hospitals, Commercial complexes, Meeting rooms, Exhibition halls,
Factories, Offices, Buildings, Schools, Indoor gym courts,
Subway stations, Underground passageways

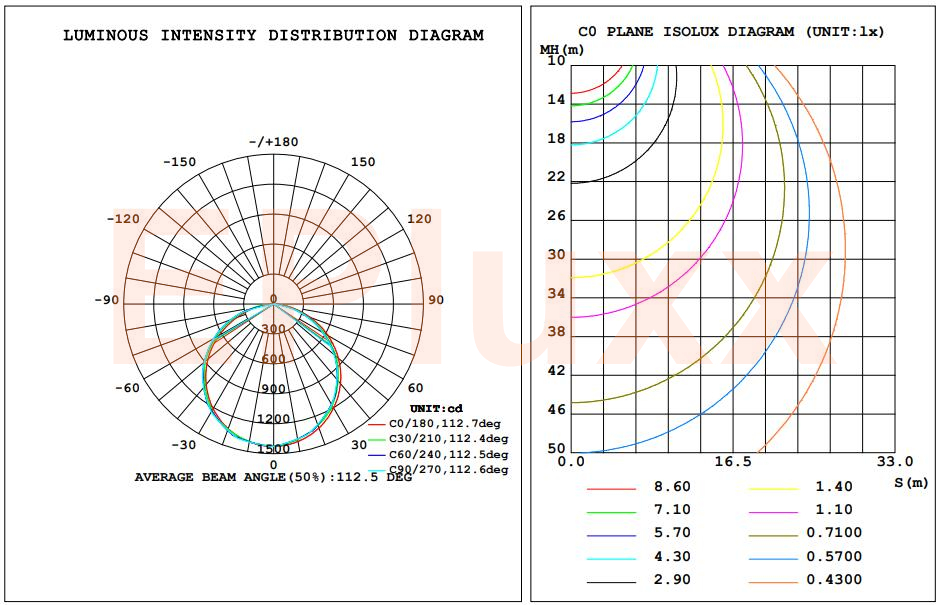

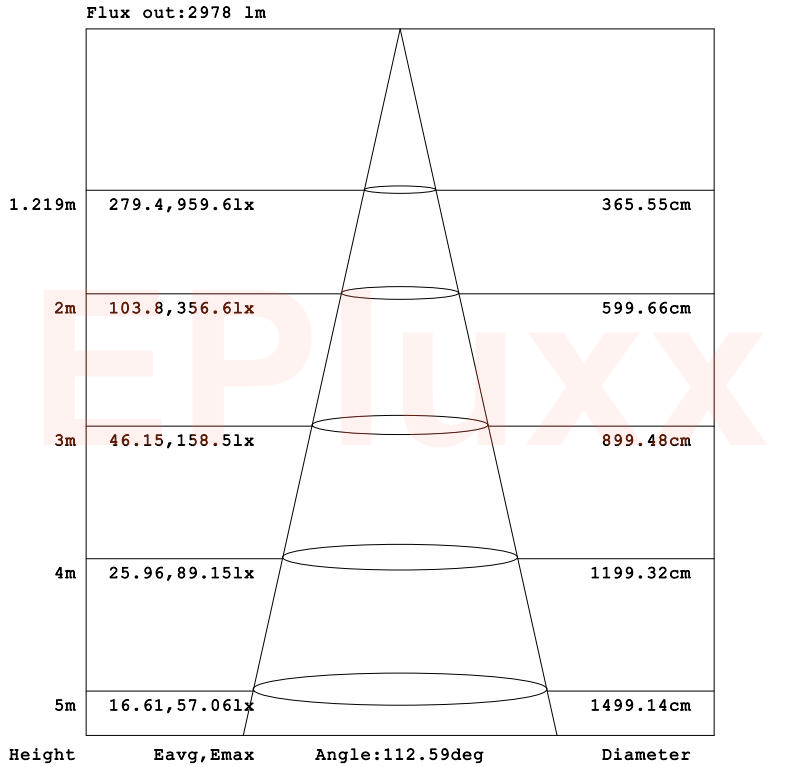

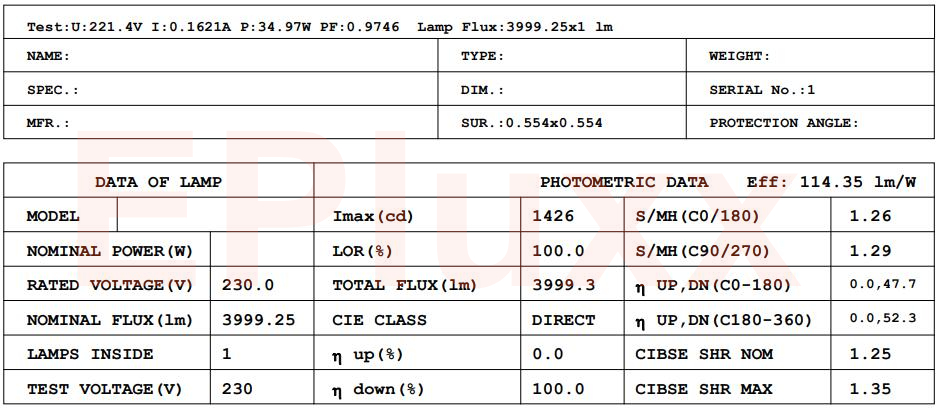

IES Test
36W

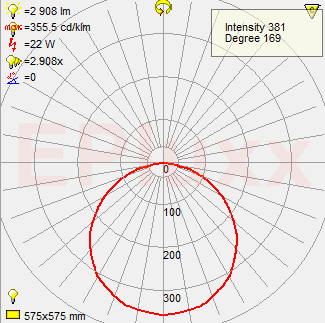

22W
Installation
(1) Embedded
(2) Ceiling Surface Mounted

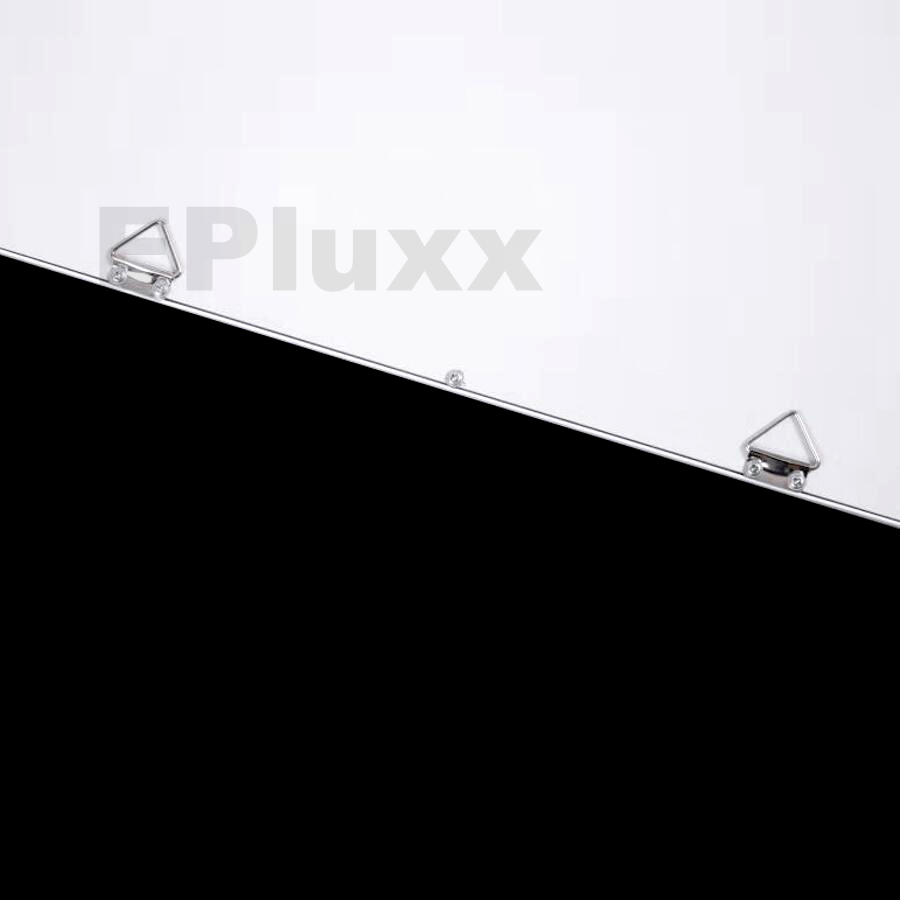

(3) Suspending
