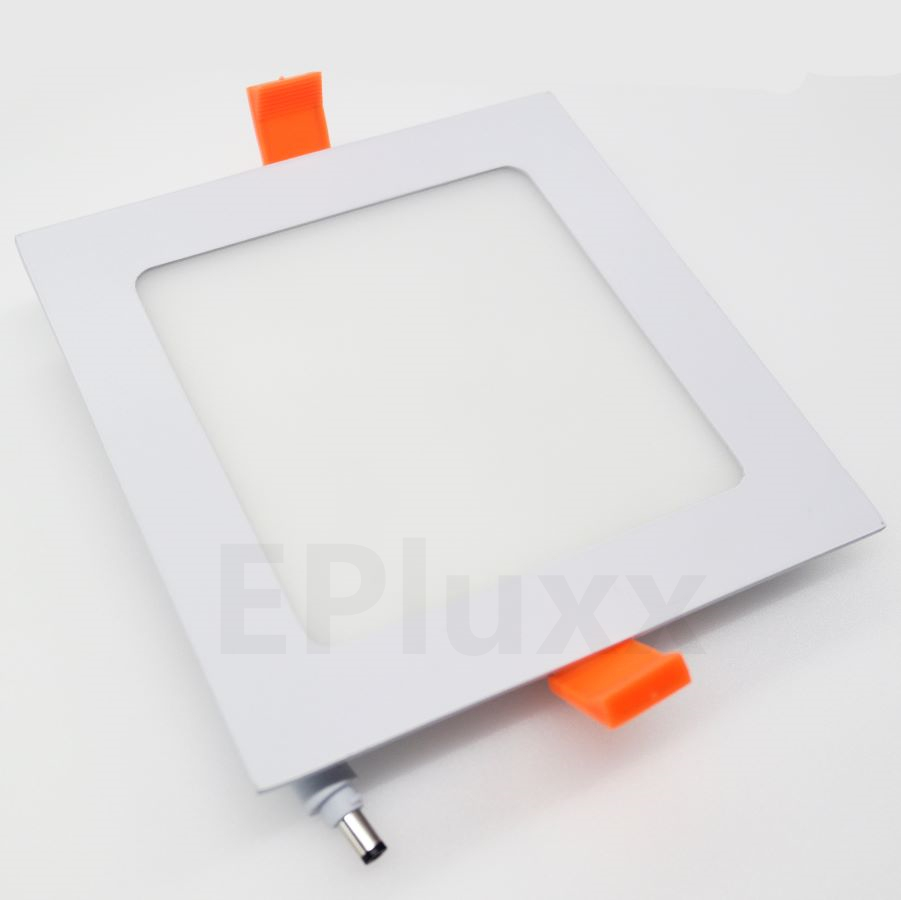

Square small size

 Tips: Click to enlarge the picture

Specification

ItemDS-CL-3W-S20DS-CL-6W-S20DS-CL-9W-S20DS-CL-12W-S20
Power3W6W9W12W
Luminous Flux250lm510lm780lm1100lm
Dimension90*90*12mm120*120*12mm150*150*12m175*175*12m
Cut-out70mm100mm130mm150mm
LED BrandEpistar 2835 LEDEpistar 2835 LEDEpistar 2835 LEDEpistar 2835 LED
LED QTY15pcs SMD30pcs SMD45pcs SMD60pcs SMD
IP RatingIP44IP44IP44IP44
Beam Angle120°120°120°120°
Input VoltageAC100-240VAC100-240VAC100-240VAC100-240V
EdgingWhite / Silver / BlackWhite / Silver / BlackWhite / Silver / BlackWhite / Silver / Black
Frequency50/60Hz50/60Hz50/60Hz50/60Hz
Light Transmittance90%90%90%90%
CRI80Ra / 90Ra80Ra / 90Ra80Ra / 90Ra80Ra / 90Ra
Anti-GlareUGR<19 / UGR<22UGR<19 / UGR<22UGR<19 / UGR<22UGR<19 / UGR<22
Color Temperature2800-6500K optional2800-6500K optional2800-6500K optional2800-6500K optional
PF>0.9>0.9>0.9>0.9
MaterialAluminum+PMMA Aluminum+PMMA Aluminum+PMMA Aluminum+PMMA
Lifespan50,000hours50,000hours50,000hours50,000hours
Working Temperature-40℃-+40℃-40℃-+40℃-40℃-+40℃-40℃-+40℃
CertificateCE, RoHSCE, RoHSCE, RoHSCE, RoHS




ItemDS-CL-15W-S20DS-CL-18W-S20DS-CL-24W-S20
Power15W18W24W
Luminous Flux1350lm1650lm2150lm
Dimension200*200*12mm225*225*12mm300*300*12m
Cut-out170mm205mm270mm
LED BrandEpistar 2835 LEDEpistar 2835 LEDEpistar 2835 LED
LED QTY75pcs SMD90pcs SMD120pcs SMD
IP RatingIP44IP44IP44
Beam Angle120°120°120°
Input VoltageAC100-240VAC100-240VAC100-240V
EdgingWhite / Silver / BlackWhite / Silver / BlackWhite / Silver / Black
Frequency50/60Hz50/60Hz50/60Hz
Light Transmittance90%90%90%
CRI80Ra / 90Ra80Ra / 90Ra80Ra / 90Ra
Anti-GlareUGR<19 / UGR<22UGR<19 / UGR<22UGR<19 / UGR<22
Color Temperature2800-6500K optional2800-6500K optional2800-6500K optional
PF>0.9>0.9>0.9
MaterialAluminum+PMMAAluminum+PMMAAluminum+PMMA
Lifespan50,000hours50,000hours50,000hours
Working Temperature-40℃-+40℃-40℃-+40℃-40℃-+40℃
CertificateCE, RoHSCE, RoHSCE, RoHS

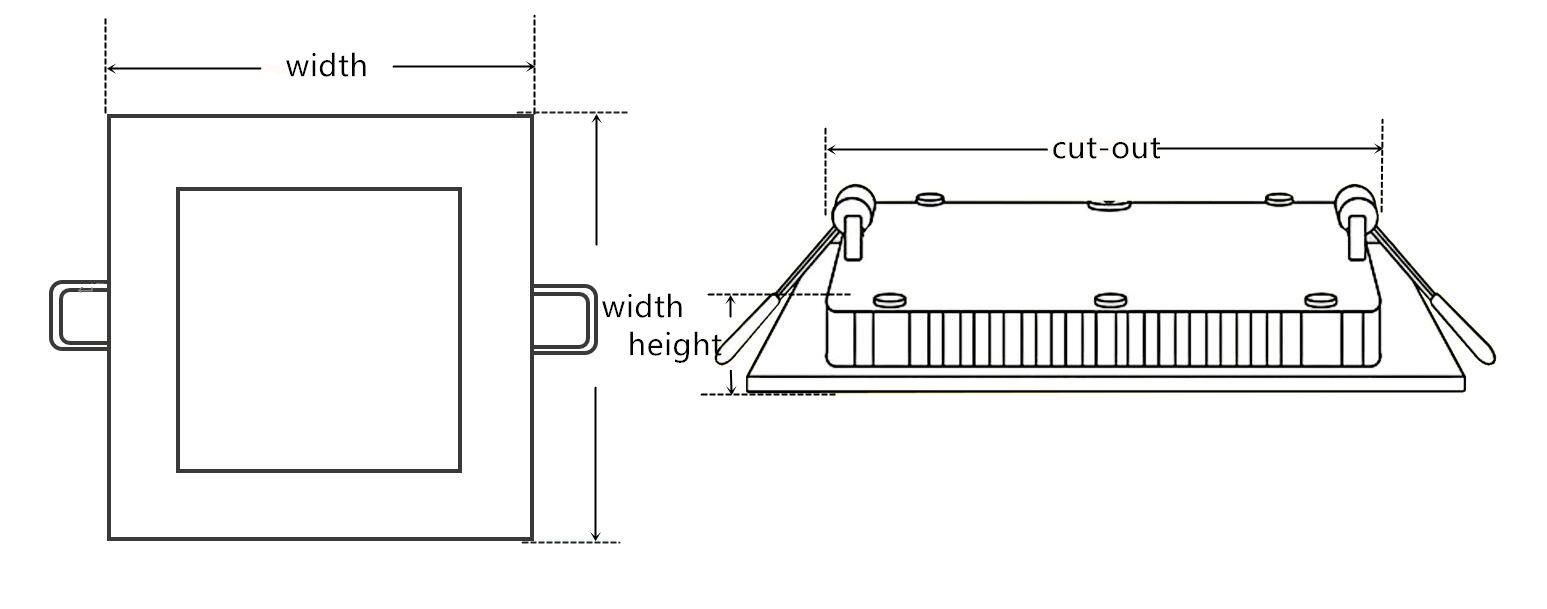

Dimension


ItemWidthHeightCut-out
DS-CL-3W-R2090*90mm12mm70*70mm
DS-CL-6W-R20120*120mm12mm100*100mm
DS-CL-9W-R20150*150mm12mm130*130mm
DS-CL-12W-R20175*175mm12mm150*150mm
DS-CL-15W-R20200*200mm12mm170*170mm
DS-CL-18W-R20225*225mm12mm205*205mm
DS-CL-24W-R20300*300mm12mm270*270mm





Features

Super bright 90-100lm/w LED Panel Light, Saving 60%-80% electricity cost to  traditional Panels.

High quality TUV certified flicker free LED driver, PF>0.95 stability and safety.

Multiple brands LED driver can be selected. Such as Lifud, Boke, Philips, Osram, Tridonic ...

The Panel light is made of high quality all aluminum frame and PMMA lamp cover.

The Surface of our led panel light is smooth without scratch.

Super bright Epistar led chip, LM80, SCDM<4

Side light source, led light pass through the light guide plate with high transmittance to form a very uniform and comfortable light.

Ultra-thin 12mm, reduce tansportation cost, easy to installation with mounting brackets or steel string.

No noise, No UV or IR radiation. Save and eco-friendly.

UGR<19 led panel light can be produced.

Multiple dimming modes are optional: triac dimmable , 0-10V dimmable, DMX dimmable, Dali dimmable

Long lifespan, 5 years warranty.


















Application

Hotels
Hospitals
Commercial complexes
Meeting rooms
Exhibition halls
Factories and offices
Residential/Institution buildings
Schools
Salon, Bar, Taproom, and widely used in the romantic place.

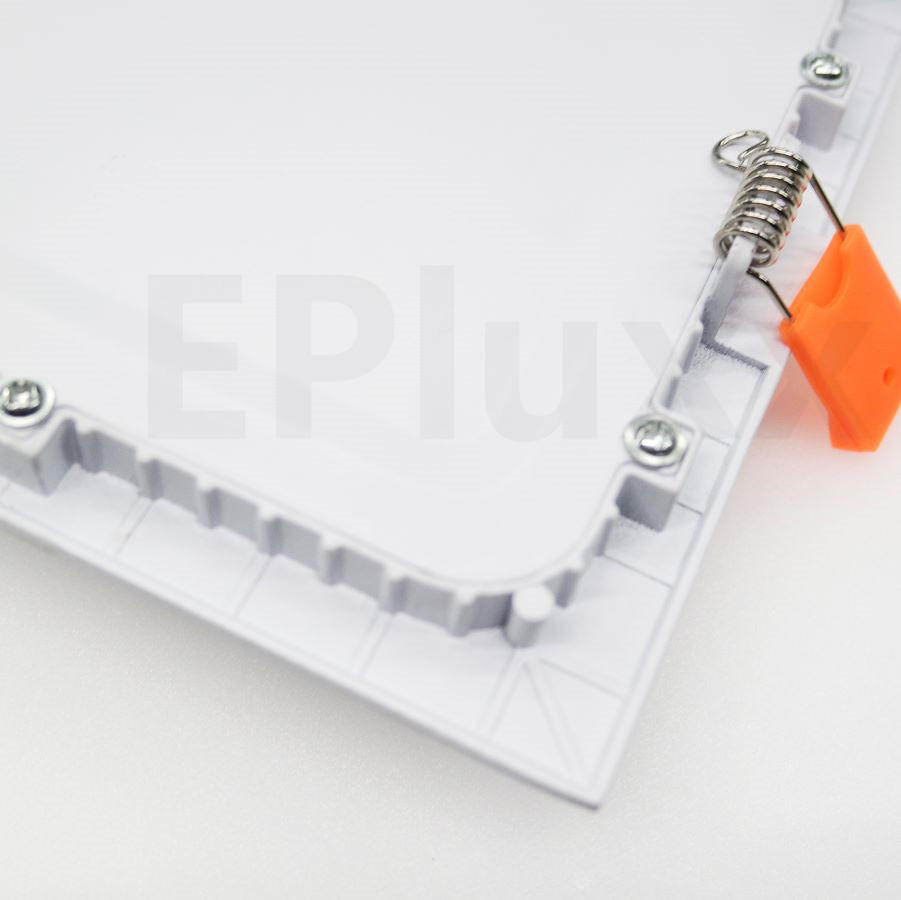

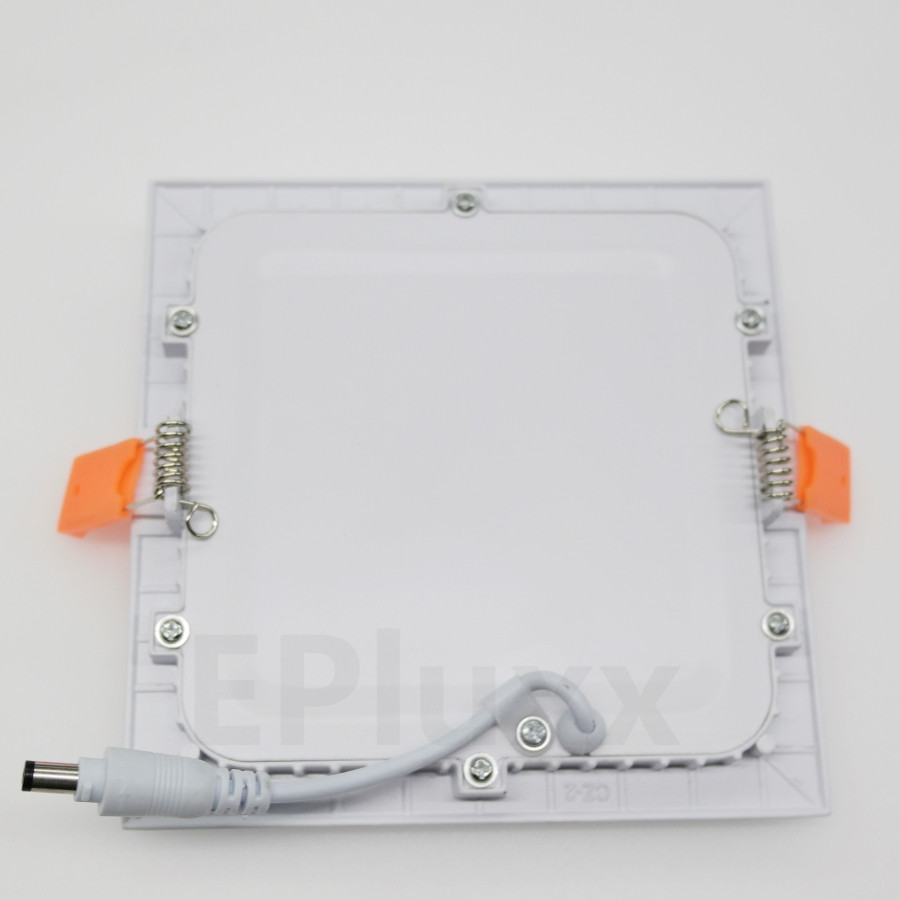

Installation

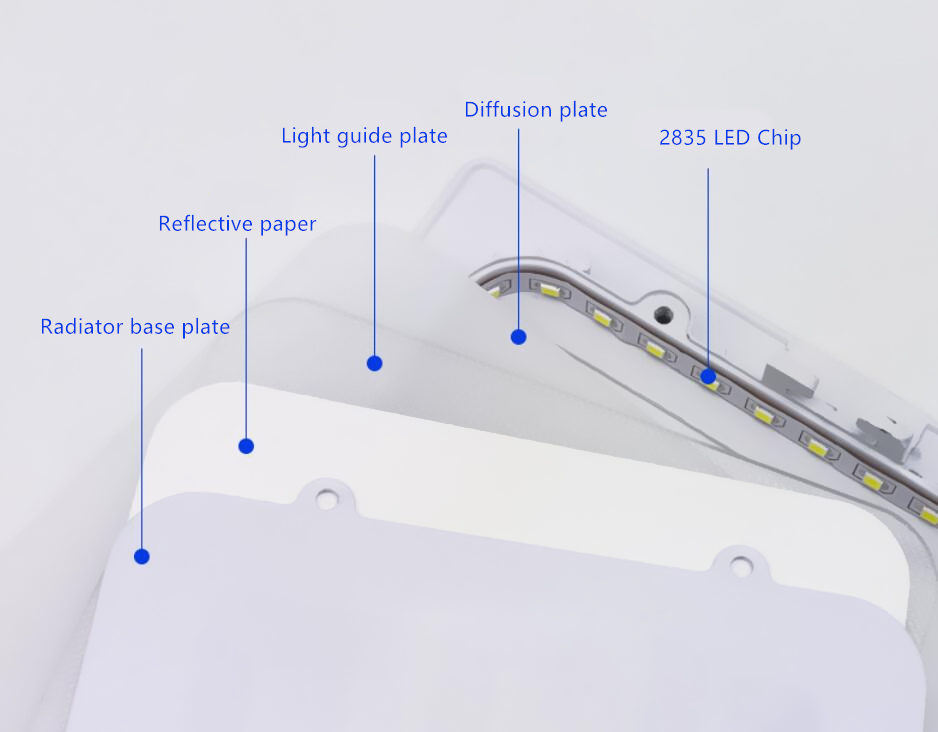

Lamp Structure





Packing
