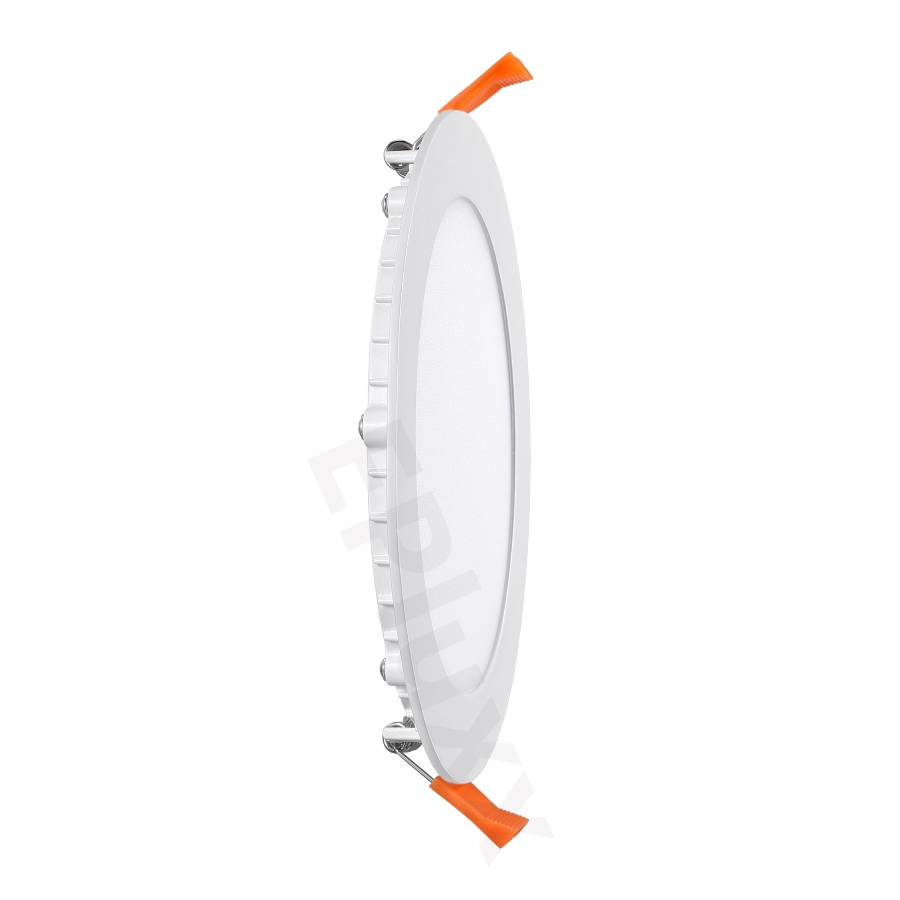

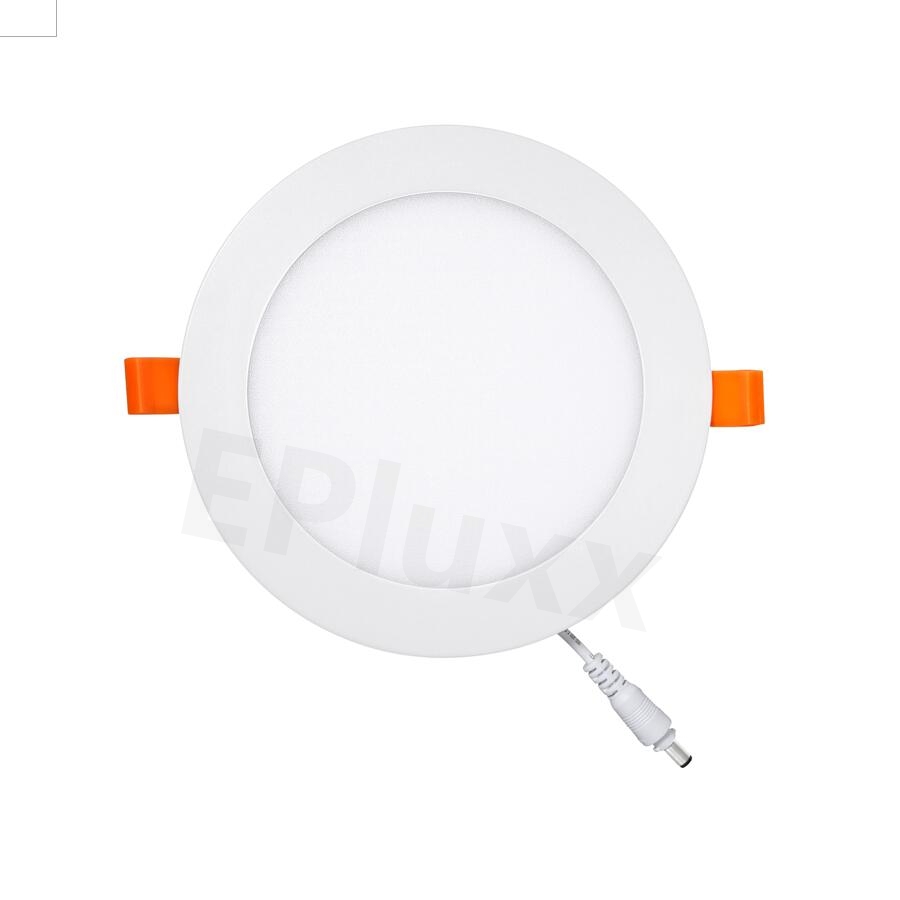

100lm/w Small Size LED Panel

 Tips: Click to enlarge the picture


Specification

ItemDS-CL-3W-R20DS-CL-6W-R20DS-CL-9W-R20DS-CL-12W-R20
Power3W6W9W12W
Luminous Flux280lm550lm850lm1150lm
DimensionD88*12mmD120*12mmD145*12mD175*12m
Cut-out69mm104mm130mm152mm
LED BrandEpistar 2835 LEDEpistar 2835 LEDEpistar 2835 LEDEpistar 2835 LED
LED QTY15pcs SMD30pcs SMD45pcs SMD60pcs SMD
IP RatingIP44IP44IP44IP44
Beam Angle120°120°120°120°
Input VoltageAC100-240VAC100-240VAC100-240VAC100-240V

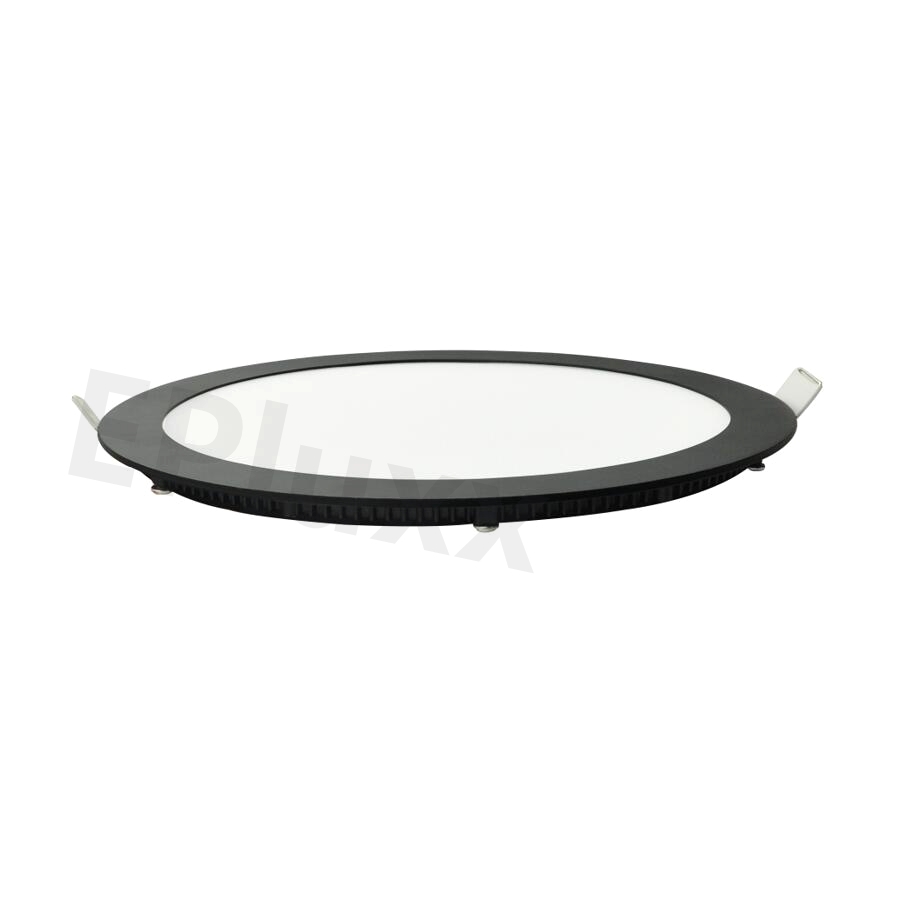

EdgingWhite / Silver / BlackWhite / Silver / BlackWhite / Silver / BlackWhite / Silver / Black
Frequency50/60Hz50/60Hz50/60Hz50/60Hz
Light Transmittance90%90%90%90%
CRI80Ra / 90Ra80Ra / 90Ra80Ra / 90Ra80Ra / 90Ra
Anti-GlareUGR<19 / UGR<22UGR<19 / UGR<22UGR<19 / UGR<22UGR<19 / UGR<22
Color Temperature2800-6500K optional2800-6500K optional2800-6500K optional2800-6500K optional
PF>0.9>0.9>0.9>0.9
MaterialAluminum+PMMA Aluminum+PMMA Aluminum+PMMA Aluminum+PMMA
Lifespan50,000hours50,000hours50,000hours50,000hours
Working Temperature-40℃-+40℃-40℃-+40℃-40℃-+40℃-40℃-+40℃
CertificateCE, RoHSCE, RoHSCE, RoHSCE, RoHS




ItemDS-CL-15W-R20DS-CL-18W-R20DS-CL-20W-R20DS-CL-24W-R20
Power15W18W20W24W
Luminous Flux1450lm1750lm1950lm2350lm
DimensionD195*12mmD225*12mmD240*12mD300*12m
Cut-out180mm205mm220mm280mm
LED BrandEpistar 2835 LEDEpistar 2835 LEDEpistar 2835 LEDEpistar 2835 LED
LED QTY75pcs SMD90pcs SMD105pcs SMD120pcs SMD
IP RatingIP44IP44IP44IP44
Beam Angle120°120°120°120°
Input VoltageAC100-240VAC100-240VAC100-240VAC100-240V
EdgingWhite / Silver / BlackWhite / Silver / BlackWhite / Silver / BlackWhite / Silver / Black
Frequency50/60Hz50/60Hz50/60Hz50/60Hz
Light Transmittance90%90%90%90%
CRI80Ra / 90Ra80Ra / 90Ra80Ra / 90Ra80Ra / 90Ra
Anti-GlareUGR<19 / UGR<22UGR<19 / UGR<22UGR<19 / UGR<22UGR<19 / UGR<22
Color Temperature2800-6500K optional2800-6500K optional2800-6500K optional2800-6500K optional
PF>0.9>0.9>0.9>0.9
MaterialAluminum+PMMA CoverAluminum+PMMAAluminum+PMMA Aluminum+PMMA
Lifespan50,000hours50,000hours50,000hours50,000hours
Working Temperature-40℃-+40℃-40℃-+40℃-40℃-+40℃-40℃-+40℃
CertificateCE, RoHSCE, RoHSCE, RoHSCE, RoHS

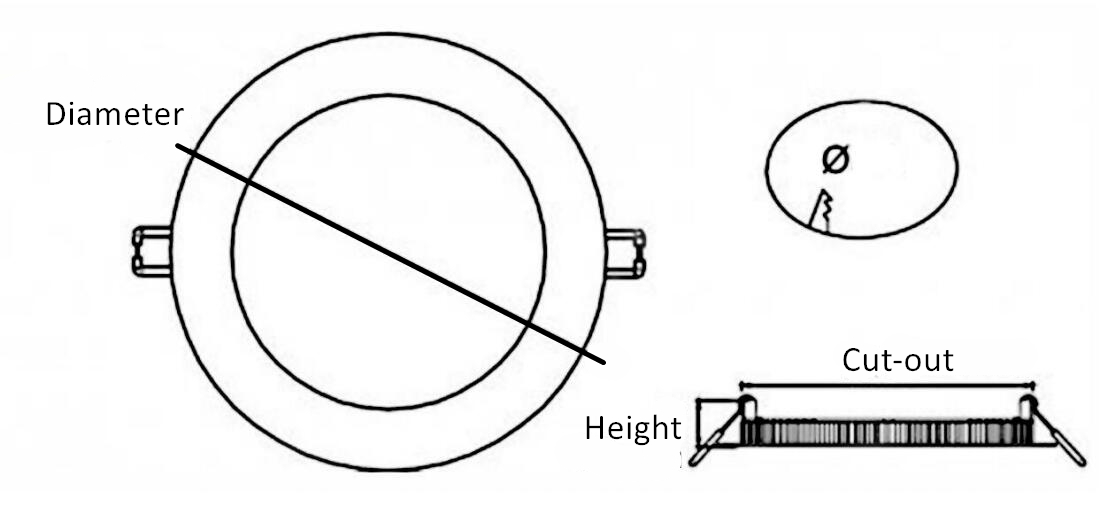

Dimension



ItemDiameterCut-outHeight
DS-CL-3W-R2088mm69mm12mm
DS-CL-6W-R20120mm104mm12mm
DS-CL-9W-R20145mm130mm12mm
DS-CL-12W-R20175mm152mm12mm
DS-CL-15W-R20195mm180mm12mm
DS-CL-18W-R20225mm205mm12mm
DS-CL-20W-R20240mm220mm12mm
DS-CL-24W-R20300mm280mm12mm



Features

Super bright 90-100lm/w LED Panel Light, Saving 60%-80% electricity cost to  traditional Panels.

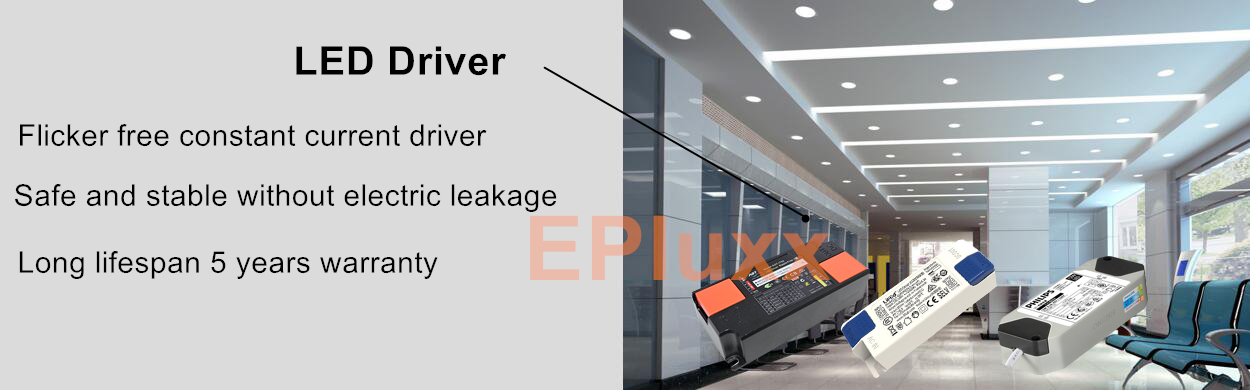

High quality TUV certified flicker free LED driver, PF>0.95
stability and safety.

Multiple brands LED driver can be selected. Such as Lifud, Boke, Philips, Osram, Tridonic ...

The Panel light is made of high quality all aluminum frame and PMMA lamp cover.

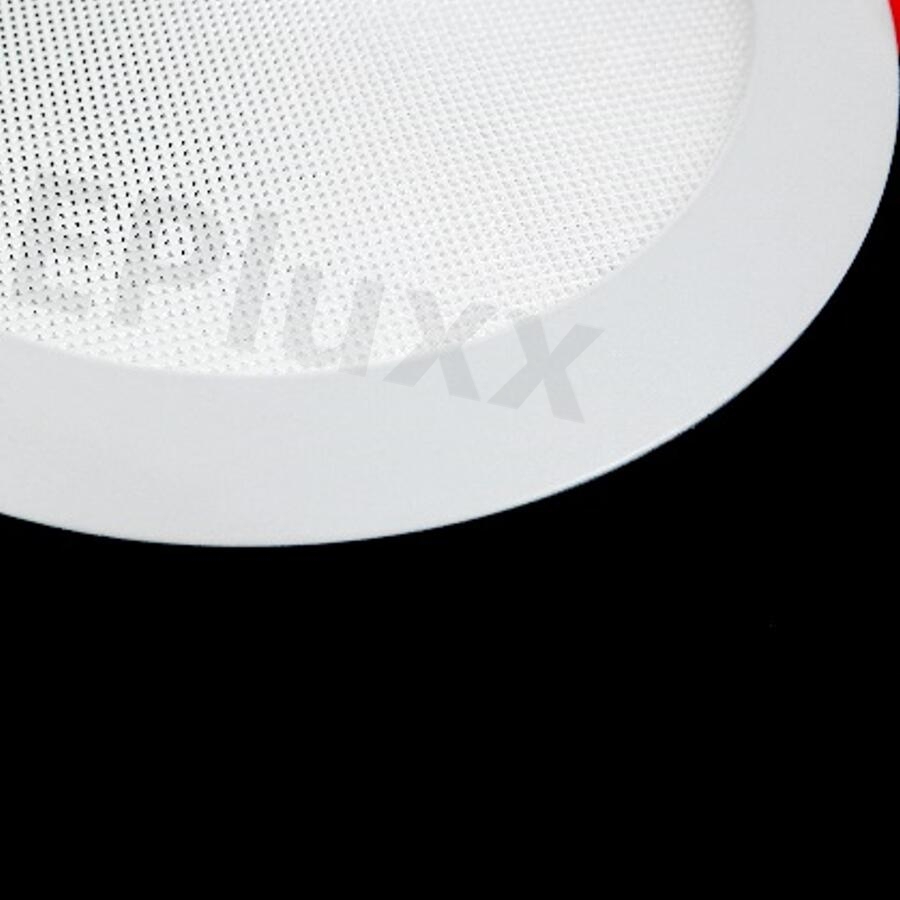

The Surface of our led panel light is smooth without scratch.

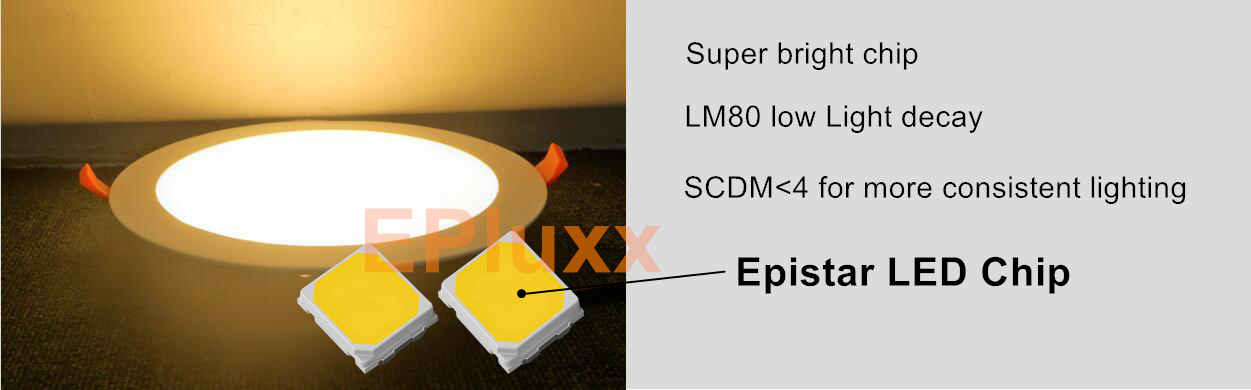

Super bright Epistar led chip, LM80, SCDM<4

Side light source, led light pass through the light guide plate with high transmittance to form a very uniform and comfortable light.

Ultra-thin 12mm,
reduce tansportation cost, easy to installation with mounting brackets or steel string.

No noise, No UV or IR radiation. Save and eco-friendly.

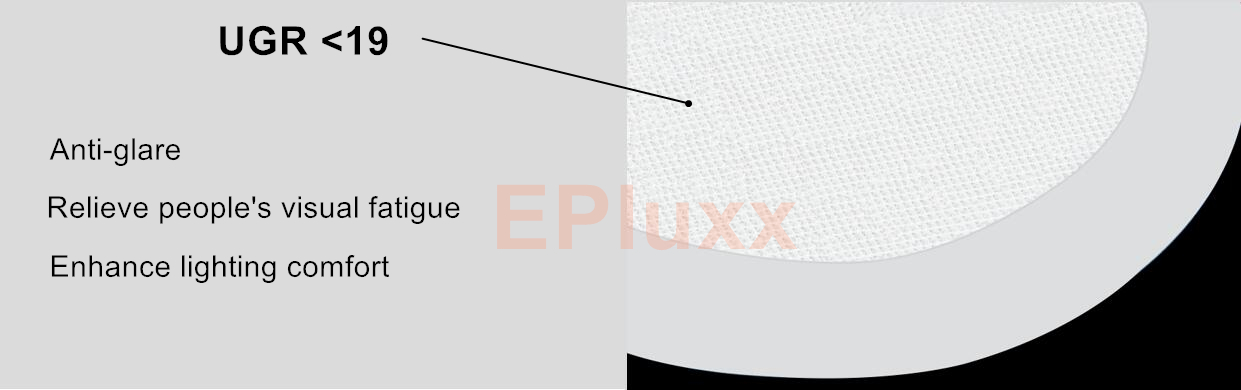

UGR<19 led panel light can be produced.

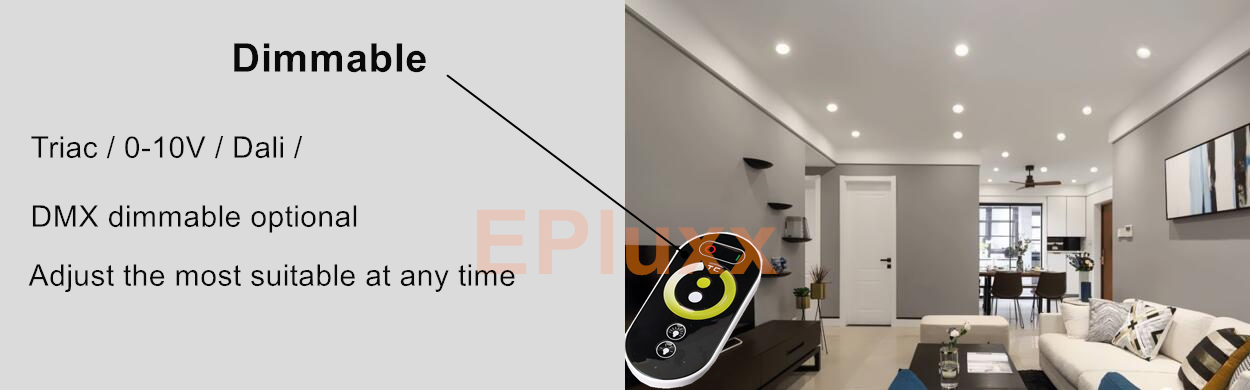

Multiple dimming modes are optional: triac dimmable , 0-10V dimmable, DMX dimmable, Dali dimmable

Long lifespan, 5 years warranty.

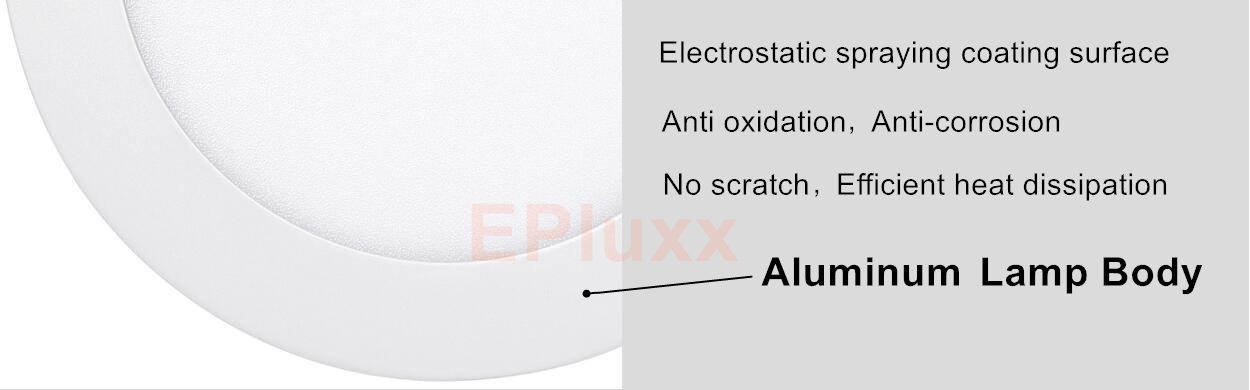

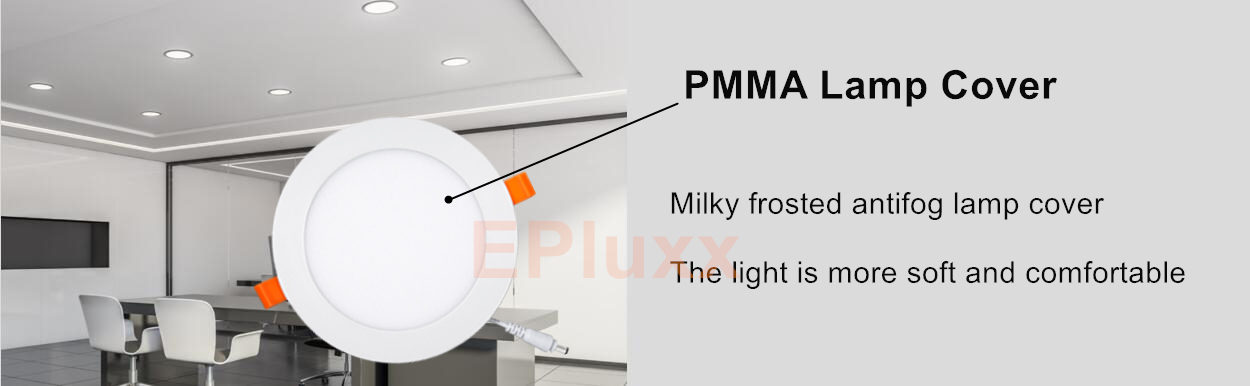

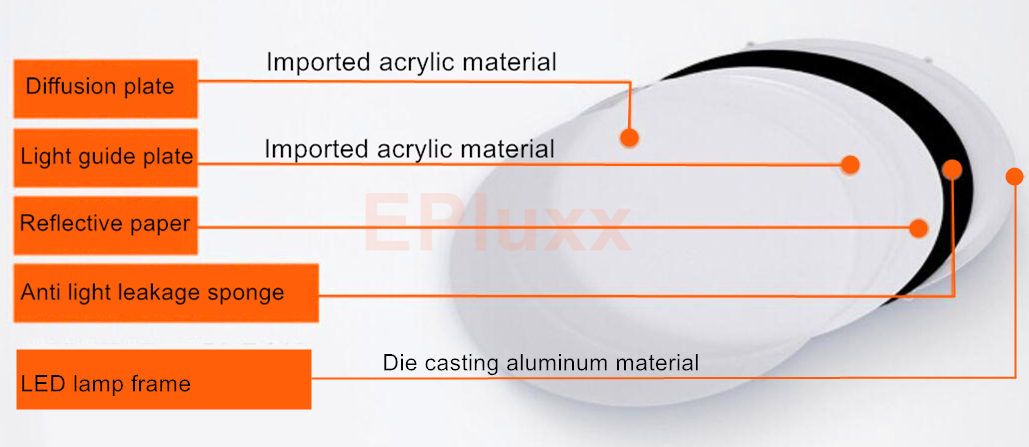

Lamp Structure

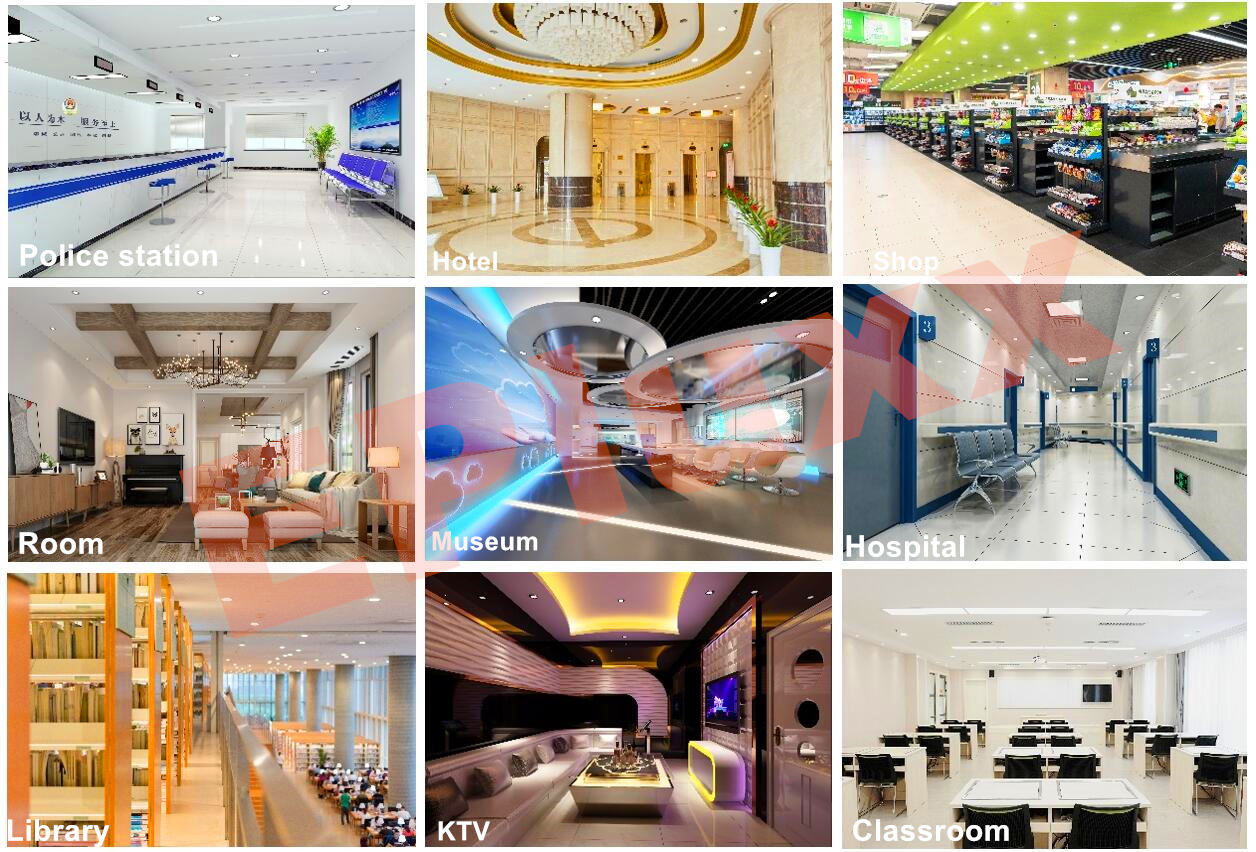

Application

Hotels
Hospitals
Commercial complexes
Meeting rooms
Exhibition halls
Factories and offices
Residential/Institution buildings
Schools
Salon, Bar, Taproom, and widely used in the romantic place.

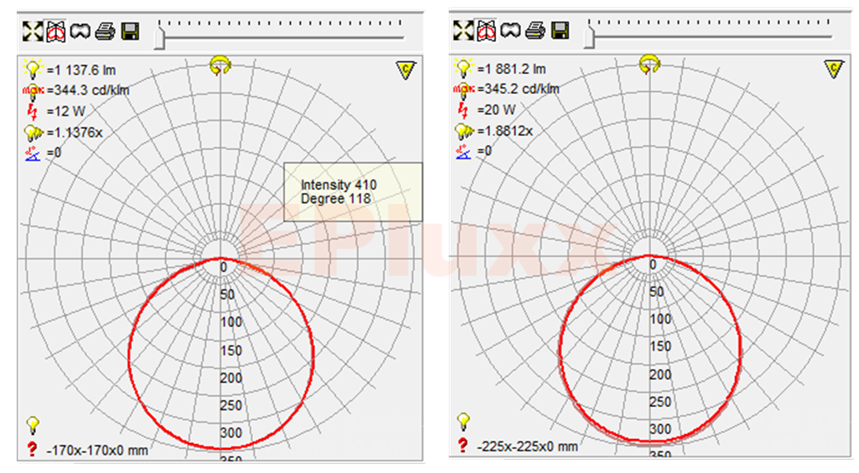

IES Test

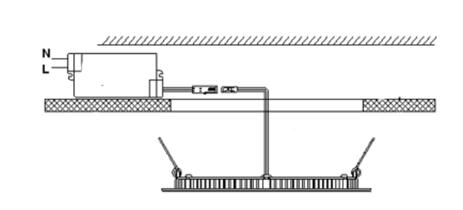

Installation

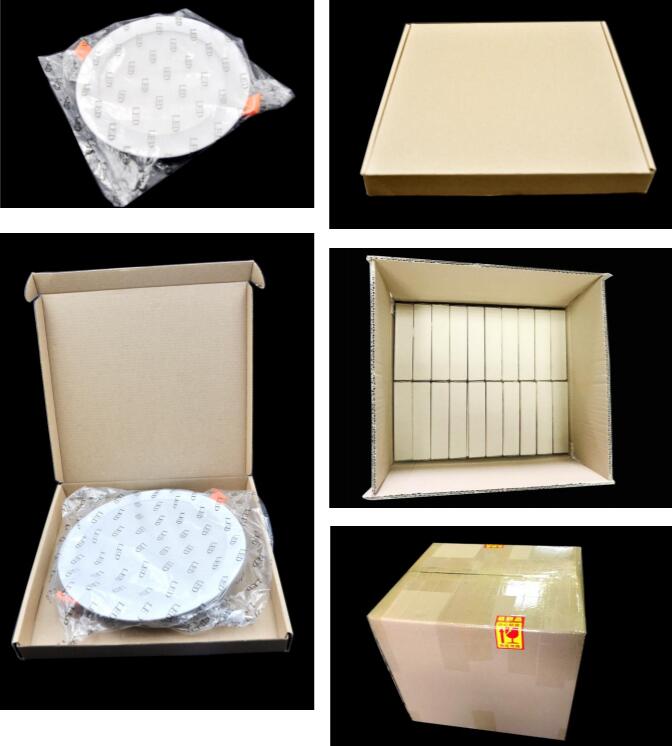

Packing
