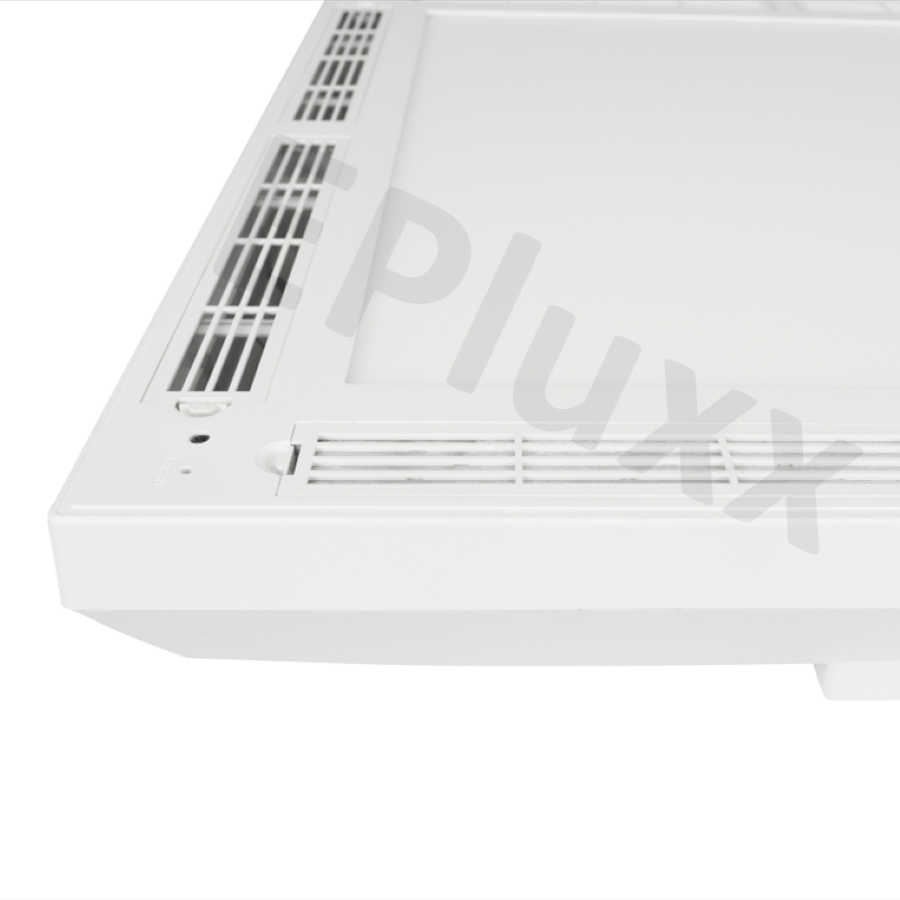

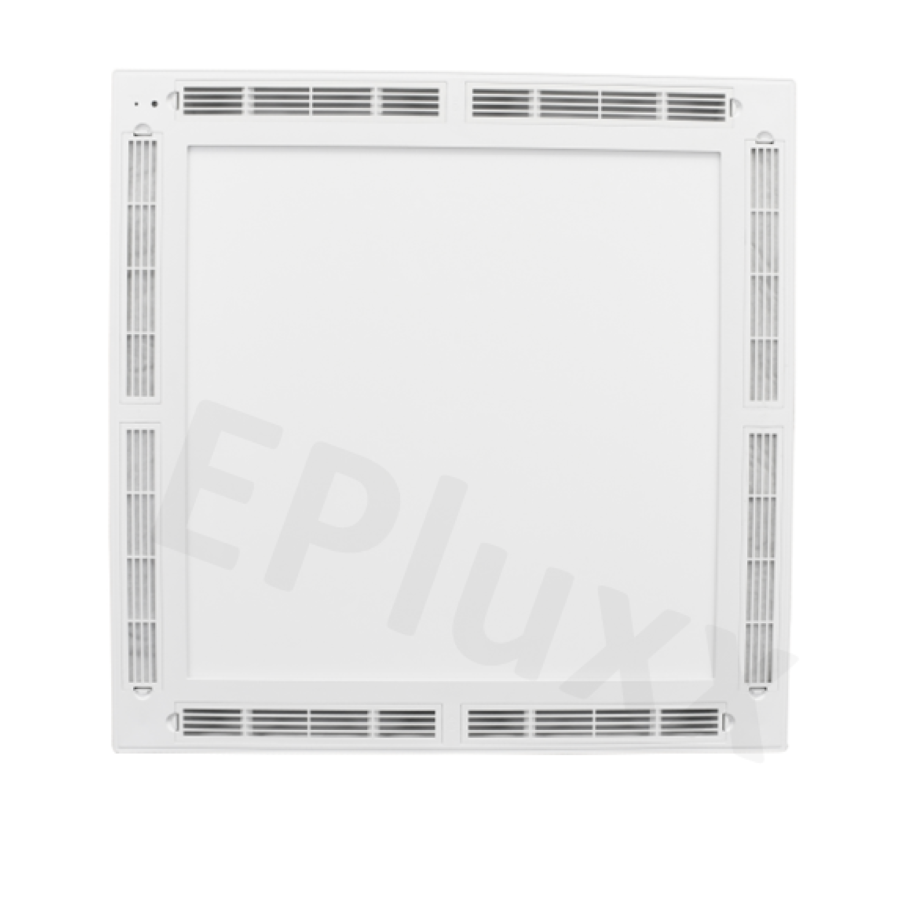

DS-CL-0606-MPL-G
Specification
| Total Power: | 50W |
| LED Panel: | 40W (465x465mm) |
| Light Efficiency: | 100lm/W |
| Luminous Flux: | 4000Lm |
| Frame Color: | White |
| Input Voltage: | AC220-240V or AC100-277V |
| Frequency: | 50/60Hz |
| Dimmension: | 598*598*120mm |
| Dimmable | Stepless color temperature and brightness dimmable |
| Fan | 3 level: 0% 20% 40% 60% |
| Timing | 0.5h (Lighting & Fan) |
| Working Temperature: | -20~50°C |
| Filter Screen | HEPA 13 |
| Power Factor: | >0.9 Flicker Free |
| CRI: | >80Ra |
| UGR | <23 or <19 |
| Noise Level: | <40dB |
| Lifespan | >50,000 hours |
| Warranty: | 3 years |
| LGP Material: | PMMA |
| N.W. : | 7.9kg |
| Packing: | 1pcs/ctn |
| Certificates: | CE RoHS SGS |
Features
1, EPluxx's UV disinfect LED Panel light is used LED innovative technology Nanometer material diffusion plate. It can effectively kill bacteria and eliminate virus.
2, EPluxx's Anti-bacterial and anti-viral air cleaning LED panel light is built in centrifugal industrial fan, insert 2pcs air filter screen which contain nanomaterials and activated carbon,
3, The HEPA 13 filter screen can effectively filter PM2.5, dust, purify harmful gases, and the fan continuously circulates the indoor air
4, EPluxx's air cleanser LED Panel light can antibiosis, antiviral, and effectively remove these virus, Including the SARS-Corona, H1N1, Escherichia coli, staphylococcus aureus, Candida albicans, Pseudomonas aeruginosa, etc.
5. EPluxx's air circulation purification LED panel light can eliminating indoors Formaldehyde, Benzene, Toluene, Xylene, Ammonia, TVOC concentration, etc.

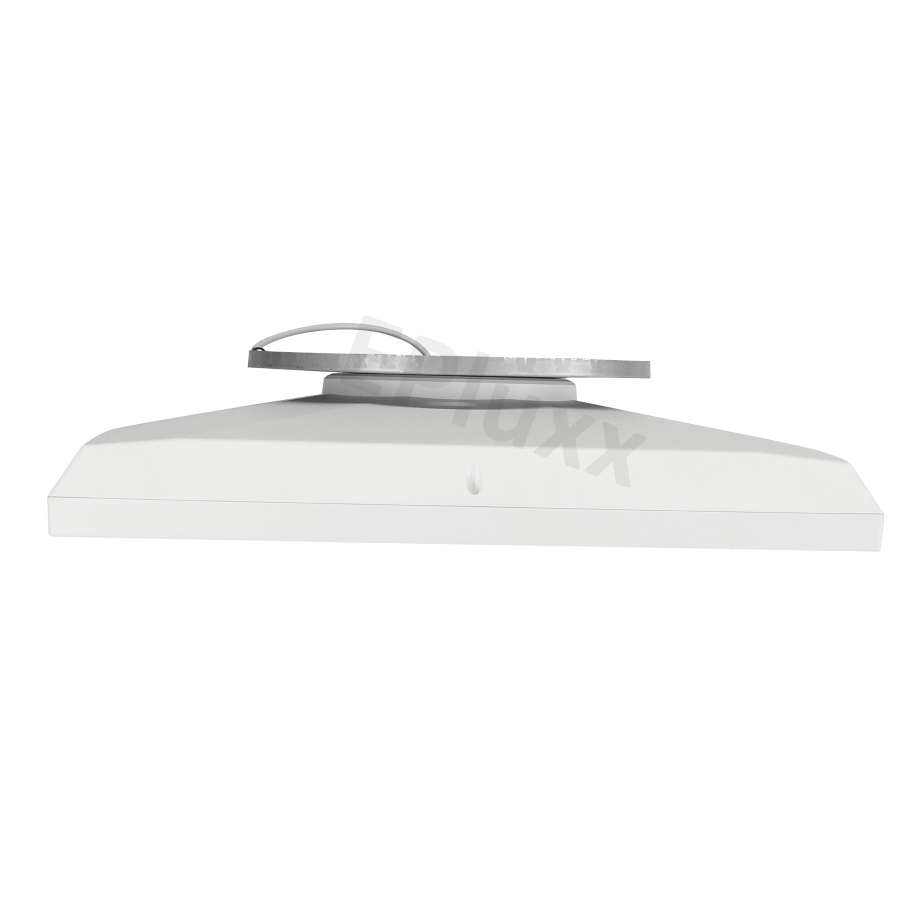

6, Three installation methods, suspension, embedding, ceiling surface mounted, easy installation.
7, Three kinds of antiseptic and antiviral mechanisms, (Nanometer material diffusion plate; filter screen; UVA / UVC sterilization), offer you 24hours against bacteria and virus with/without light.
8, Through multiple antibacterial tests. The antibacterial rate was 99.99%.
9, It can not only provide lighting, but also provide you with a healthier and cleaner living environment.
10, EPluxx's germicidal air purifying lamp does not contain any dangerous substances. Nano materials passed many nontoxic tests.
11, No flickering. No delay on start.
12, EPluxx can also produce Nano UVC LED Panel Light.
SARS, Corona Virus removal rate 99.99%

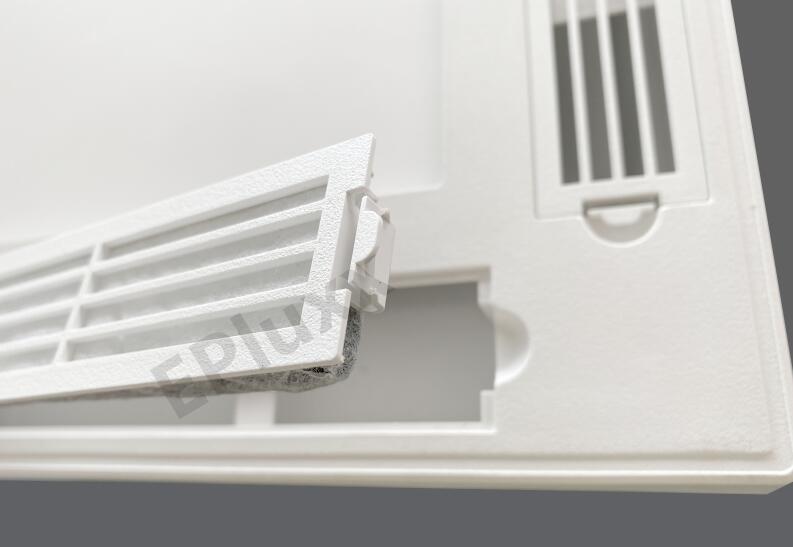

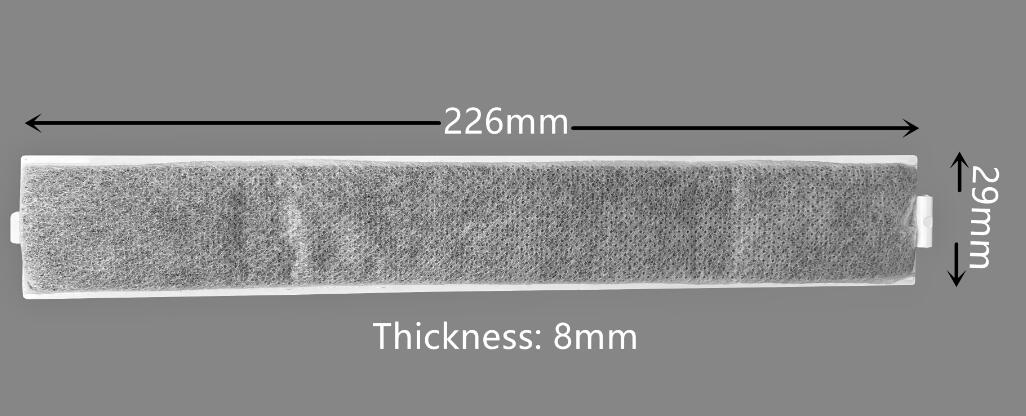

Hepa H13 Air Intake Vent Filter Screen
| Working hours for filter screen | 2160 hours |
| Phenomenon at the expiration of working hours | Fan power is turned off, Power supply of lighting system remains normal use LED indicator light shines. |

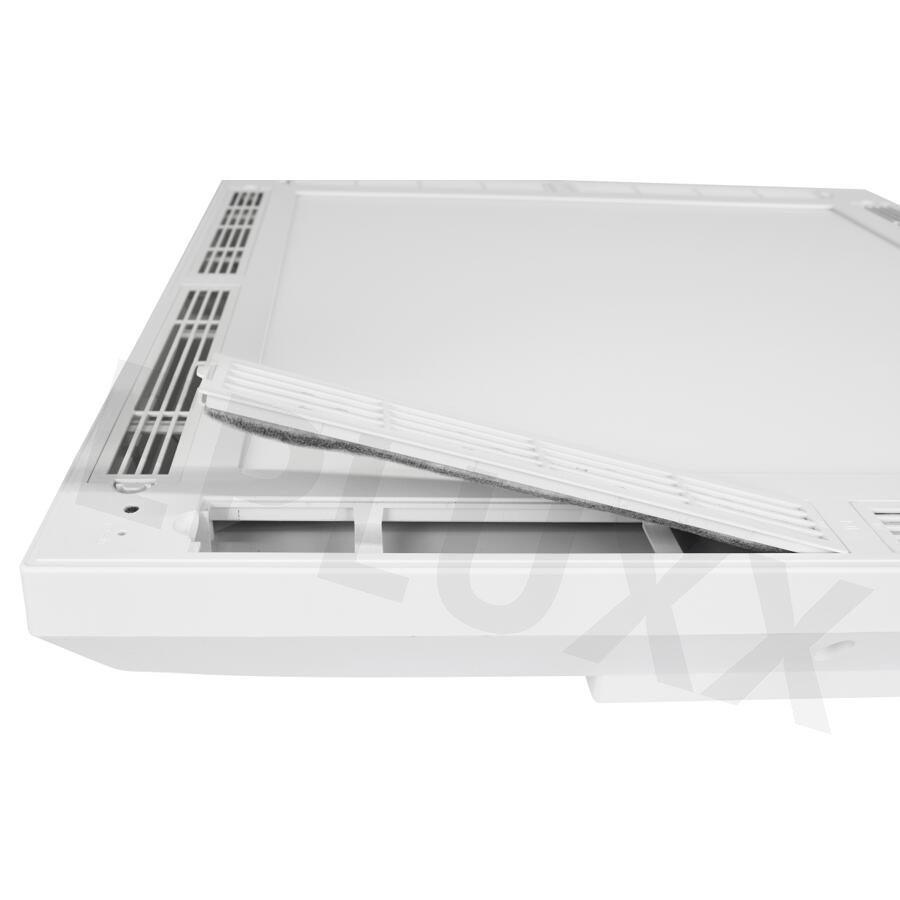

| Replacement of filters | Conforming to instructions for filter change on the cover. Open the filter mask, insert new filter screen, and cover the mask. |
| Pressing RESET button | Press the button on the left side of LED light for 4 seconds. LED light is switched off, and circulatory system power restarts. Timer recalculates until next change hour is due |
4-layers structure

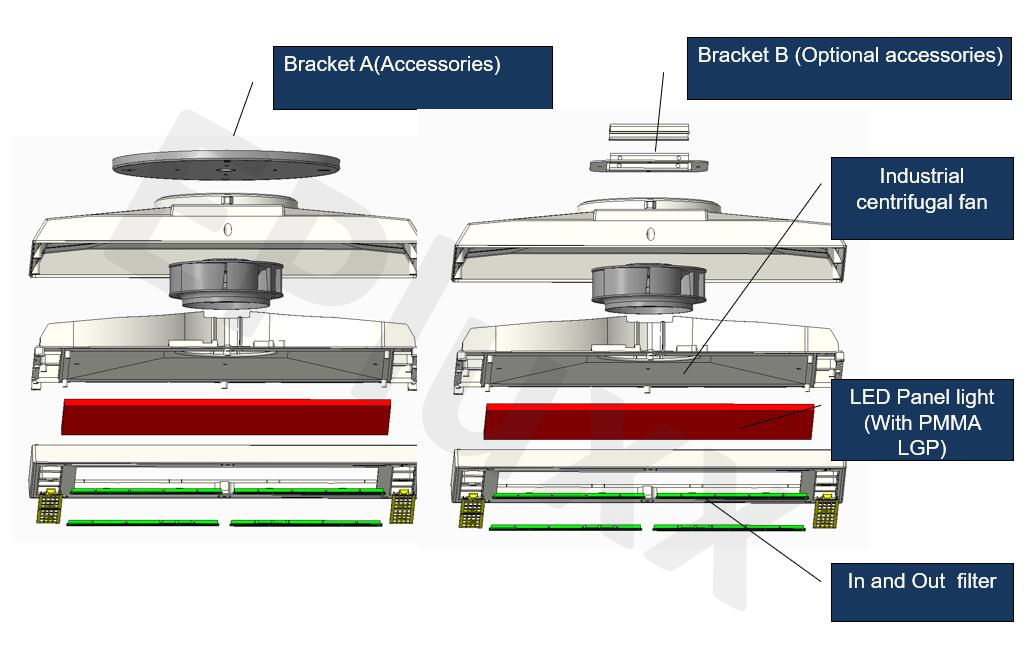

Lamp Structure

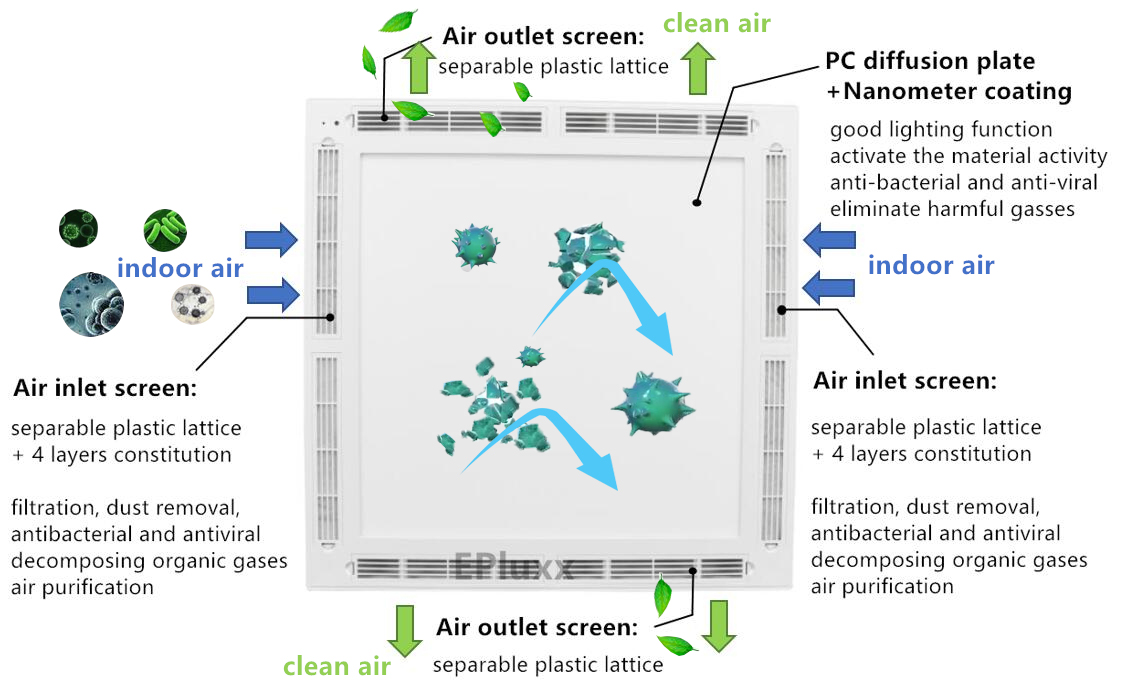

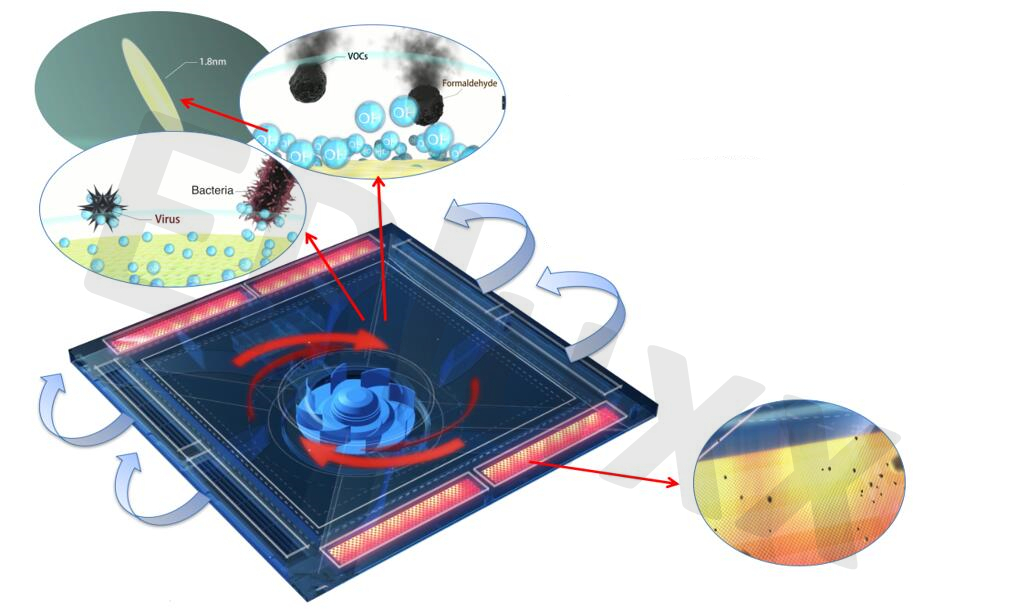

Function
Three kinds of antiseptic and antiviral mechanisms:
Nanometer material diffusion plate; filter screen; UVA / UVC sterilization
Offer you 24H all-weather protection against bacteria and virus with/ without light.
Silver ion reacts with hydrogen sulfide ion in bacteria and inhibits its reproduction
Produces superoxide free radicals and breaks down the bacteria
Materials surface is with charges that pull the membranes of bacteria, cause rupture and bring bacteria to death
Activated carbon effective adsorb and eliminate of harmful gases, deodorization
Internal fan constantly circulates and filters indoor air

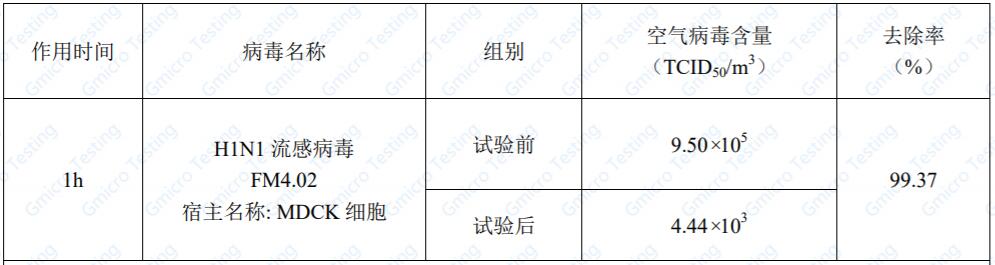

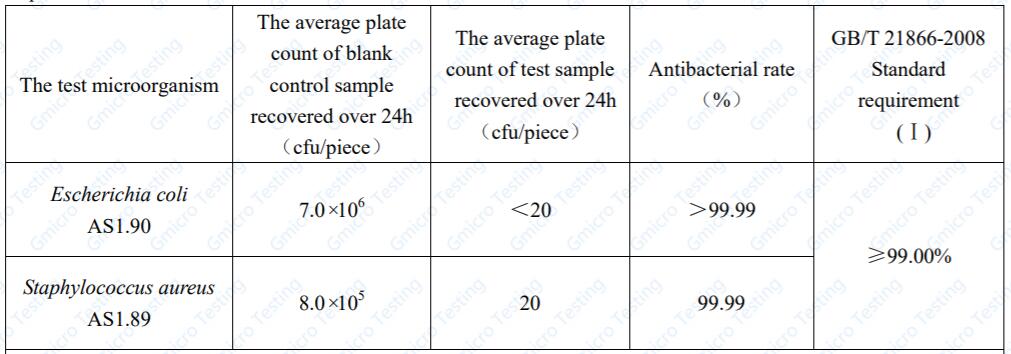

Guangdong Microbiological Analysis and Testing Center Test Report
H1N1 removal rate 99.37%

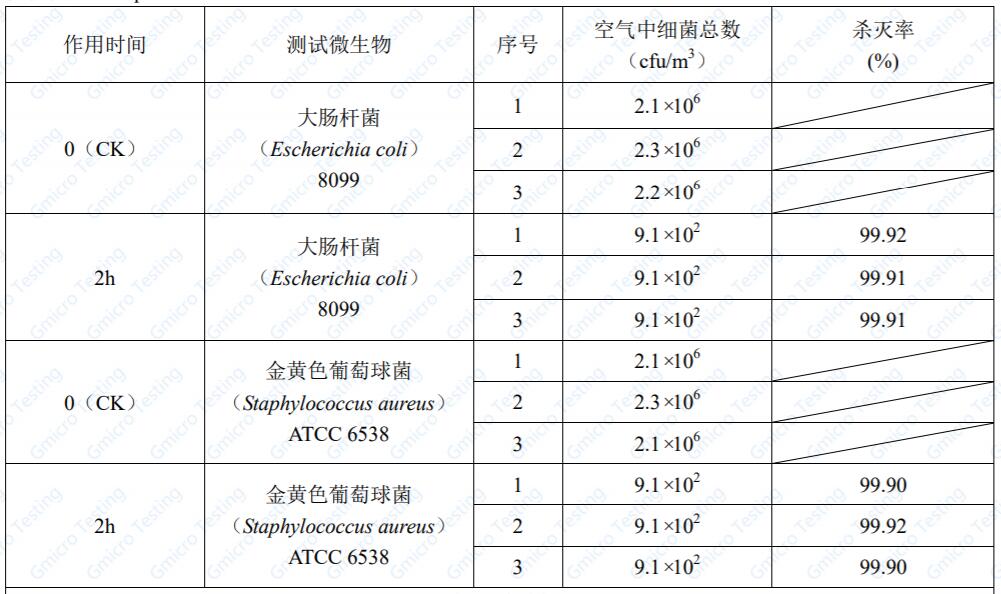

E. coli removal rate 99.92%
Staphylococcus aureus removal rate 99.92%

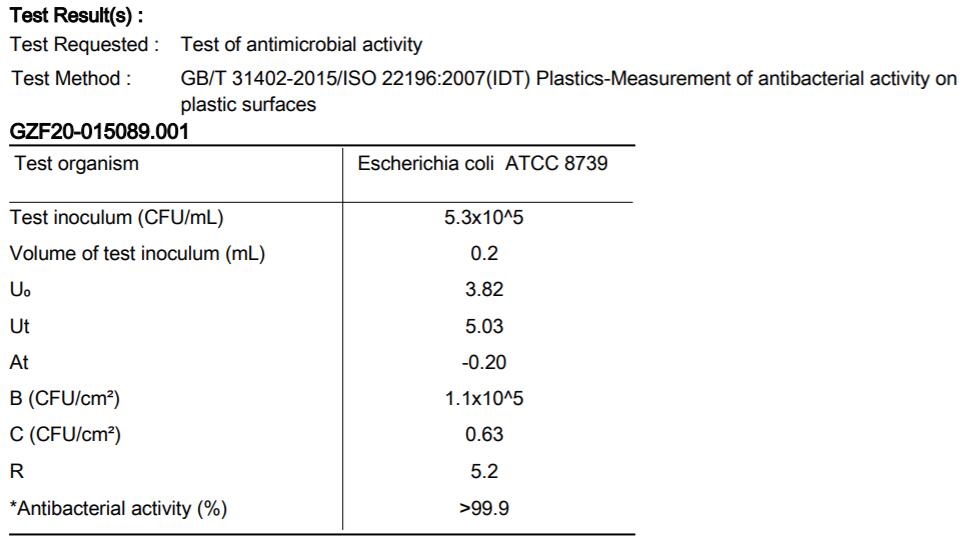

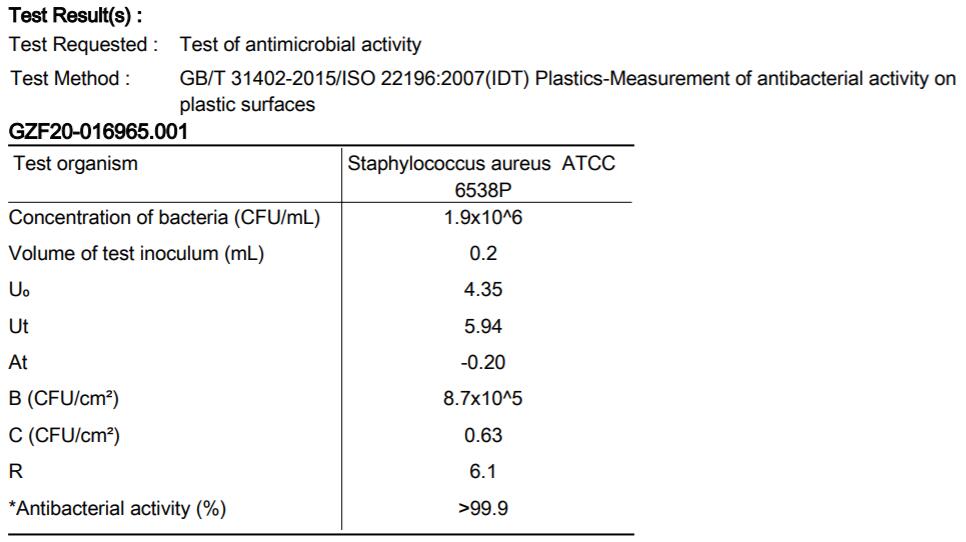

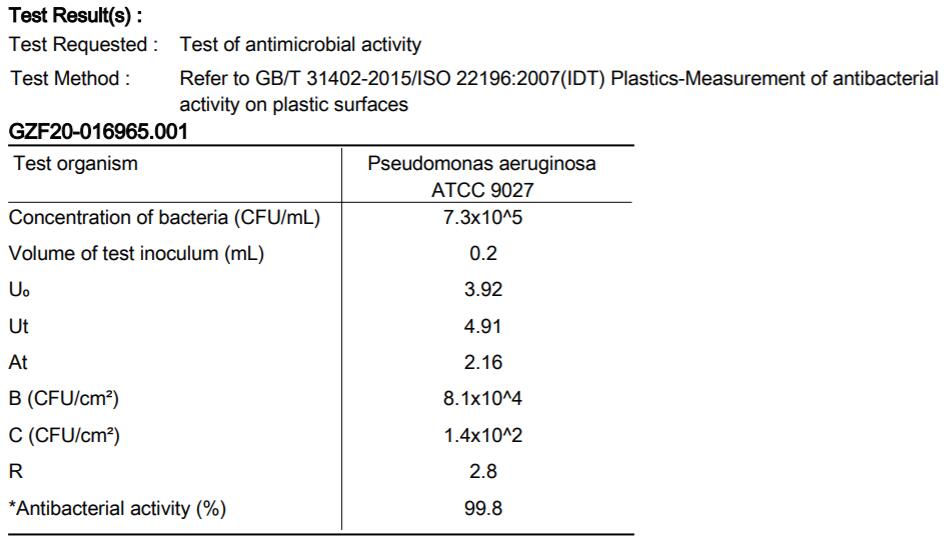

SGS Test Report
H1N1 removal rate 99.99%

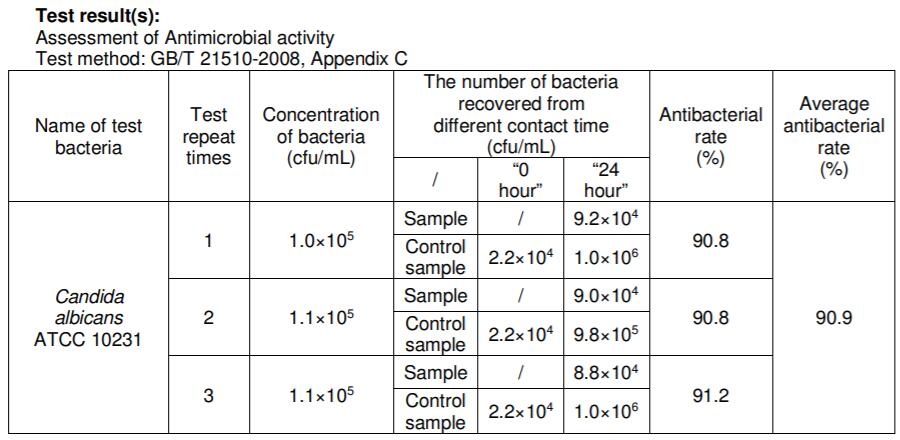

Candida albicans removal rate 90.9%
E. coli removal rate >99.99%
Staphylococcus aureus removal rate >99.99%
Pseudomonas aeruginosa removal rate 99.99%

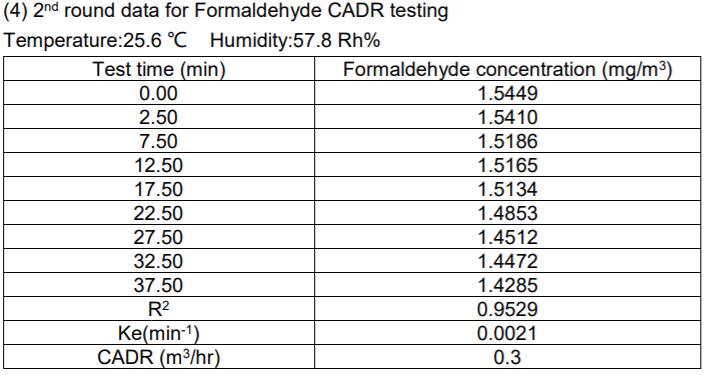

Formaldehyde removal rate >80%

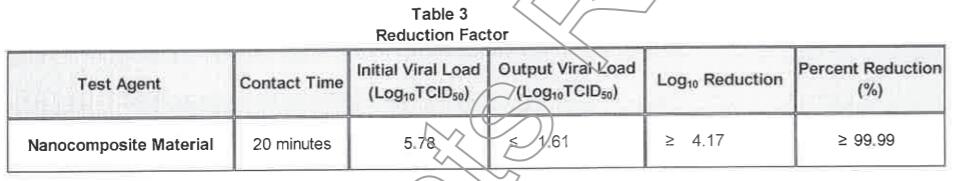

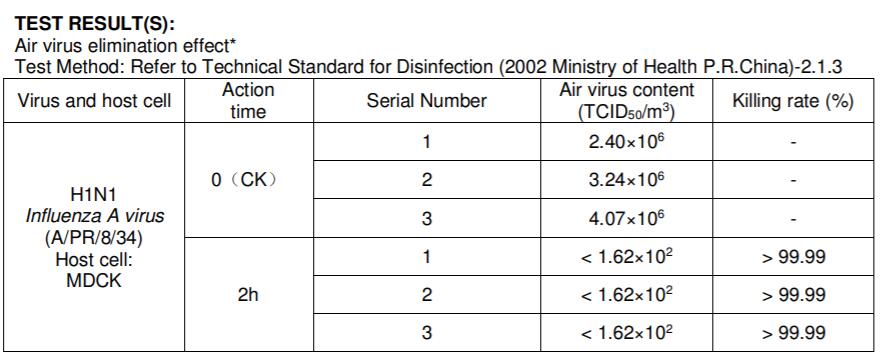

Nanomaterials FDA Test Report
H1N1 removal rate ≥99.99%

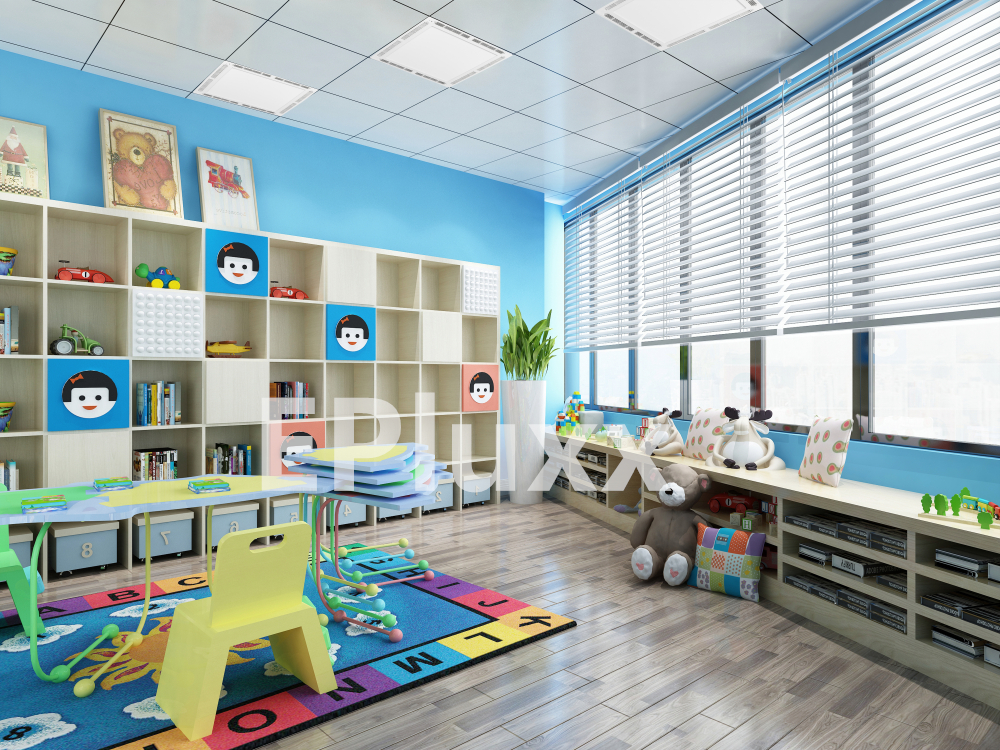

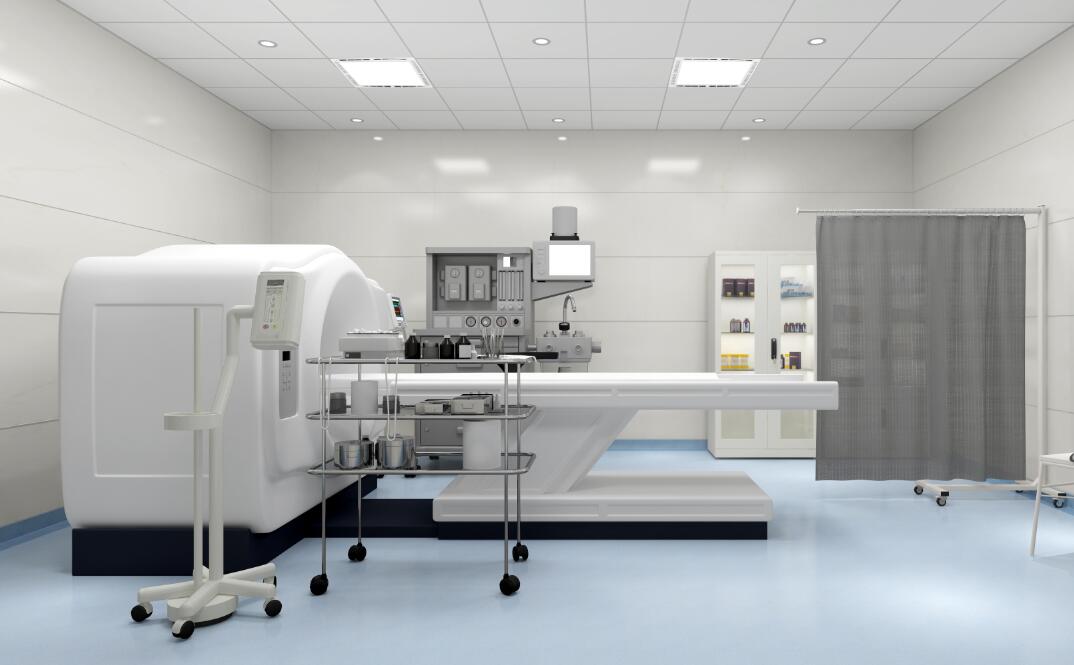

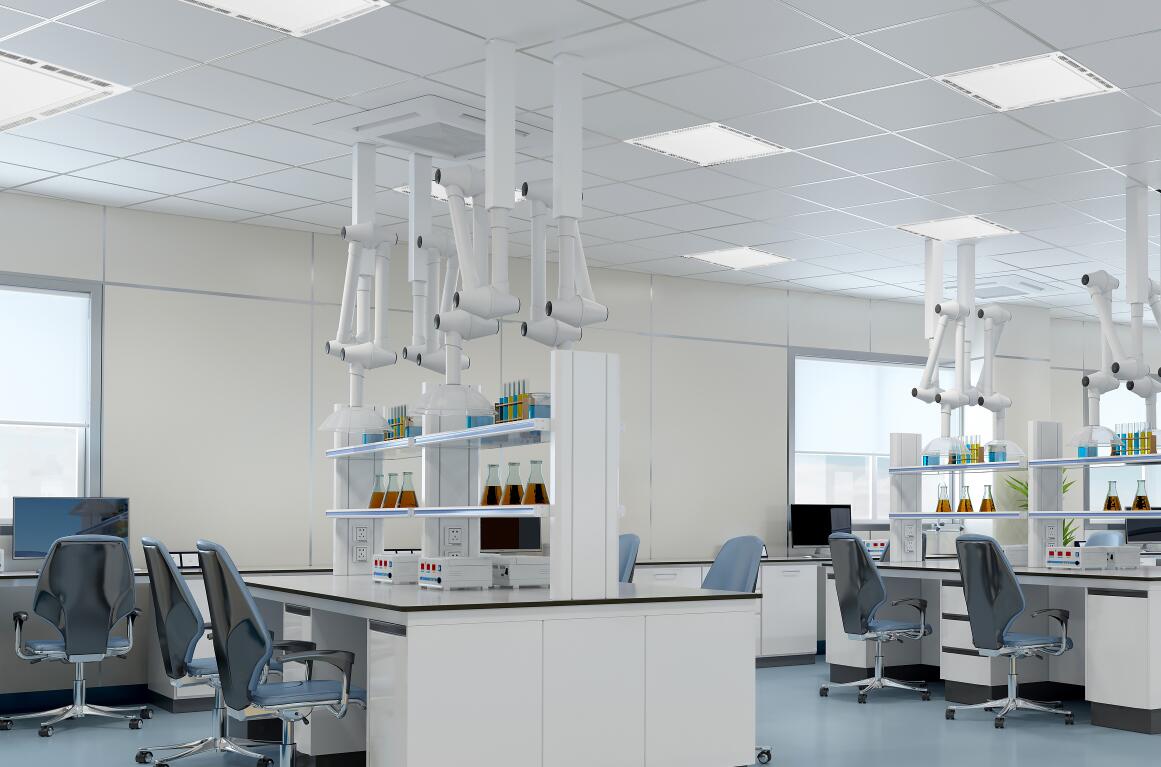

Applications
