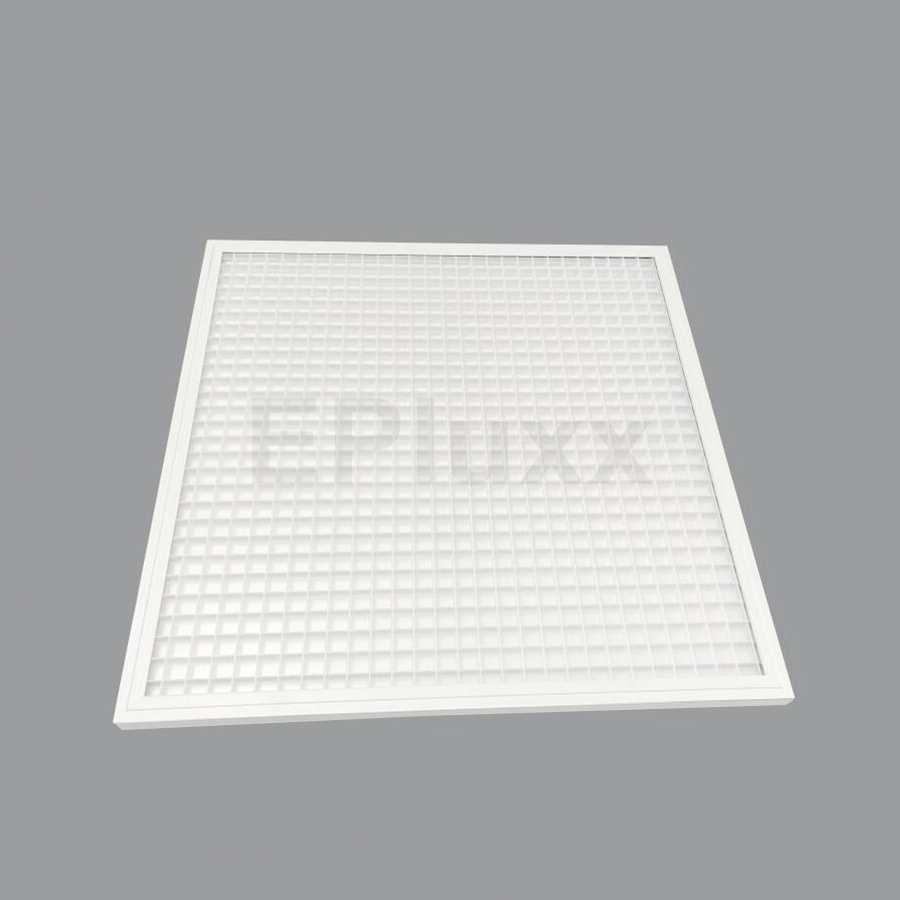

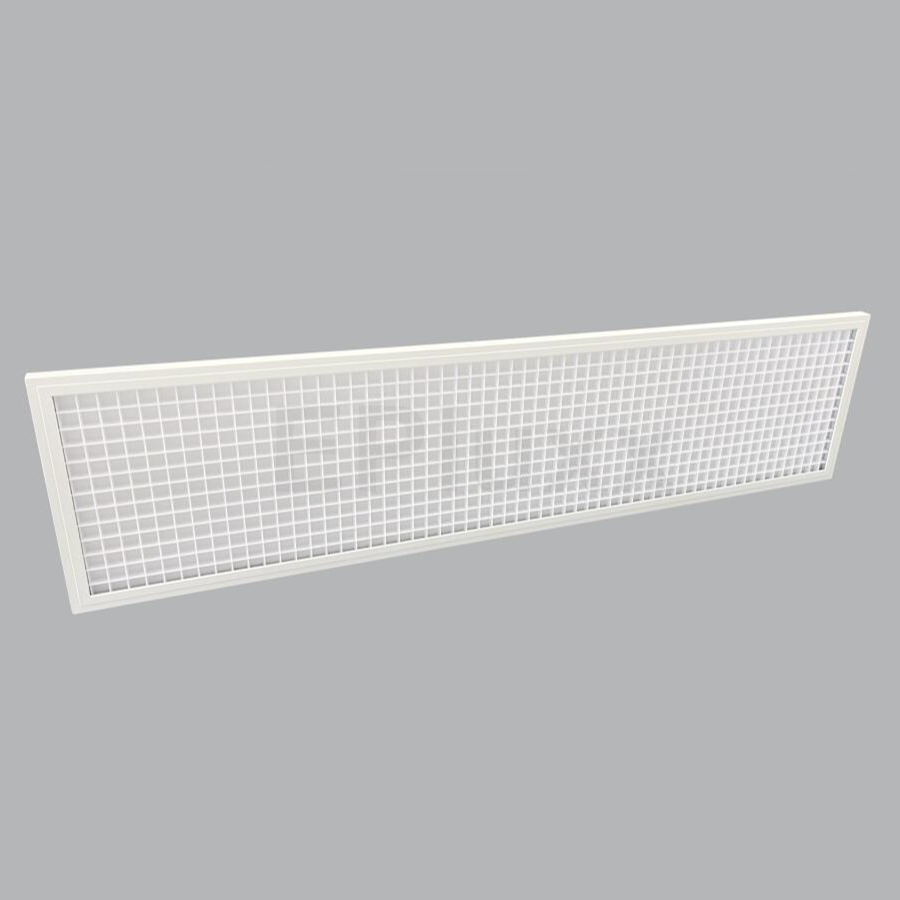

Classroom LED Panel Light

 Tips: Click to enlarge the picture

Specification

ItemDS-0312-36-C19DS-0606-36-C19
Power36W34W
Lighting Efficency80lm/w 80lm/w
Luminous Flux3000lm 3000lm
Dimension298*1198*45mm598*598*45mm
Installation TyeSuspending /    Embedded /
Surface mounted /
Suspending /    Embedded /
Surface mounted /
LED ChipEpistar  SMD2835Epistar SMD2835
DriverCE approved driverCE approved driver
Waterproof LevelIP44IP44
Beam Angle120°120°
Input VoltageAC200-240VAC200-240V
EdgingWhiteWhite
Impact ratingIK02IK02
Color Accuracy InitiallySDCM 4SDCM 4
CRI>90Ra  / R9>60>90Ra  / R9>60
Blue Light LevelRG0RG0
Anti-GlareUGR<19UGR<19
Color Temperature 5000K5000K
Power FactorPF>0.95PF>0.95
MeterialAluminum +ABS Grille Aluminum
Lifespan50,000hours50,000hours
Working Temperature-40℃-+40℃-40℃-+40℃
CertificateCE, RoHSCE, RoHS
Warranty 3 years 3 years
Light Emitting Mode Back-litBack-lit

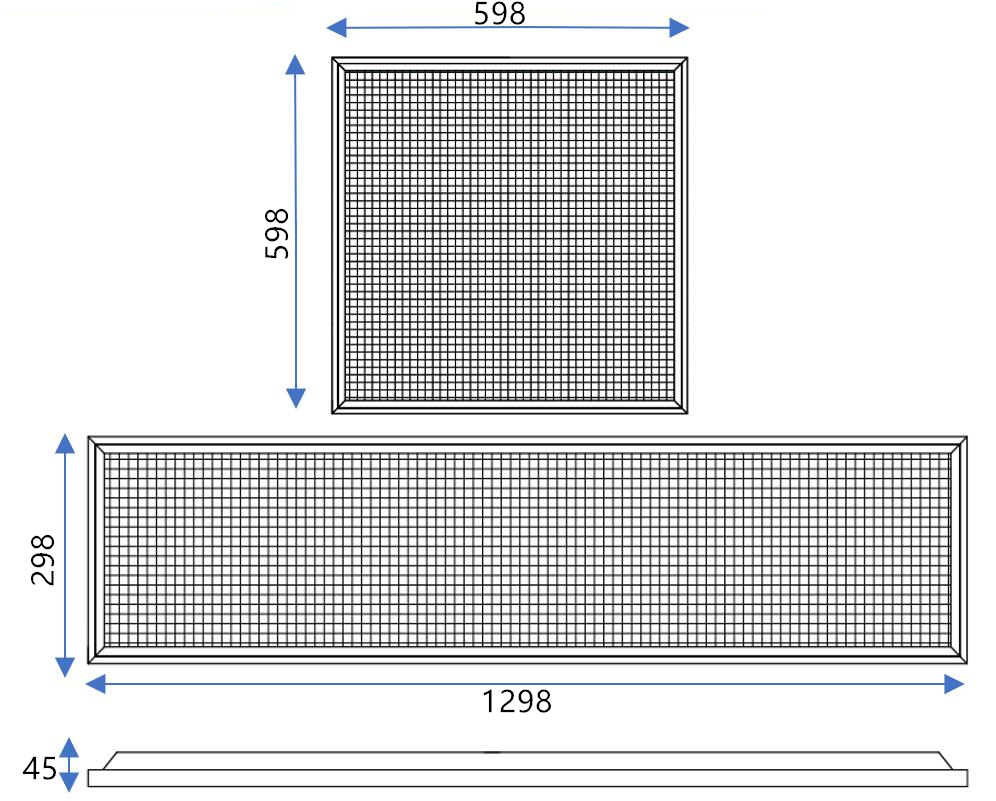

Dimension

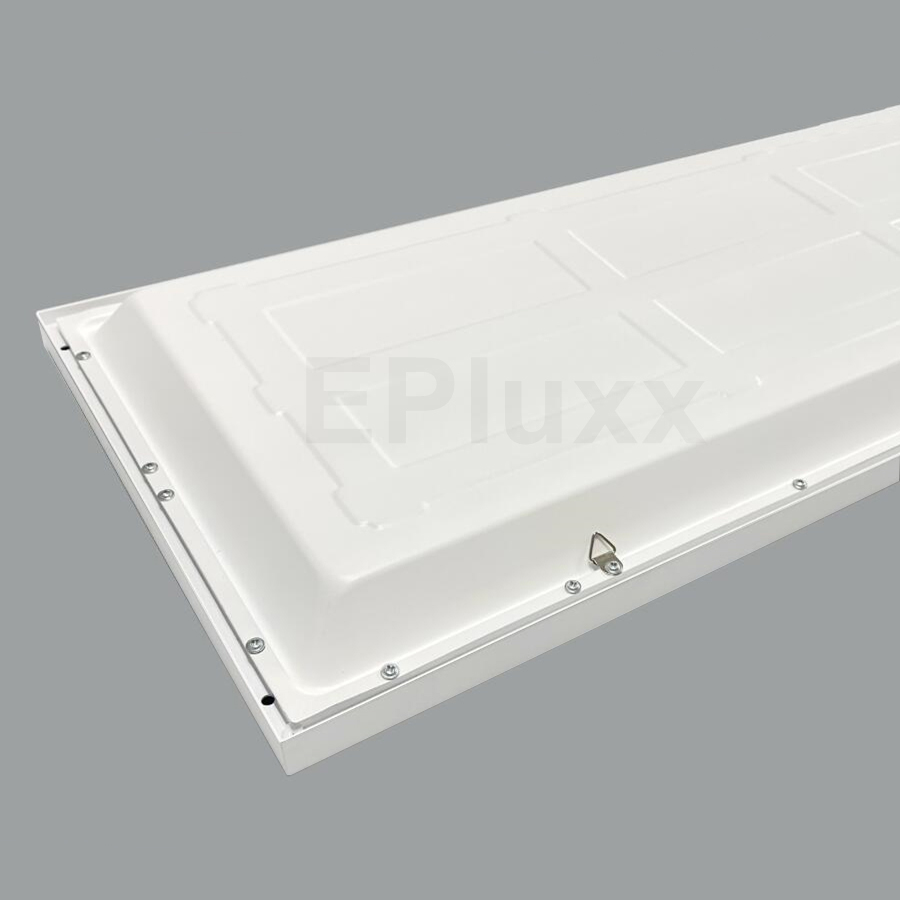

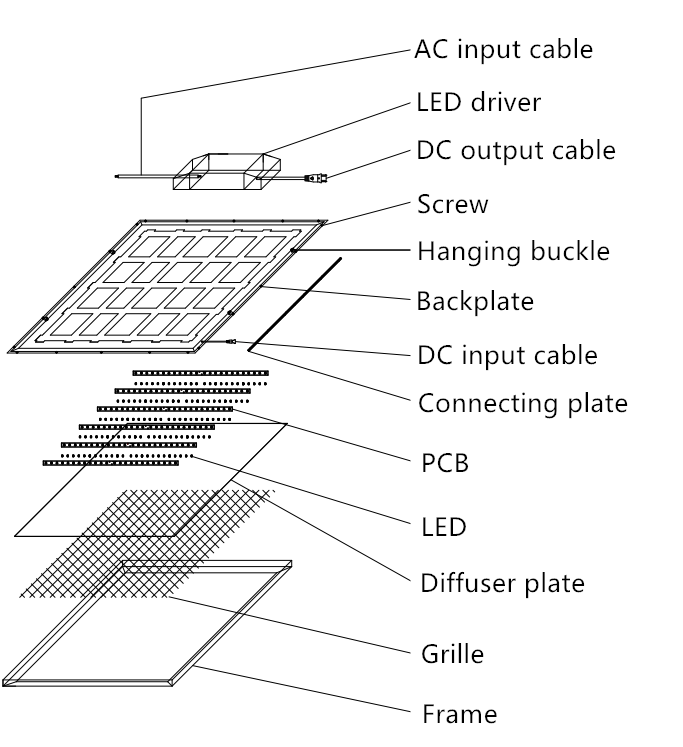

Lamp Structure



Features


1, Classroom LED Panel light is used high quality Epistar 2835 LED chip, color accuracy initially SDCM<4, LM-80,low light attenuation.

2, Blue light level is RG0, remove harmful blue light, protect students' eyes from damage.

3, EPluxx' educational LED panel light is with CRI >90Ra, highly restore graphic color.

4, High quality CE approved LED driver, constant current without stroboscopic, no vertigo, no interference, no noise, energy saving and long lifespan.

5, EPluxx's LED eye protection panel light is with the ABS grille, anti-glare UGR <19, has high permeability.

6, In accordance with the principle of Optics, and human visual effect design, relieve eye fatigue of teachers and students and improve their attention

7, The color temperature is designed to be 5000K in line with the noon sunlight. Make the classroom more bright and spacious

8, Conventional size 600* 600,  300*1200, simple and fashionable appearance, it is suitable for installation in any commercial public places.

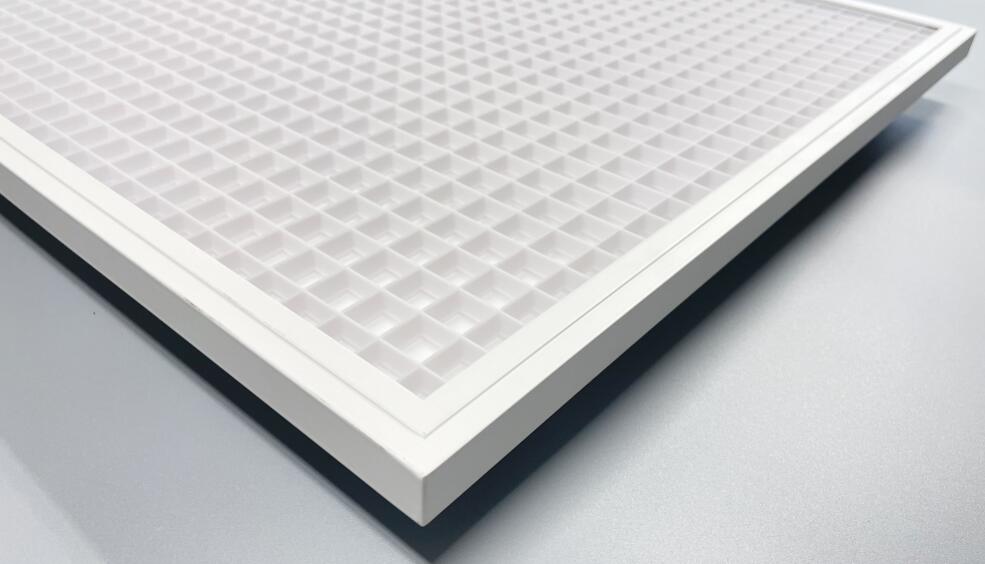

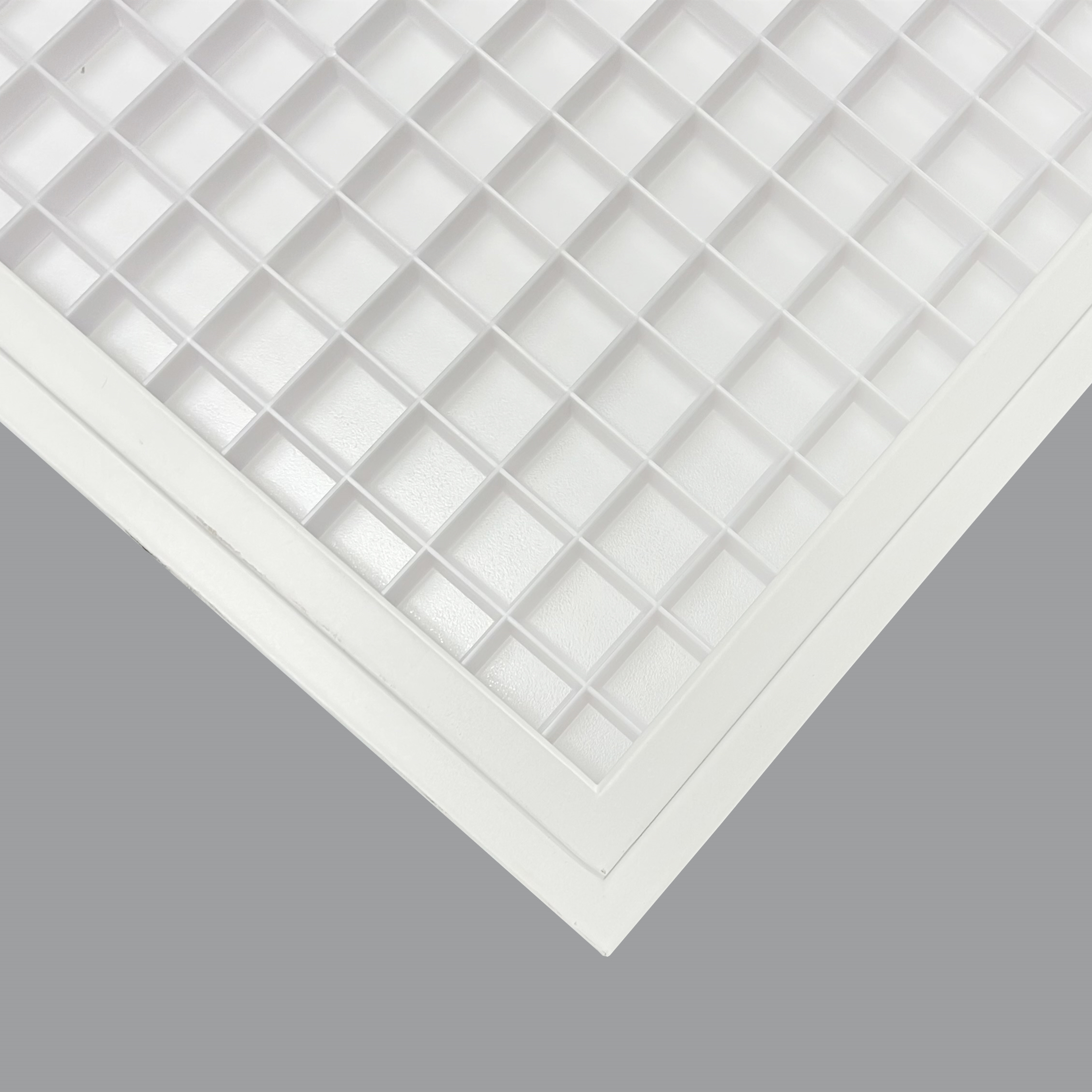

                                    Optical Grid Anti Glare

Acrylic light guide plate + grid light guide plate
Double layers anti glare protection
 UGR<19

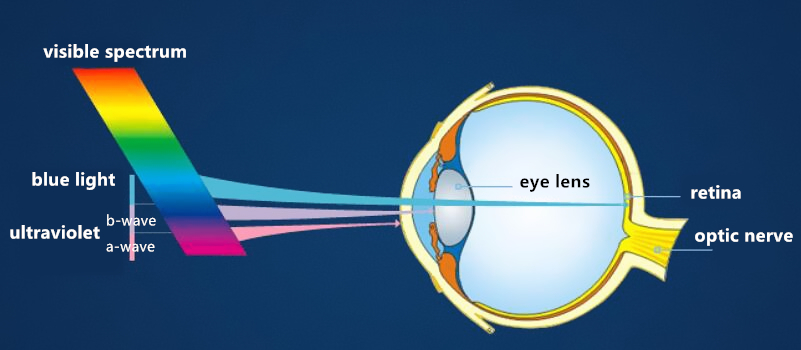

                                                           Eliminate Blue Light

RG0 blue light level
Better protection of the retina from blue light damage




                               High Color Rendering Index



CRI>90 Ra,  R9>60
Highly restore the original color of the object
Avoid color difference






                                      No Video Flash



High quality non stroboscopic constant current LED power supply,
PF > 0.9, efficient and stable

Avoid eye damage caused by strobe

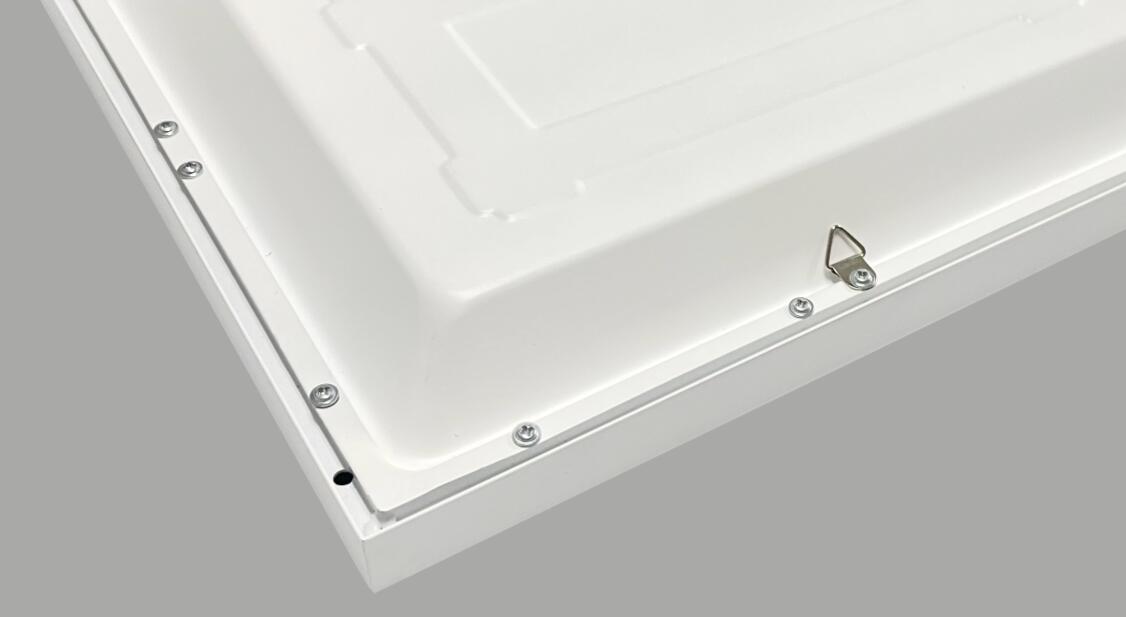

                                                                                      Integrated design


Surface spray treatment, smooth without scratches, easy to clean
Fine workmanship, close fitting, to prevent dust mosquitoes into the lamp

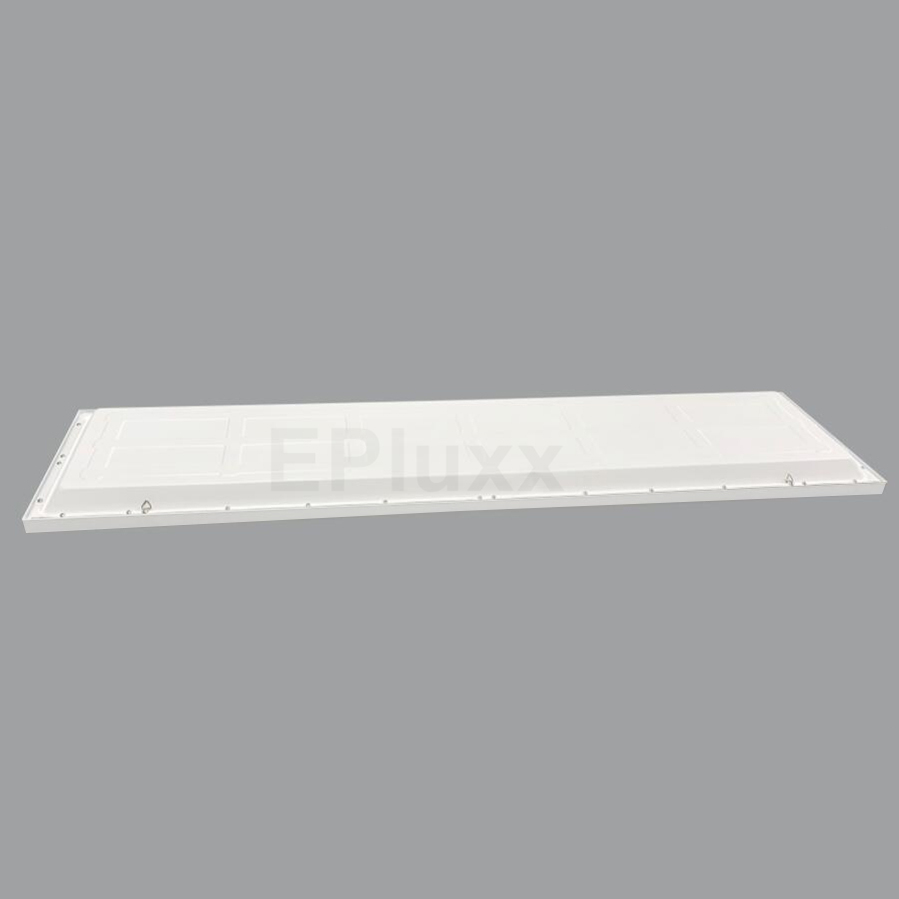

Metal back plate, better heat dissipation and safer







Application

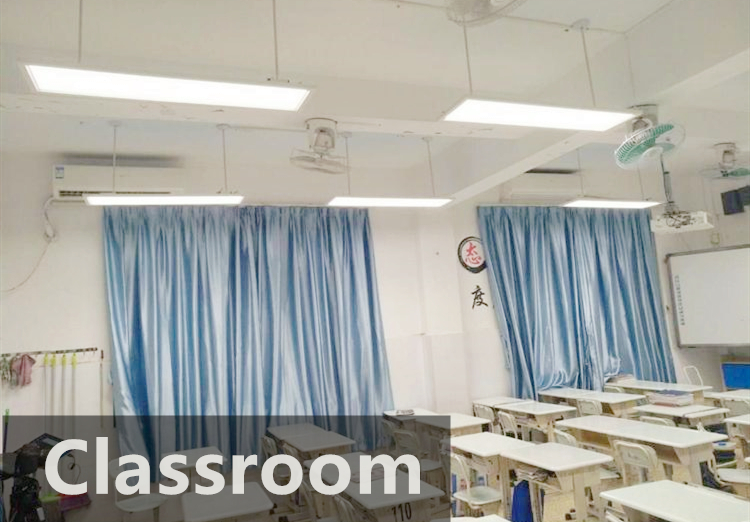

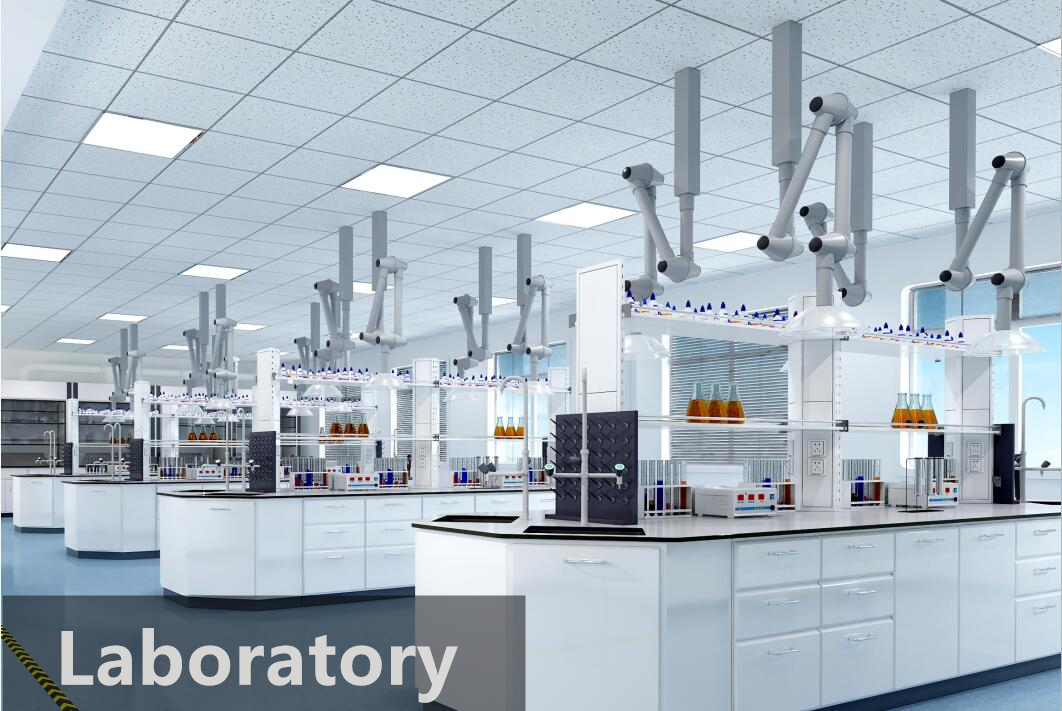

It is mainly used in classroom, library and laboratory.





Installation

(1) Embedded




(2) Ceiling Surface Mounted

(3) Suspending
