Specification
| Item | DS-0312-36B | DS-0606-36B |
| Power | 36W | 34W |
| Lighting Efficency | 100lm/w 、140lm/w | 100lm/w 、140lm/w |
| Luminous Flux | 3600lm 、 5040lm | 3600lm 、 5040lm |
| Dimension | 295*1195*32mm | 595*595*26mm |
| Installation Tye | Suspending / Embedded / Surface mounted / | Suspending / Embedded / Surface mounted / |
| LED Chip | 1W SMD2835 Sanan | 1W SMD2835 |
| LED QTY | 36pcs | 36pcs |
| Driver | CE approved OWN driver | CE approved OWN driver |
| Waterproof Level | IP44 | IP44 |
| Beam Angle | 120° | 120° |
| Input Voltage | AC200-240V | AC200-240V |
| Edging | White | White |
| Impact rating | IK02 | IK02 |
| Color Accuracy Initially | SDCM 4 | SDCM 4 |
| CRI | >80Ra | >80Ra |
| Anti-Glare | UGR<19 / UGR <22 | UGR<19 / UGR <22 |
| Color Temperature | 2800-6500K optional | 2800-6500K optional |
| Power Factor | PF>0.9 | PF>0.9 |
| Material | SPCC+Aluminum+PC | SPCC+Aluminum+PC |
| LED Lens | PMMA | PMMA |
| Lifespan | 50,000hours | 50,000hours |
| Working Temperature | -40℃-+40℃ | -40℃-+40℃ |
| Certificate | CE, RoHS | CE, RoHS |
| Warranty | 3 years | 3 years |
| Light Emitting Mode | Back-lit | Back-lit |

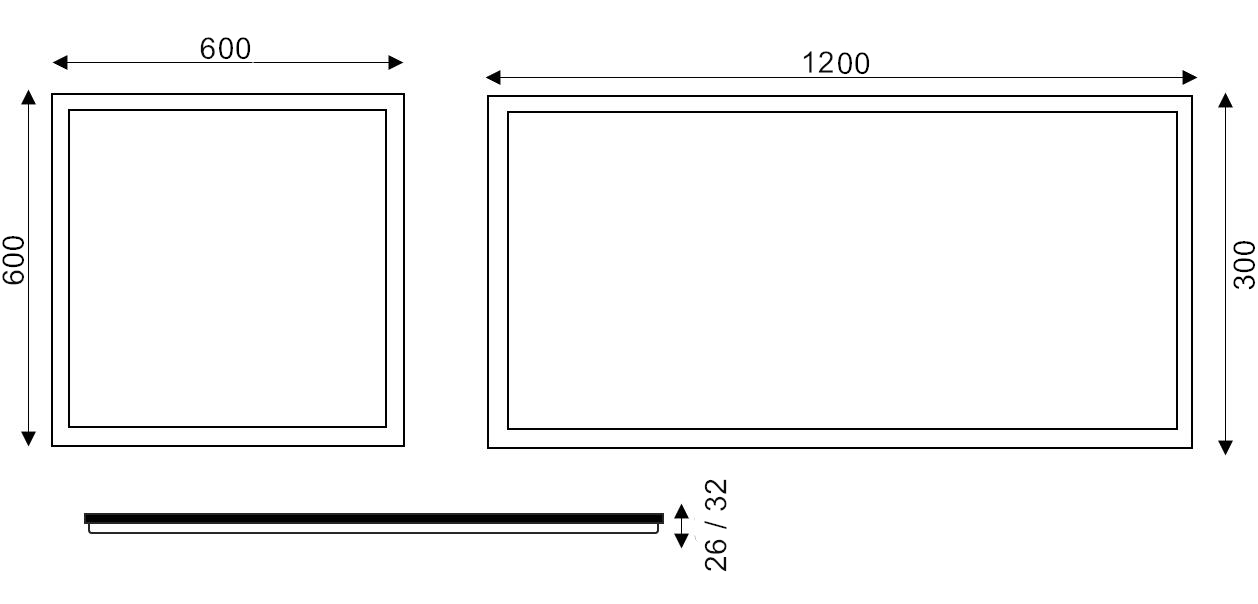

Dimension

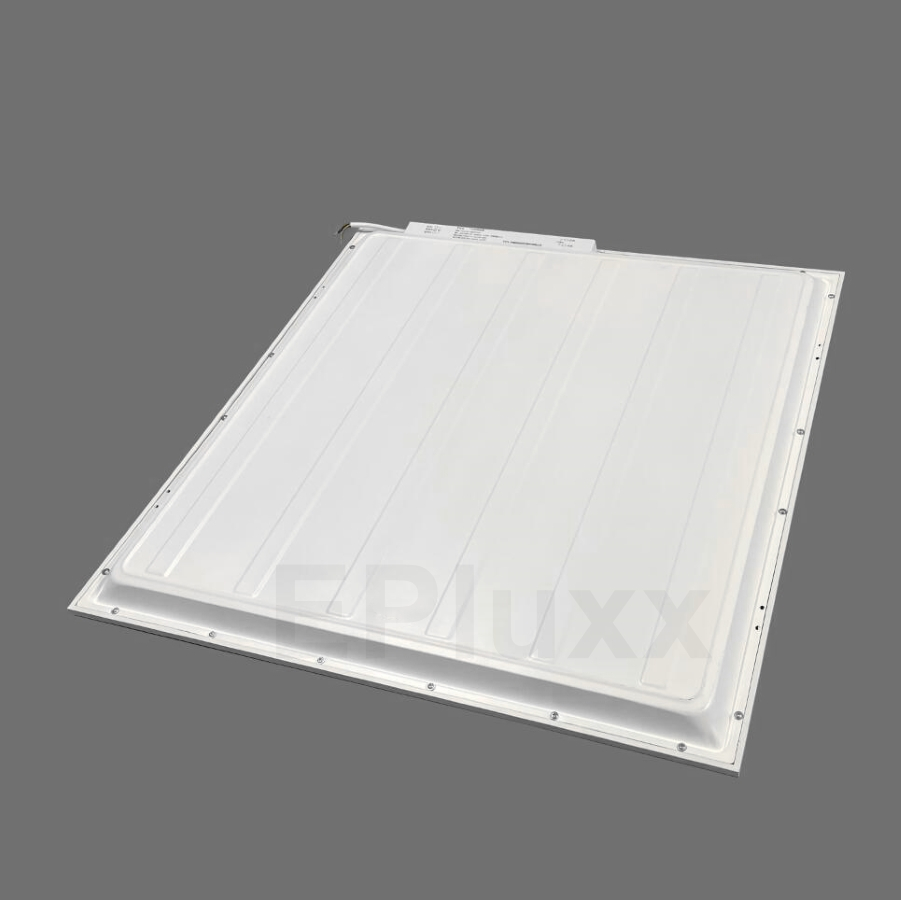

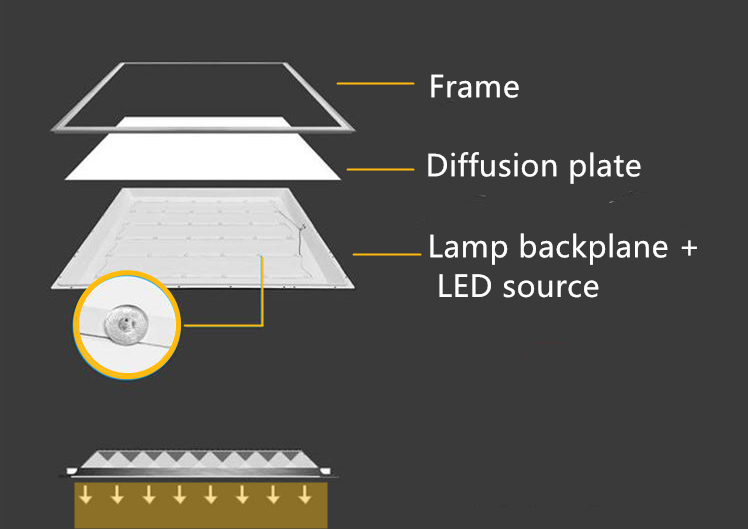

Lamp Structure
Features

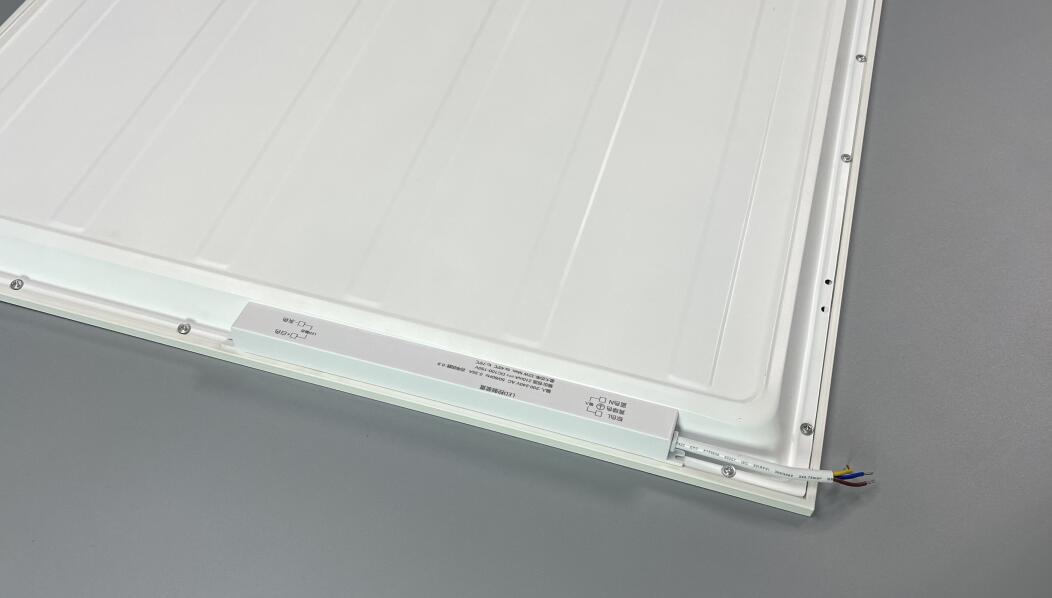

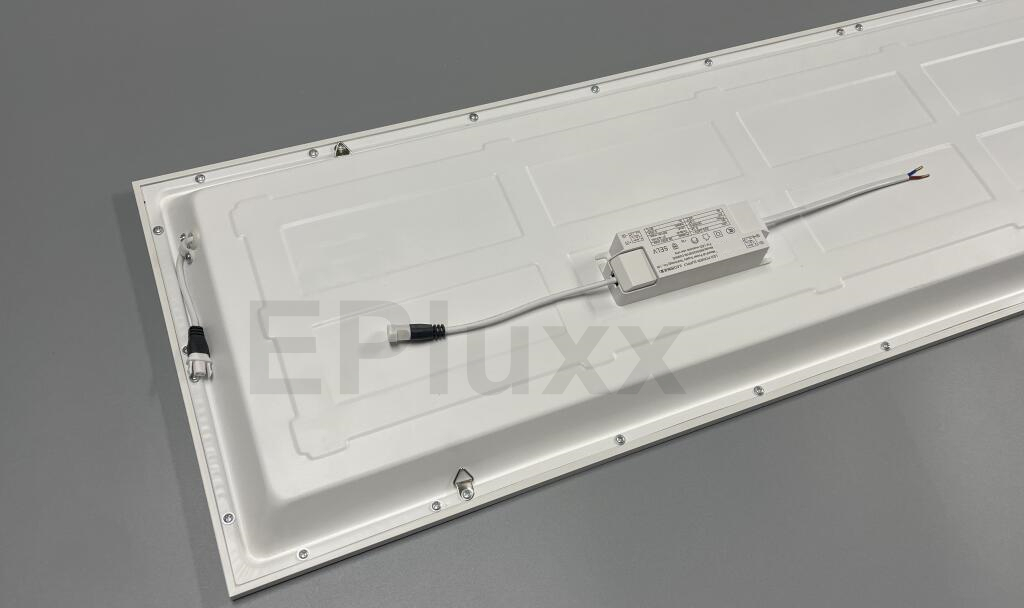

1, Back-lit LED Panel light is made of aluminum material, integrated structure, it can better avoid mosquito and dust into to the lamp. Oil-proof, water-proof, corrosion-resistant, easy to clean, excellent heat dissipation performance.

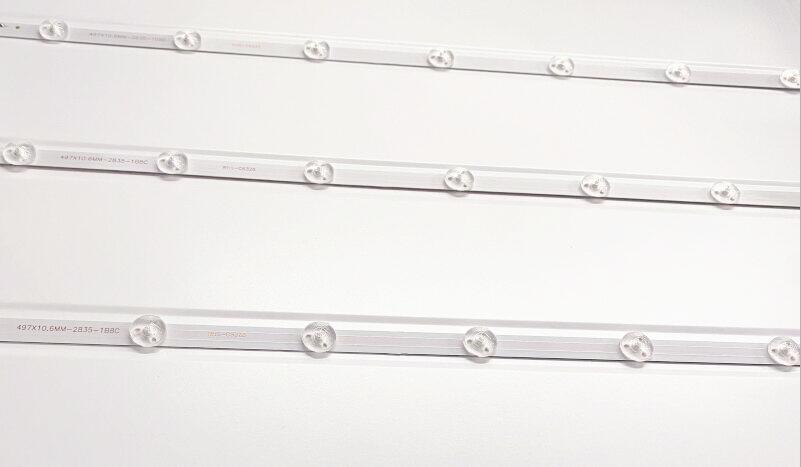

2, Using high quality Sanan 2835 chip, CRI>80Ra, the light efficiency of the whole lamp is 120lm/w. It can not only ensure efficient light output, but also better restore the true appearance of things
3, High quality resistance and capacitance components are selected for the driving power supply, which is moisture-proof and flame-retardant.
4, The driving scheme adopts constant current without visible stroboscopic. It can better protect the eyesight.
5, LM-80, impact rating IK02, color accuracy initially SDCM<4
6, Anti-glare UGR <19 back-lit LED panel light can be provided.
7, Quality control shall be implemented for each process, and each set of lamps shall be strictly tested. 24 hours of aging test shall be conducted before packaging.

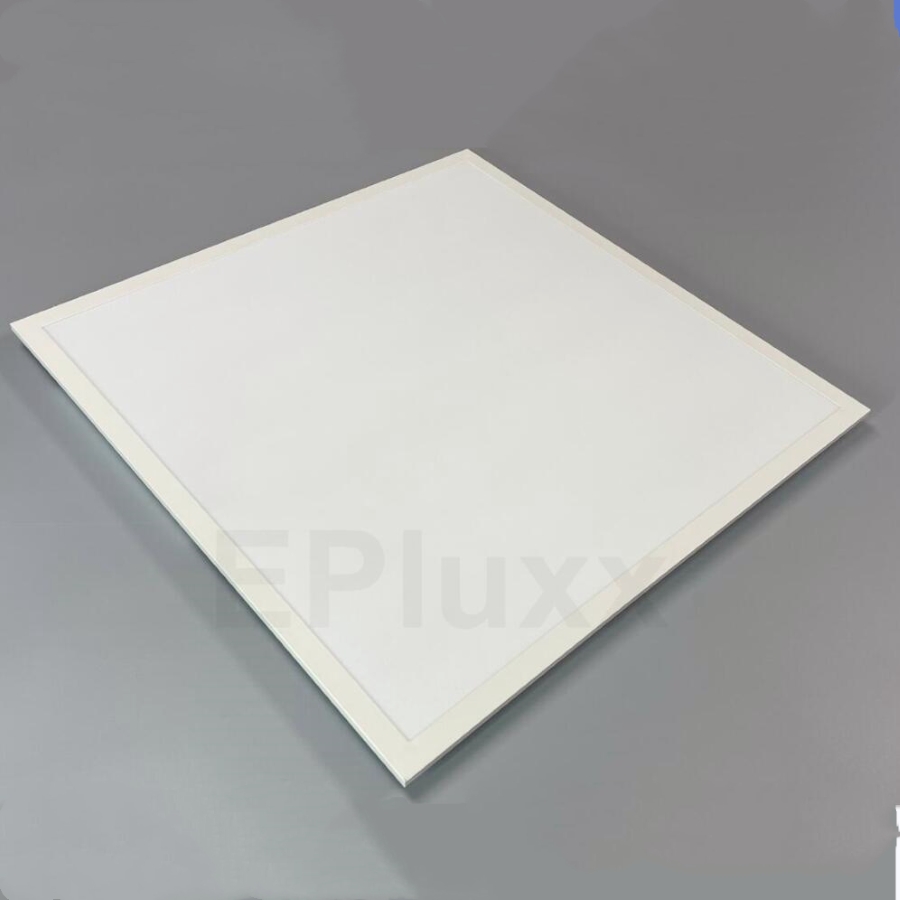

8, Conventional size 600* 600, 300*1200, simple and fashionable appearance, it is suitable for installation in any commercial public places.

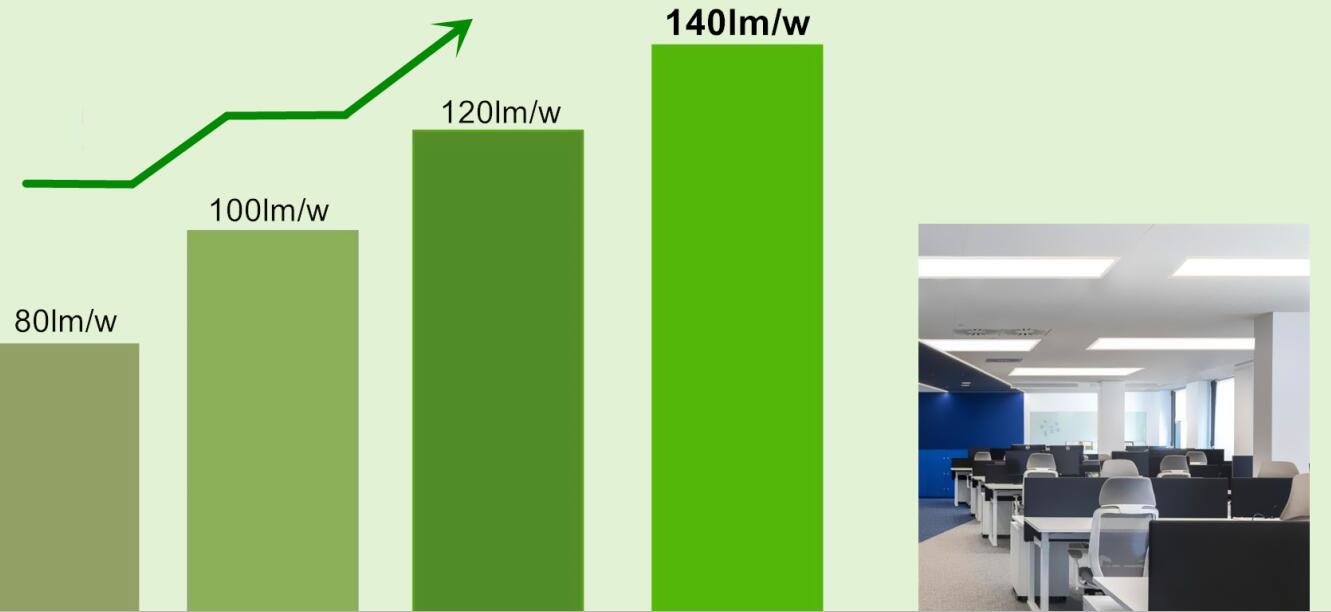

140lm/w super high light efficiency
Reduce consumption and save energy
Ultra low color difference
Anti-glare UGR<19

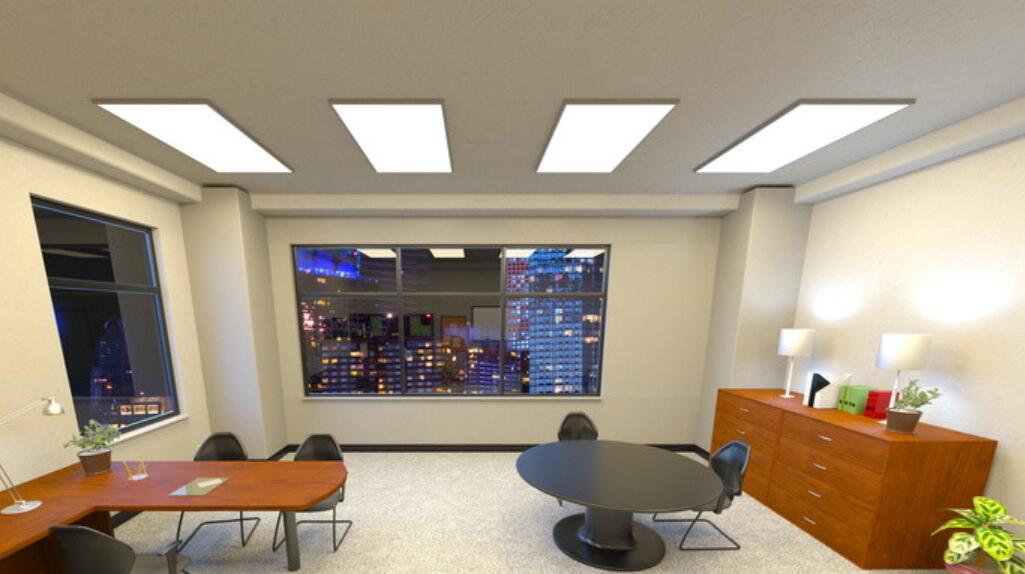

Uniform light creates comfortable office environment

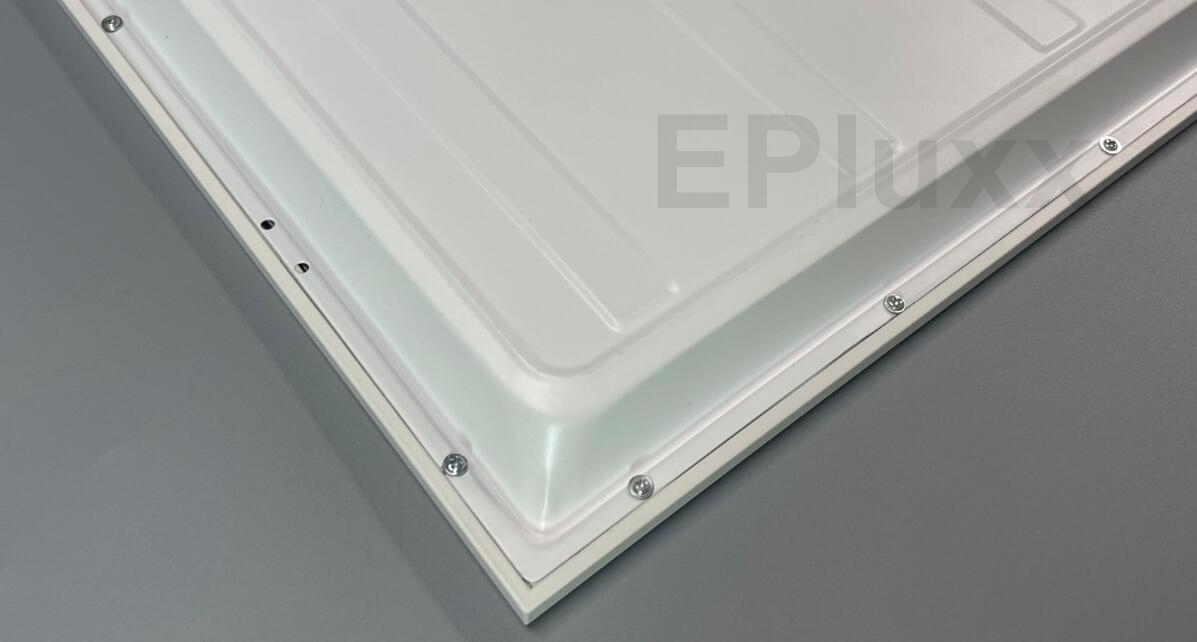

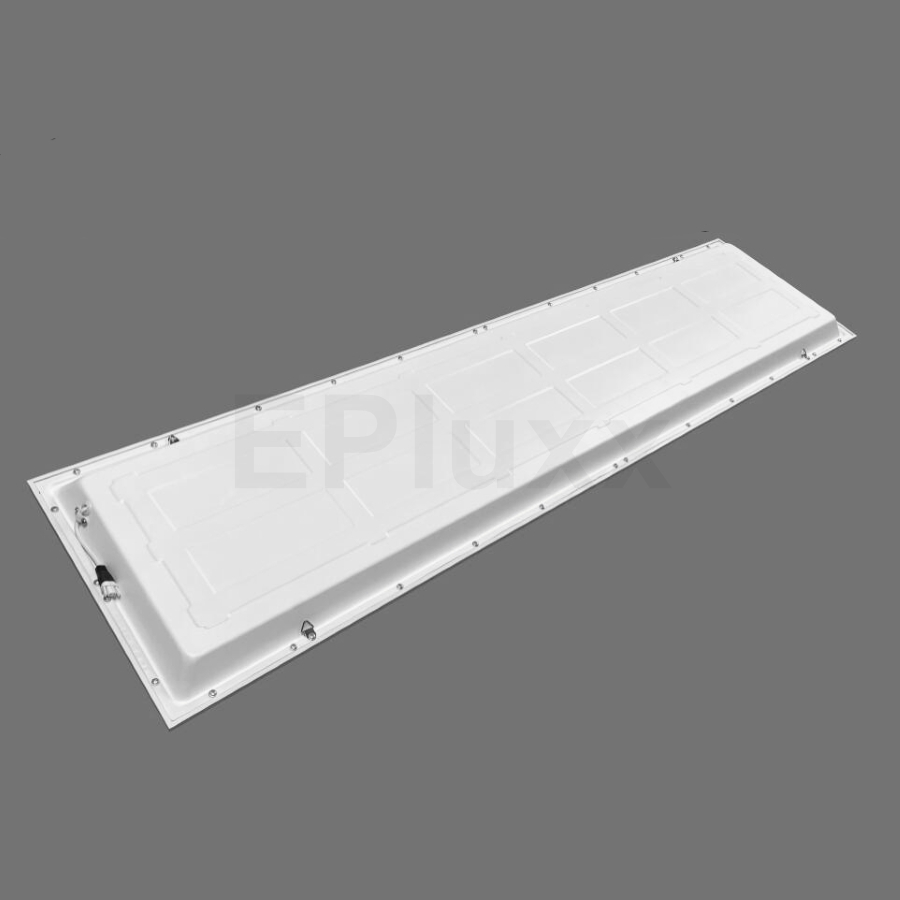

Integrated Structure
High Color Rendering index & Restore True Color
CRI > 80Ra
Helpful to judge the freshness and maturity of food
Better judge the matching effect of makeup and clothing

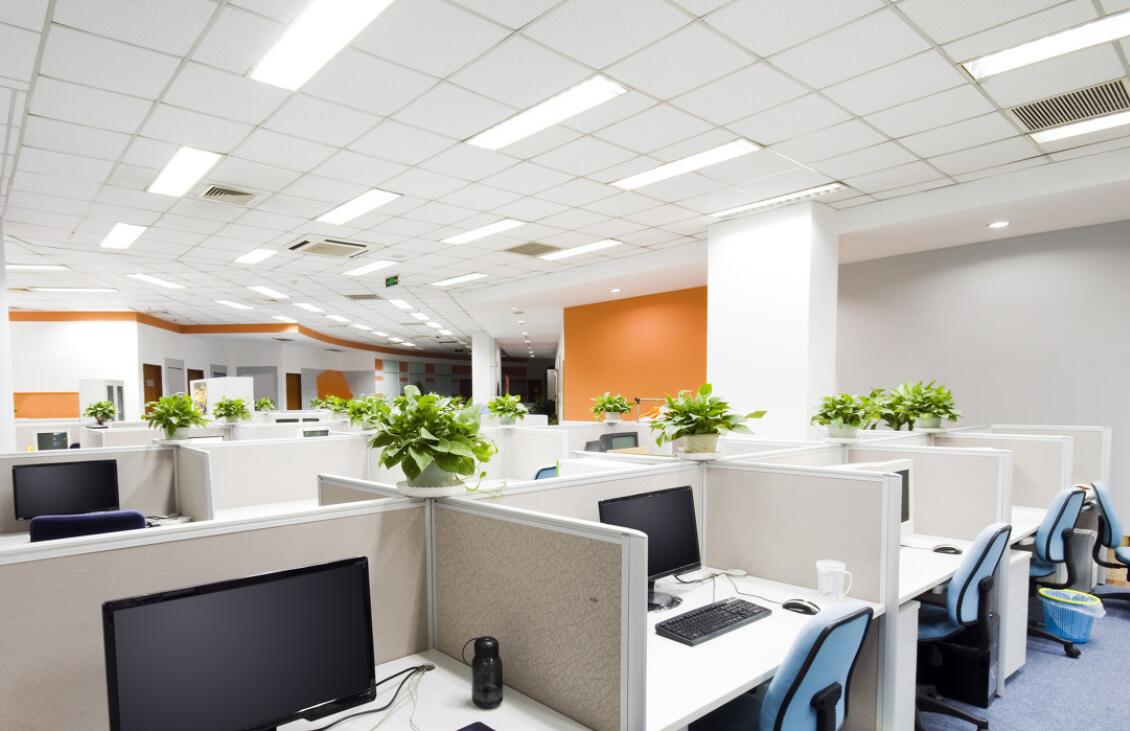

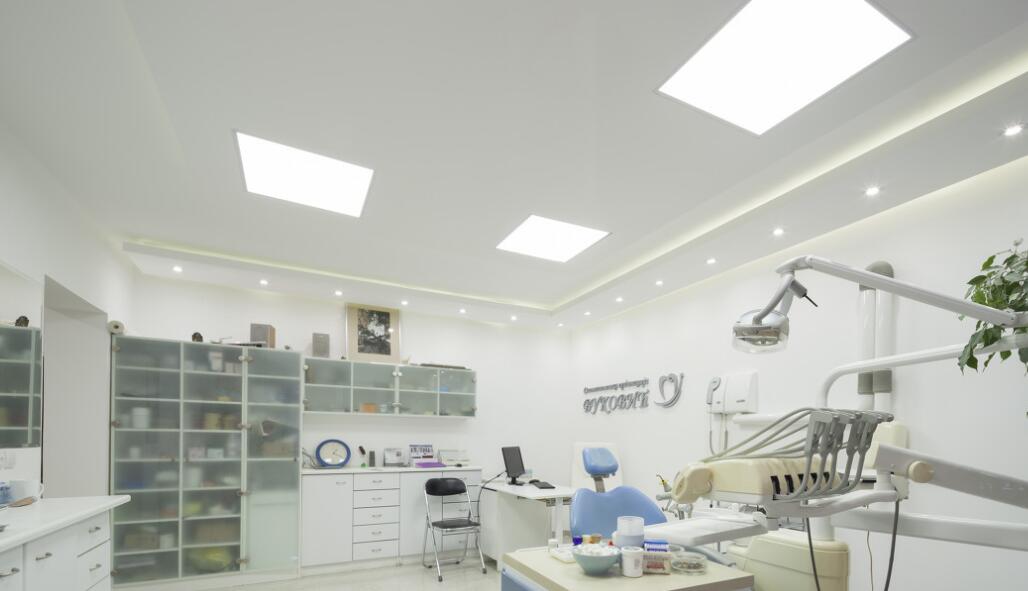

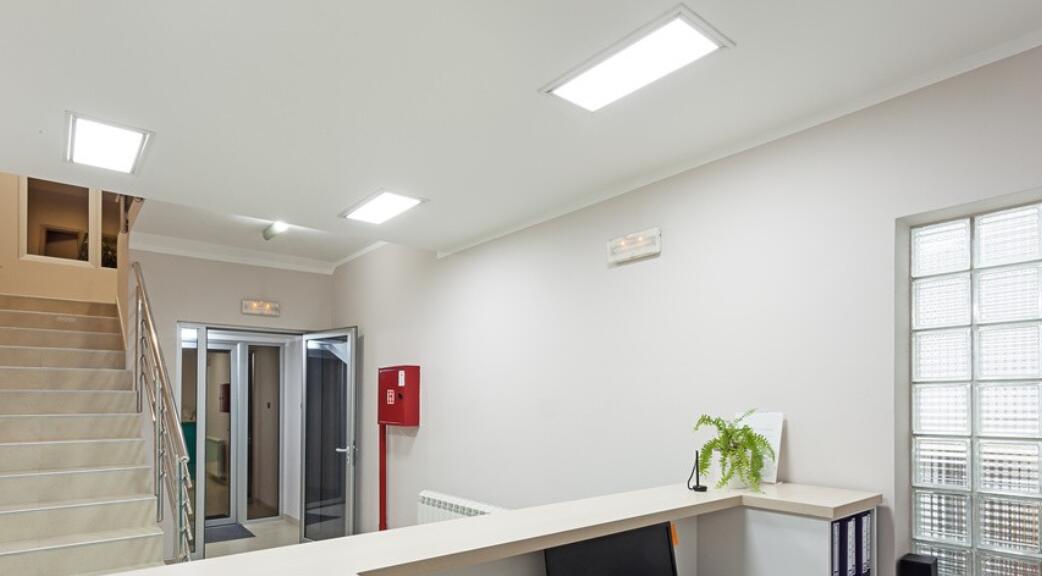

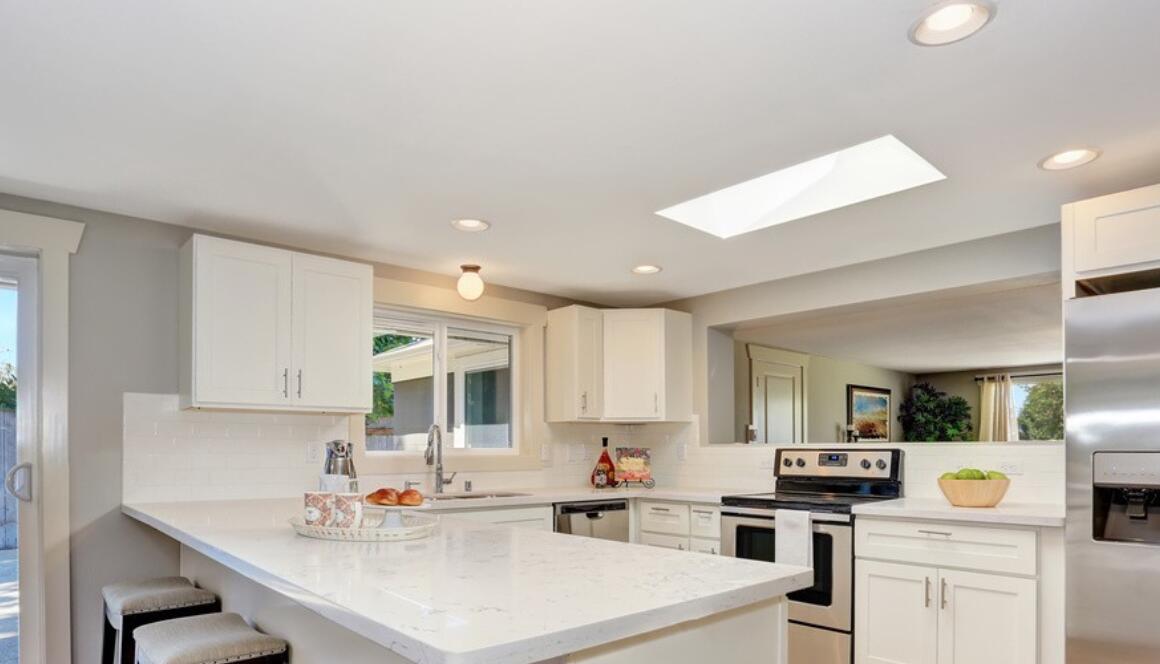

Application
Hotels, Hospitals, Commercial complexes, Meeting rooms, Exhibition halls,
Factories, Offices, Buildings, Schools, Indoor gym courts,
Subway stations, Underground passageways
Installation
(1) Embedded
(2) Ceiling Surface Mounted
(3) Suspending
